> Ride-on Mowers > Scooter > OHV > Scooter OHV 3 > Upper frame, Steering

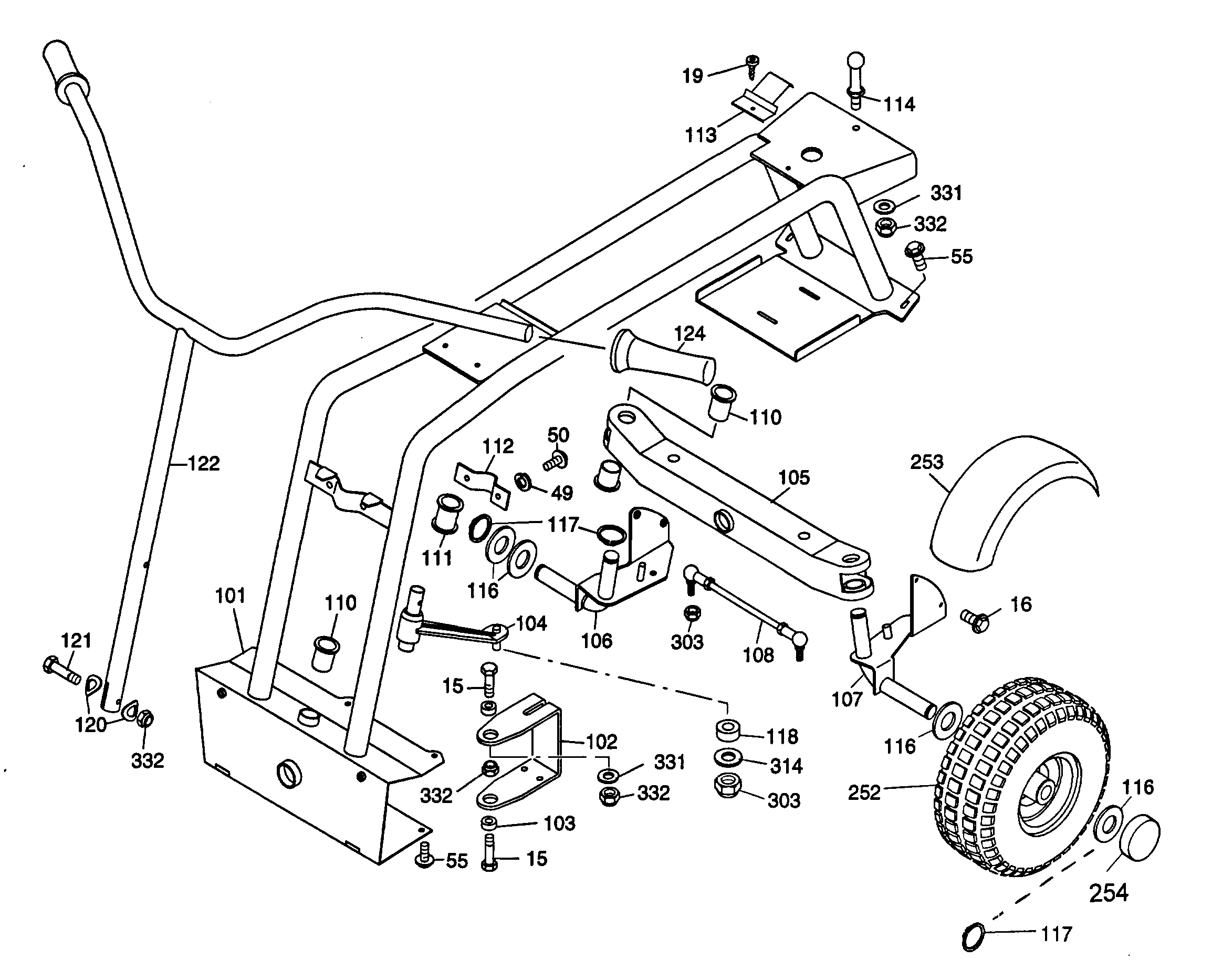

Spare Parts Lists for Wolf Ride-on Mowers Upper frame, Steering




spare parts list


pos.decriptionspare part number
15Screw0010 365
16Screw0010 893
19Screw0015 684
49Washer Spring0017 908
50Hex. Screw M6X10 Din 9330010 373
55Screw0010 892
101Upper Frame6150 010
102Lever6150 492
103Bush, Flanged6150 473
104Starter Dog6150 077
105Front Axle Complete With Bushes6150 910
106Front wheel axle, right6150 020
107Front wheel axle, left6150 021
108Track Rod Assembly6150 035
110Flanged Bush6150 316
111Flanged Bush6150 319
112Clamp Bracket6150 431
113Coach Spring6150 462
114Seat Pintle6150 457
116Washer0017 113
117Quick Fixing Clip0020 018
118Steering Bush6150 474
120Friction Disk6150 182
121Screw0010 301
122Steering column assembly6150 032
122Scooter Handle Bar6990 032
124Handle6150 305
252Front Wheel 'Kenda' Or 'Maxtrac'6150 040
252Front wheel, Cheng Shin6150 940
***Inner Tube6150 324
***Tyre Only6150 325
***Tyre Cheng Shin6150 326
253Mudguard6150 304
254Cover6150 328
303Hex. Nut0016 312
314Washer0017 291
331Washer0017 289
332Nut0016 311
