Spare Parts Lists for Wolf Reel-mowers VD 28 S

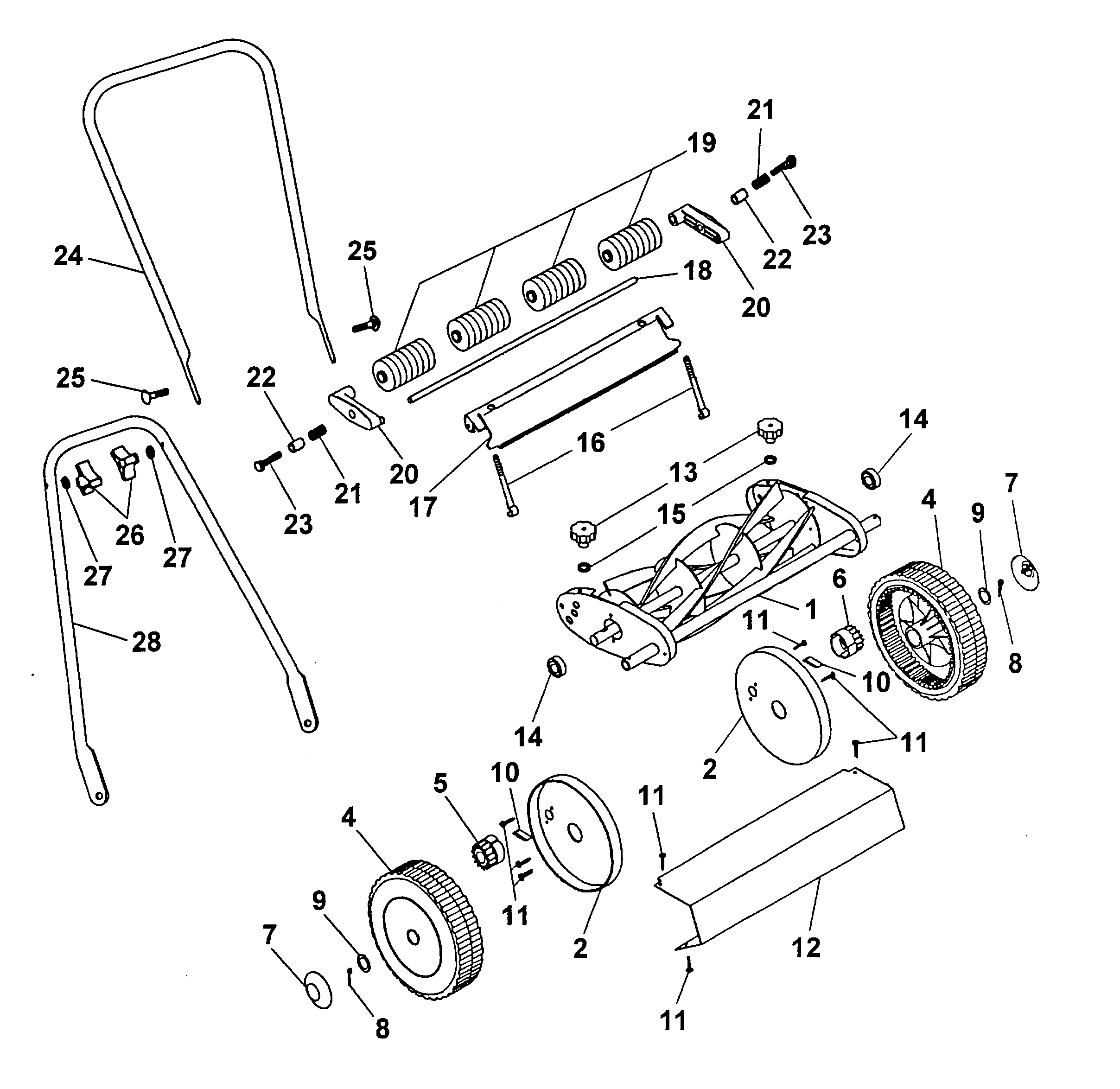

spare parts list


pos.decriptionspare part number
2Cover4037 104
4Tyre4037 105
5Pinion4032 118
6Pinion, Left4032 102
7Hub Cap4037 106
8Washer4032 187
9Washer4032 173
10Pin4032 111
11Screw4032 168
12Cover4037 103
13Handwheel4032 402
14Bearing4032 185
15Washer4038 101
16Bolt4032 125
17Cover4037 101
18Axle4032 186
19Roll4032 108
20Lever4032 101
