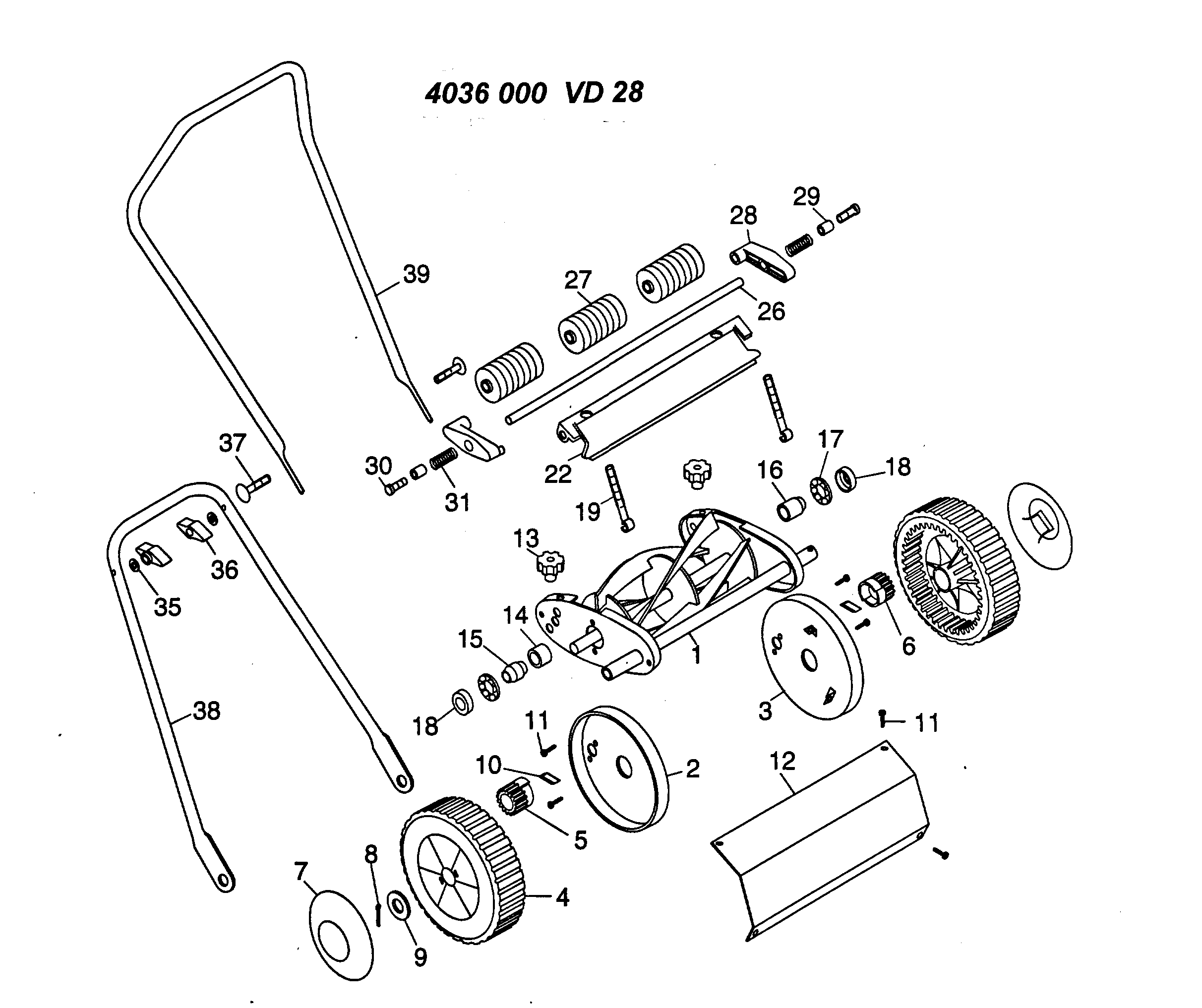

Spare Parts Lists for Wolf Reel-mowers VD 28
pos.
decription
spare part number
1
Shaft
****
2
Cover
4032 132
3
Cover
4032 131
4
Tyre
4032 123
5
Pinion
4032 118
6
Pinion
4032 507
7
Hub Cap
4032 116
8
Washer
4032 187
9
Washer
4032 173
10
Pin
4032 508
11
Screw
4032 168
12
Cover
4032 303
13
Handwheel
4032 126
14
Spring
4032 110
15
Cone
4032 106
16
Cone
4032 502
17
Ring
4032 176
18
Cover
4032 504
19
Bolt
4032 125
22
Cover
4032 302
26
Axle
4032 186
27
Roll
4032 201
28
Lever(Replaces 6930506)
4032 202
29
Spring
4032 204
30
Screw
4032 178
31
Spacing Tube
4032 127
35
Washer
4032 172
36
Handwheel
4032 166
37
Screw
4032 188
38
Lower Handlebar
4032 196
39
Upper Handlebar
4032 121
****
Grass Collector
4084 005
