Spare Parts Lists for Wolf Reel-mowers VD 38

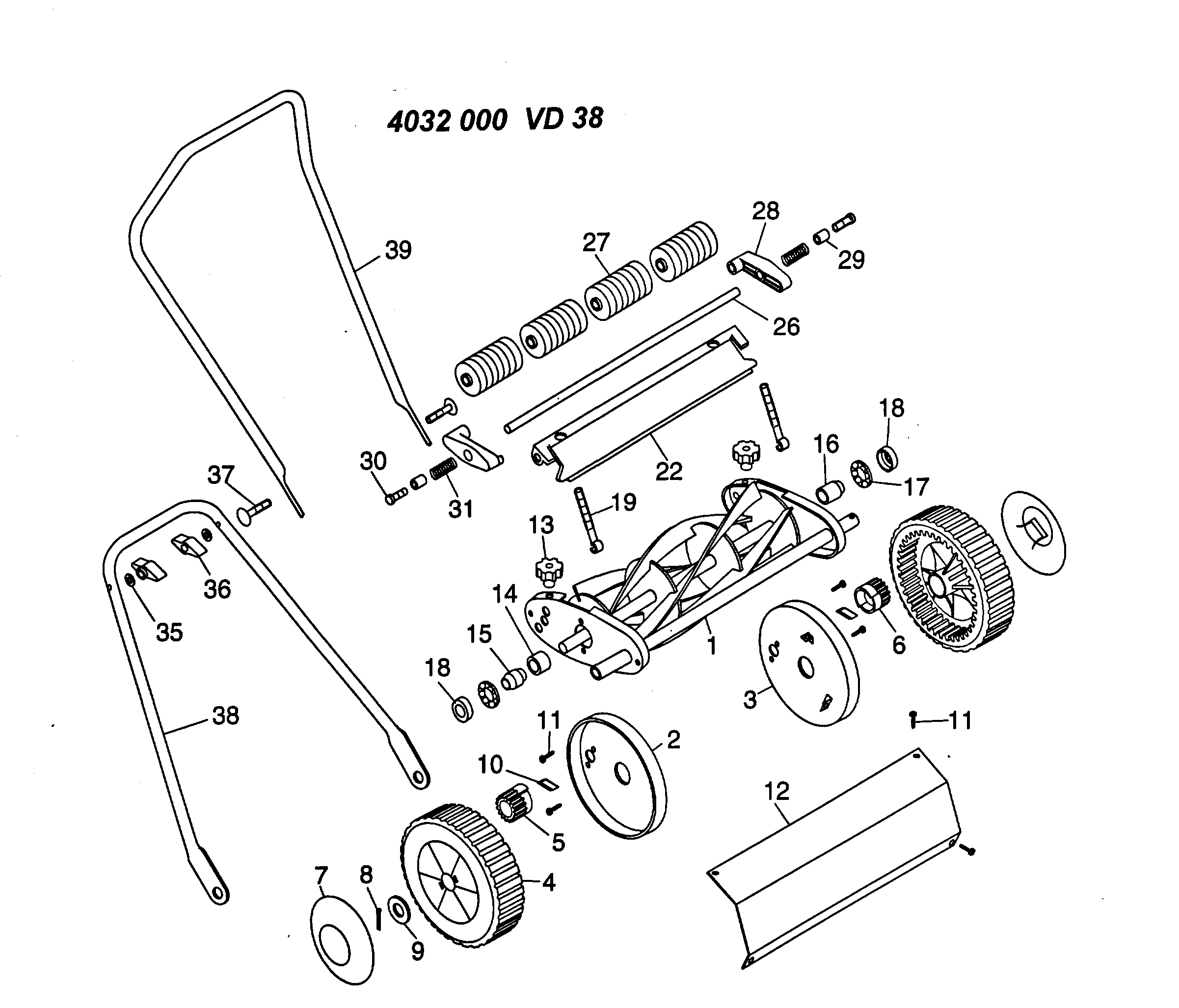

spare parts list


pos.decriptionspare part number
1Shaft****
2Cover4032 132
3Cover4032 131
4Tyre4032 123
5Pinion4032 118
6Pinion4032 507
7Hub Cap4032 116
8Washer4032 187
9Washer4032 173
10Pin4032 111
11Screw4032 168
12Branch Screen4032 128
13Handwheel4032 126
14Spring4032 110
15Cone4032 106
16Cone4032 105
17Ring4032 176
18Cover4032 504
19Bolt4032 125
22Blade4032 124
26Kit-Choke Shaft4032 120
27Roll4032 108
28Lever4032 101
29Spacing Tube4032 127
30Screw4032 178
31Spring4032 109
35Washer4032 189
36Handwheel4032 166
37Screw4032 188
38Lower Handlebar4032 104
39Upper Handlebar4032 121
****Grass Collector4084 000
