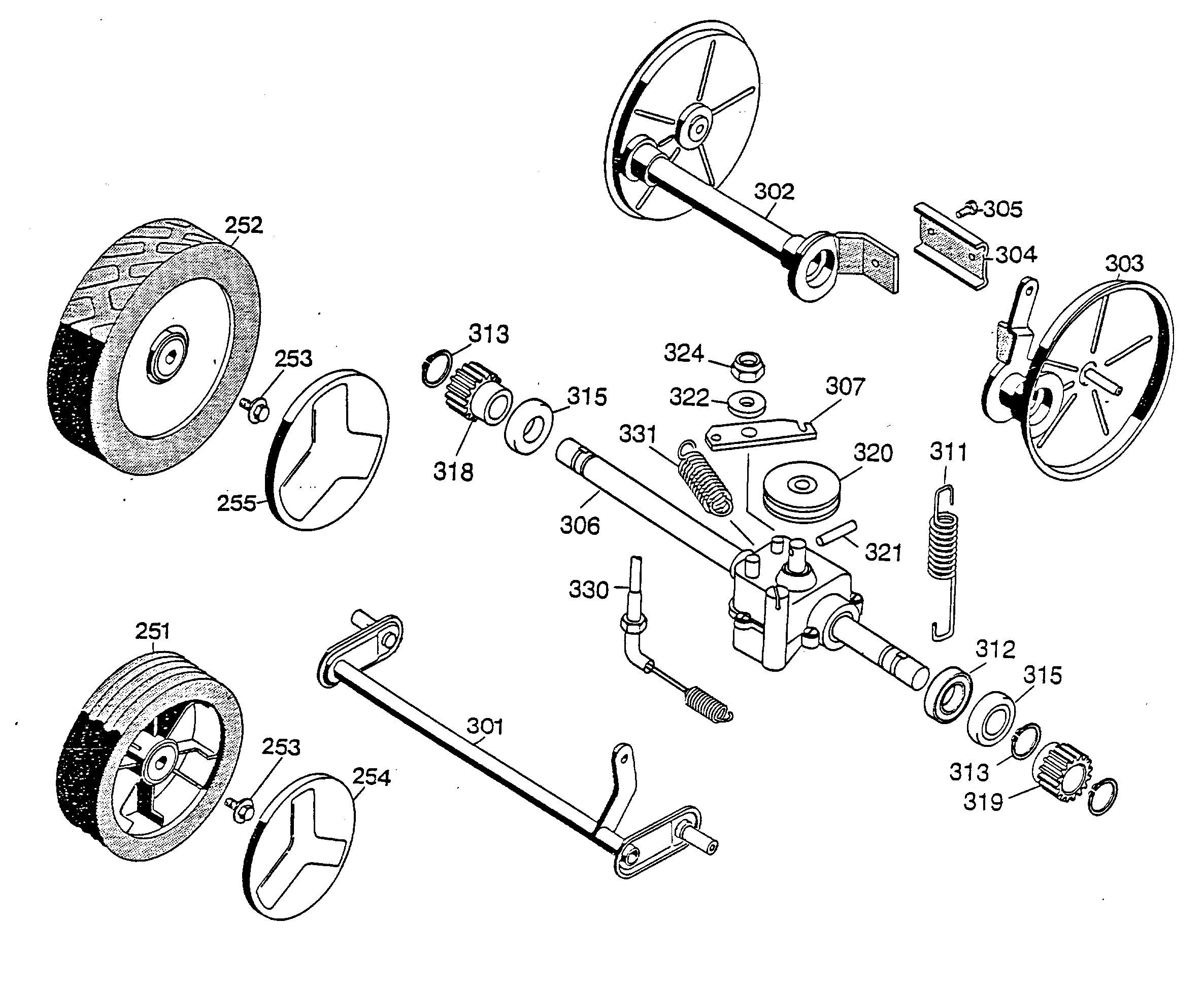

Spare Parts Lists for Wolf Mowers Wheels, Axle




spare parts list


pos.decriptionspare part number
251Wheel 170 Mm Dia.6340 050
251Wheel ø 170 mm6440 050
252Wheel 200 Mm Dia.6340 051
252Wheel, 200 Mm Dia.6420 061
252Wheel ø 200 mm6440 051
253Screw0010 893
254Cover ø 170 mm6340 511
255Cover6340 512
***Bearing6340 516
301Axle4740 030
***Drive axle4765 060
***Drive axle4765 061
302Axle Half4725 022
303Axle Half4725 023
304Clamp6420 507
305Screw0010 893
306Gear1097 000
307Lever1097 200
311Tension Spring4725 108
312Bearing0023 147
313Circlip0020 010
315Distance Bush4725 105
318Pinion6420 065
319Pinion6420 066
330Bowden Wire Driving4725 054
331Spring1097 205
124Board4947 061
125Cable4947 122
126Screw0012 863
127Washer0017 880
128Hex. Nut0016 310
140Screw0012 890
141Screw0012 630
142Washer Spring0017 909
143Screw0011 344
144Nut0016 409
145Washer Spring0017 908
146Screw0012 610
151Motor1055 060
300Battery Charger (6.42Bai)4942 072
***Boost charger SLG 2004946 070
