Wolf-Garten S 5300 A 12A-PO5M650 (2015) Handle Spareparts

UPPER HANDLE

Article Number:
749-05082637
Pos:
13
DINNORM:
749-05082637
Modell Year:
Expert 530 A / 2014 S 5300 A / 2015
no longer available

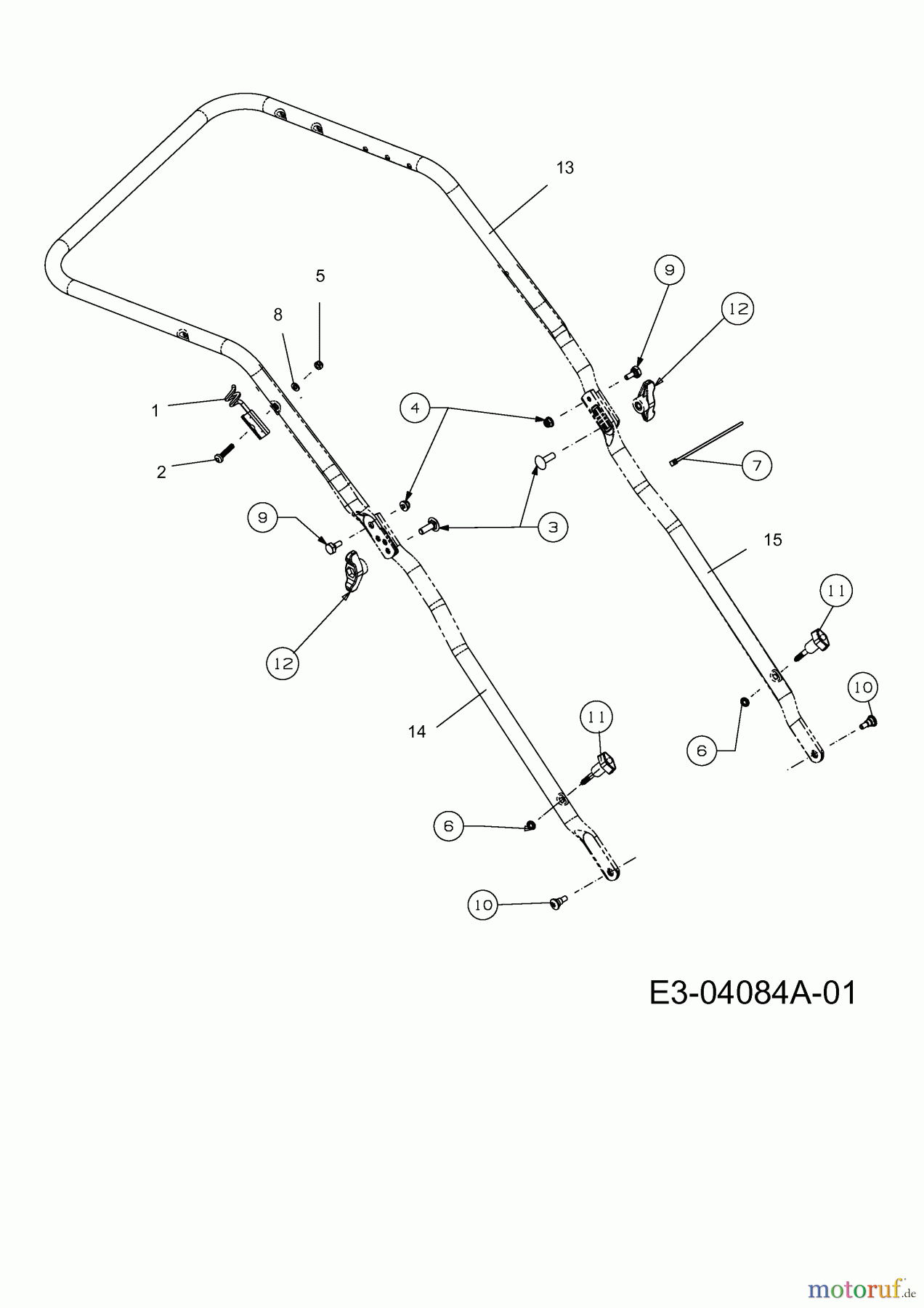

Wolf-Garten Petrol mower self propelled S 5300 A 12A-PO5M650 (2015) Handle
PosArticle NumberDescription
1 Wolf-Garten GDE ASM:ROPE647-04247GDE ASM:ROPE
2 710-04283SCR:M6-1:30.00 LG:DIN 7985
3 Wolf-Garten SCR:CRG:5/16-18:1.00:GR5710-04998SCR:CRG:5/16-18:1.00:GR5
4 Wolf-Garten NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
5 712-0691NUT:HEXLK:M6-1:NYLON:DIN 985
6 726-0233NUT:PUSH:.25 ID X .50 OD
7 726-04055CBL:TIE:3.6 mm x 140 mm
8 Wolf-Garten WASH: FLAT: 6.4x12x1.6736-0668WASH: FLAT: 6.4x12x1.6
9 Wolf-Garten SCR:SHLDR:.375 x.148x1/4-20738-04419ASCR:SHLDR:.375 x.148x1/4-20
10 Wolf-Garten SHLT.-SCREW:.450 X.188 X1/4-20738-05010ASHLT.-SCREW:.450 X.188 X1/4-20
11 720-05041
12 Wolf-Garten WING KNOB720-04122WING KNOB
13 749-05082637UPPER HANDLE
14 749-05158637COLUMN TUBE RIGHT
15 749-05159637COLUMN TUBE LEFT
