Wolf-Garten UV 35 B 3635000 (2017) Belt, Cutter block, Engine Spareparts

SCREW

Note: This article is 6 times installed in the device, the price is per piece!
Article Number:
0010681
Pos:
210
DINNORM:
0010681
Modell Year:
UV 35 B / 2017
2.32 €
for EU Including VAT, plus shipping
Qty:
Article added to Cart!
In stock. Delivery time approx. 6 working days. In stock. Delivery time approx. 6 working days.

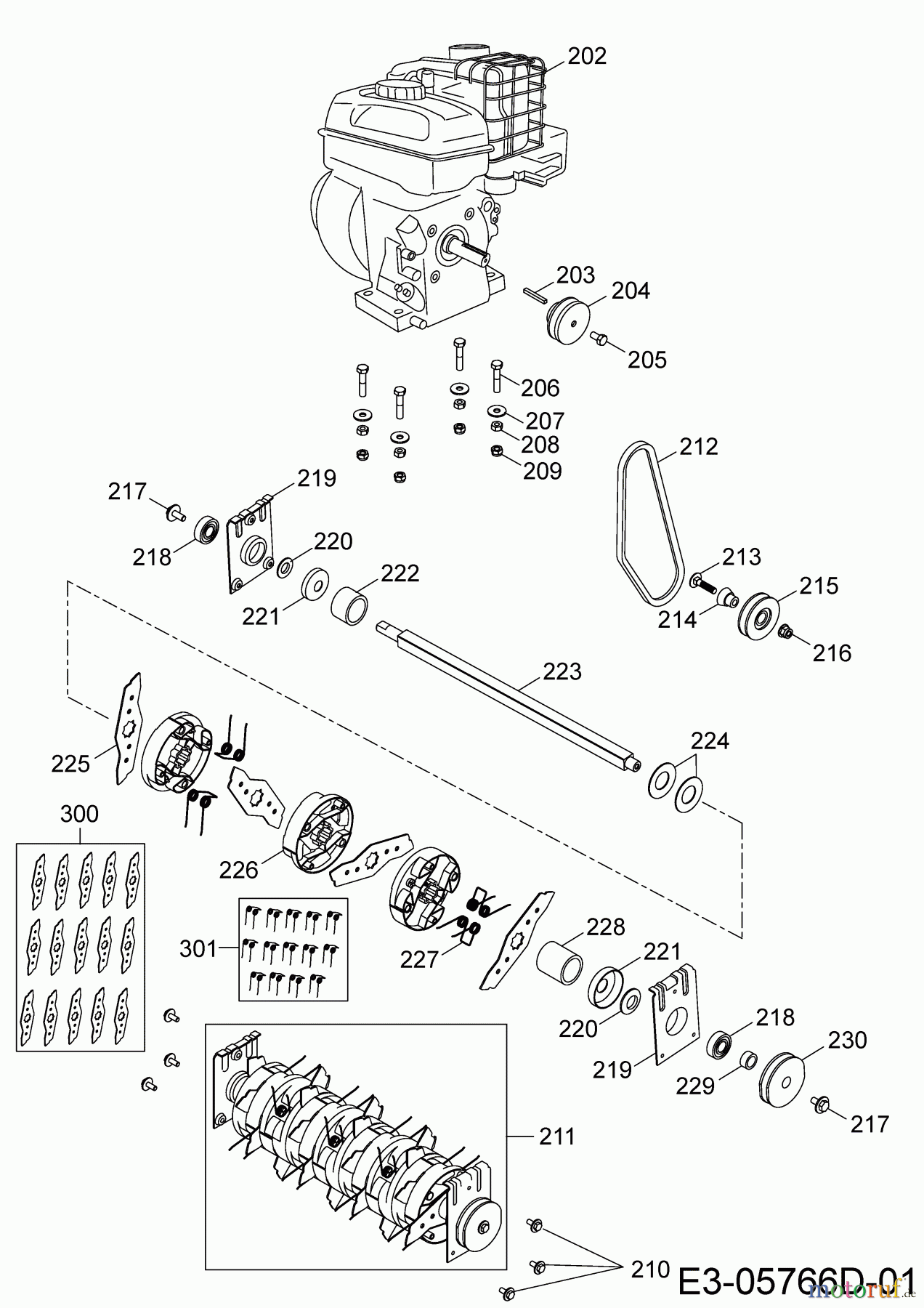

Wolf-Garten Petrol verticutter UV 35 B 3635000 (2017) Belt, Cutter block, Engine
PosArticle NumberDescription
202 752B0222H1MOTOR B&S 550 SERIES 127CC
203 0028775KEY, FOR CRANKSHAFT
204 3635128V-BELT PULLEY
205 Wolf-Garten SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
206 710-1703HHCS:M8-1.25:45.00 LG DIN 933
207 736-0701WASH:FLAT:8.4x24x2.00 DIN 9021
208 Wolf-Garten NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
209 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
210 0010681SCREW
211 3635060ROLLER COMPL.
212 754-05372BELT:V TYP:XPZ630
213 710-1718SCR:CRG:M8-1.25:35 LG
214 3635110IDLER PULLEY (CART)
215 36359083635908
216 0016385NUT
217 710-06324HEX SREW:TAP:M6x16 DIN 7500-1
218 0023148BEARING
219 3568017BEARING SHELL
220 3568512RING
221 Wolf-Garten COVER3568509COVER
222 Wolf-Garten DISTANCE BUSH FOR BLADES3585510DISTANCE BUSH FOR BLADES
223 3635120SHAFT UV30/32EV
224 Wolf-Garten SAUCER SPRING 50X25,4X1,25-DIN0022850SAUCER SPRING 50X25,4X1,25-DIN
225 3635400BLADES
226 3632319spacer
227 3635139twin leg spring
228 3630312DISTANCE BUSH
229 3635111SPACER
230 3635112DRIVE PULLEY
300 36400973640097
301 Wolf-Garten 364009836400983640098
