Yard-Man AF 6150 13AV604F643 (2008) Gearbox 618-04034 to 31.12.2007 Spareparts

BEARING-NEEDLE:.625X.813X.495

Yard-Man BEARING-NEEDLE:.625X.813X.495
Note: This article is 2 times installed in the device, the price is per piece!
Article Number:
741-0335
Pos:
8
DINNORM:
FINISH:SIEHE ZG. 941-0335
Description:
.625x.813x.495
Modell Year:
AF 6150 / 2008 AG 6180 / 2008 AP 6220 K / 2008 DLX 96 SA / 2008 DLX 127 SAL-SK / 2008
17.99 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
in Stock in Stock

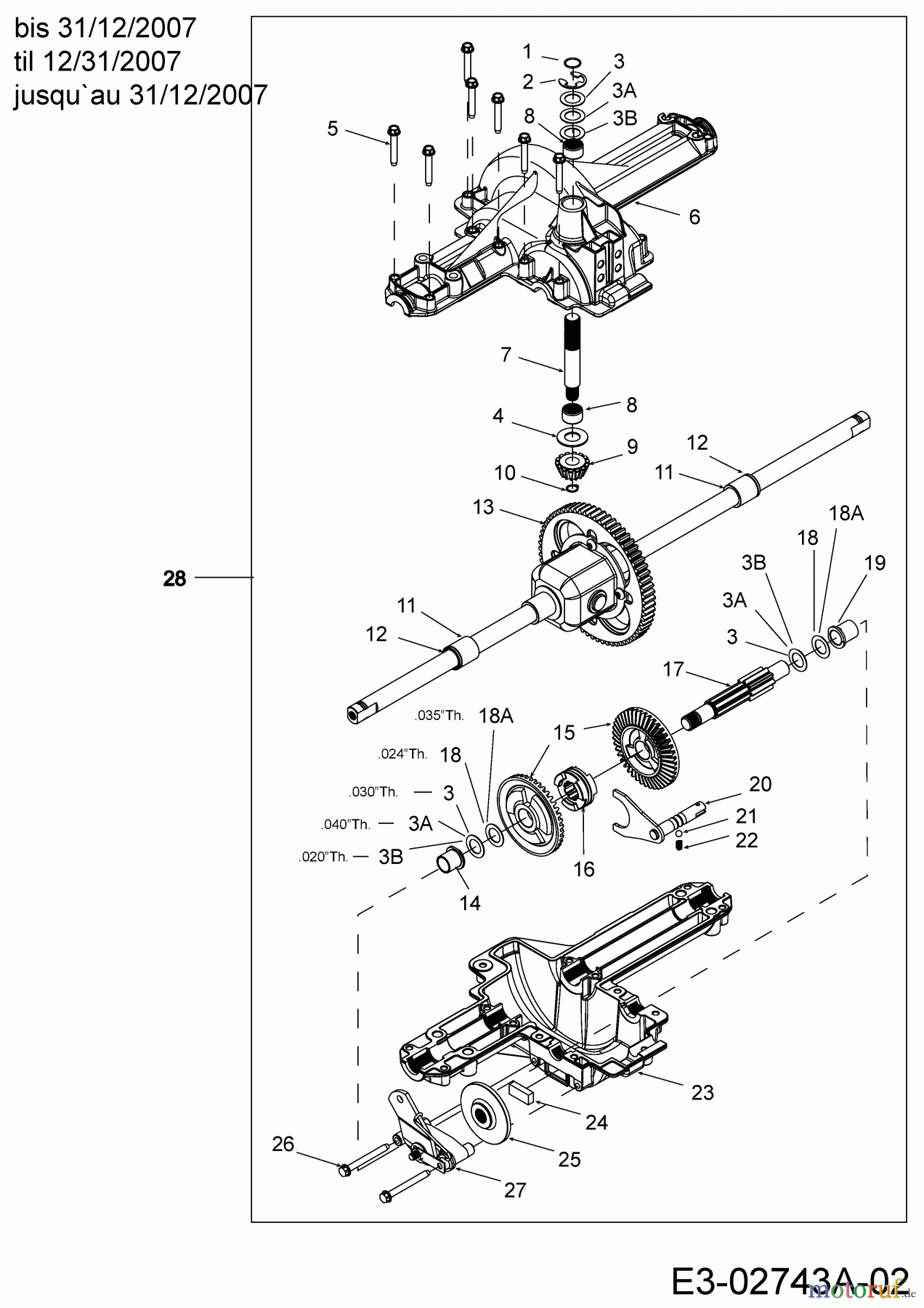

Yard-Man Lawn tractors AF 6150 13AV604F643 (2008) Gearbox 618-04034 to 31.12.2007

Yard-Man AF 6150 13AV604F643 (2008) Gearbox 618-04034 to 31.12.2007 Spareparts

COLR:CLU

COLR:CLU
Number: 718-04045
Search for: 718-04045
Manufacturer: MTD
Yard-Man Gearbox 618-04034 to 31.12.2007
18.41 €
for EU Including VAT, plus shipping
GEAR:BEVEL:42T

GEAR:BEVEL:42T
Number: 717-04056
Search for: 717-04056
Manufacturer: MTD
Yard-Man Gearbox 618-04034 to 31.12.2007
39.82 €
for EU Including VAT, plus shipping
PosArticle NumberDescription
1 Yard-Man Circlip732-0614Circlip
2 Yard-Man RING:E-TYPE:.750716-0231RING:E-TYPE:.750
3 736-0336WASH:SHIM:.625x1.000x.030:HD
3A Yard-Man WASH:SHIM:.634x1.000x.040:HD736-0337WASH:SHIM:.634x1.000x.040:HD
3B Yard-Man WASHER:SHIM:.630x1.000x.020:HD736-0349WASHER:SHIM:.630x1.000x.020:HD
4 Yard-Man WASH:THRST:.635 X 1.26 X .06736-0335WASH:THRST:.635 X 1.26 X .06
5 Yard-Man SCREW:TT:1/4-20:1.625:HXINDWSH710-1325SCREW:TT:1/4-20:1.625:HXINDWSH
6 719-04017UPPER HOUSING PART
7 711-1109INPUT SHAFT
8 Yard-Man BEARING-NEEDLE:.625X.813X.495741-0335BEARING-NEEDLE:.625X.813X.495
9 Yard-Man PINION INPUT 14T717-1464PINION INPUT 14T
10 Yard-Man RETAINING:RING:EXT .437716-0108RETAINING:RING:EXT .437
11 Yard-Man BRG:SLEEVE:.75 x 1.00 x 1.00741-0340BRG:SLEEVE:.75 x 1.00 x 1.00
12 Yard-Man OIL SEAL:.75x1.00x.125721-0338OIL SEAL:.75x1.00x.125
13 618-04041DIFFERENTIAL ASM
14 Yard-Man FLANGE BEARING741-0336FLANGE BEARING
15 Yard-Man GEAR:BEVEL:42T717-04056GEAR:BEVEL:42T
16 Yard-Man COLR:CLU718-04045COLR:CLU
17 711-04134
18 Yard-Man WASHER:SHIM:.632x1.000x.025:HD736-0495WASHER:SHIM:.632x1.000x.025:HD
18A Yard-Man WASHER:FL:.632X1.000X.035:HD736-0494WASHER:FL:.632X1.000X.035:HD
19 Yard-Man FLANGE BEARING741-0337FLANGE BEARING
20 Yard-Man SHF ASM:DETENT611-0011SHF ASM:DETENT
21 Yard-Man BALL:DETENT:.250 DIA741-0862BALL:DETENT:.250 DIA
22 Yard-Man COMPRESSION SPRING732-0863COMPRESSION SPRING
23 719-04018719-04018 / 919-04018
24 717-0678BRAKE CORK
25 Yard-Man BRAKE DISC761-0202BRAKE DISC
26 Yard-Man SCREW:TT:1/4-20:2.375:HXINDWSH710-1206SCREW:TT:1/4-20:2.375:HXINDWSH
27 Yard-Man BRAKE ASM:YOKE:LH661-0001BRAKE ASM:YOKE:LH
28 618-04034TRANSMISSION SINGLE SPEED
