MTD-Engines 170-THA 752Z170-THA (2010) Engine Spareparts

AIR CLEANER KIT

Article Number:
751-10794
Pos:
14
DINNORM:
FILTER + SCHAUMSTOFF-VORFILTER
Description:
MTD02-IC77-0000
Modell Year:
170-THA / 2010
21.84 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.

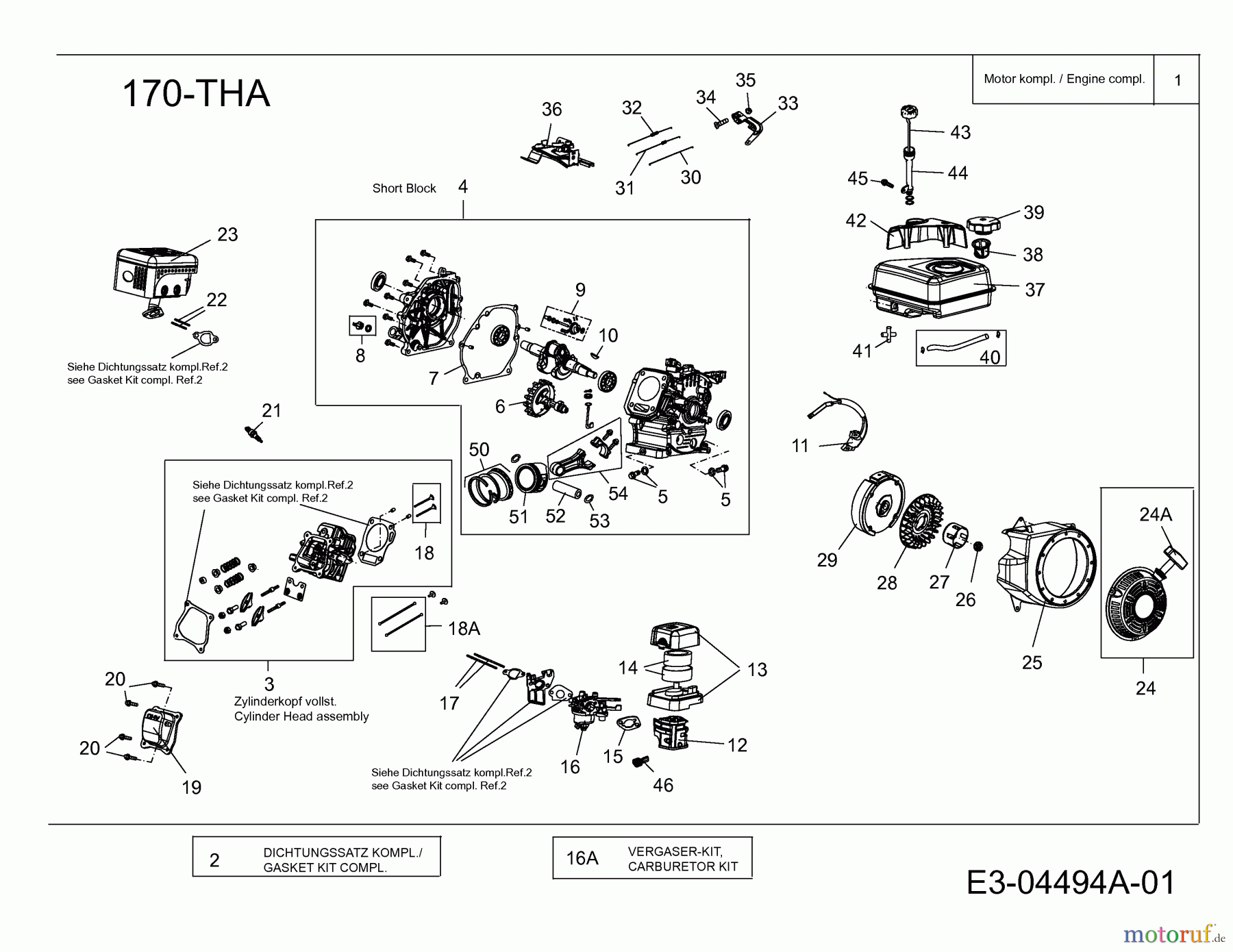

MTD-Engines Horizontal 170-THA 752Z170-THA (2010) Engine
PosArticle NumberDescription
1 752Z170-THAENGINE MTD
2 MTD-Engines GASKET KIT751-10802AGASKET KIT
3 751-10799CYLINDER HEAD ASSY.
4 751-10798ASHORT BLOCK ASSEMBLY
5 751-10370OIL DRAIN PLUG AND WASHER ASSY
6 751-11575CAMSHAFT ASSY
7 751-11371Gasket
8 751-10669OIL FILLER PLUG ASSY.
9 751-11576GOVERNOR KIT
10 751-10307FLYWHEEL KEY
11 751-1079214160020
12 751-10806AIR FILTER HEATING PIPE BASE
13 MTD-Engines COVER AIR CLEANER ASSY.751-10818COVER AIR CLEANER ASSY.
14 751-10794AIR CLEANER KIT
15 MTD-Engines Gasket751-11571Gasket
16 751-10797CARBURETOR ASSY.
16A 751-10800ACARBURETOR KIT, MAJOR
17 710-05101STUD M6-1X110 GR8.8
18 751-10647VALVE KIT
18A 751-10648PUSH ROD KIT
19 751-11054COVER-ROCKER
20 710-04917SCREW M6X16
21 MTD-Engines SPARK PLUG:F6RTC MTD THORX-SER751-10292SPARK PLUG:F6RTC MTD THORX-SER
22 751-10657STUD M8X34
23 751-10793MUFFLER COMP.
24 751-10790RECOIL STARTER ASSY.
24A 092.49.233GRIP
25 751-11583BLOWER HOUSING
26 712-04209NUT, FLY WHEEL, M14X1.5
27 751-10911PULLEY, STARTER
28 751-10934COOLING FAN
29 751-10805FLYWHEEL
30 751-10665THROTTLE CONTROL ROD
31 751-10664THROTTLE RETURN SPRING
32 751-11585SPRING GOVERNOR
33 751-11106ARM, GOVERNOR
34 710-04908BOLT, GOVERNOR ARM
35 712-04212NUT M6
36 751-11584BRACKET
37 751-10796TANK-FUEL 2 GAL
38 751-10652FUEL FILTER
39 751-10649FUEL CAP ASSY.
40 751-10650FUEL LINE KIT
41 MTD-Engines NIPPLE FUEL TANK751-10651NIPPLE FUEL TANK
42 751-10662DIPSTICK DECORATOR COVER
43 751-10655DIPSTICK
44 751-10656TUBE-OIL FILL
45 710-04915BOLT M6X12/ZINC COATING
46 751-11067
50 3061-M6-0012PISTON RING KIT
51 3061-M6-0049Piston assy
52 3061-M6-0030PISTON PIN
53 3061-M6-0029LOCK RING
54 3061-M6-0025CONNECTING ROD ASSY.
