Petrol mower 11AAE0LC633 (2013) Cutting hight adjustment Spareparts

BEARING BUSH REAR AXLE

Note: This article is 2 times installed in the device, the price is per piece!
Article Number:
750-06012
Pos:
20
DINNORM:
750-06012
Modell Year:
Regal AV / 2013
no longer available

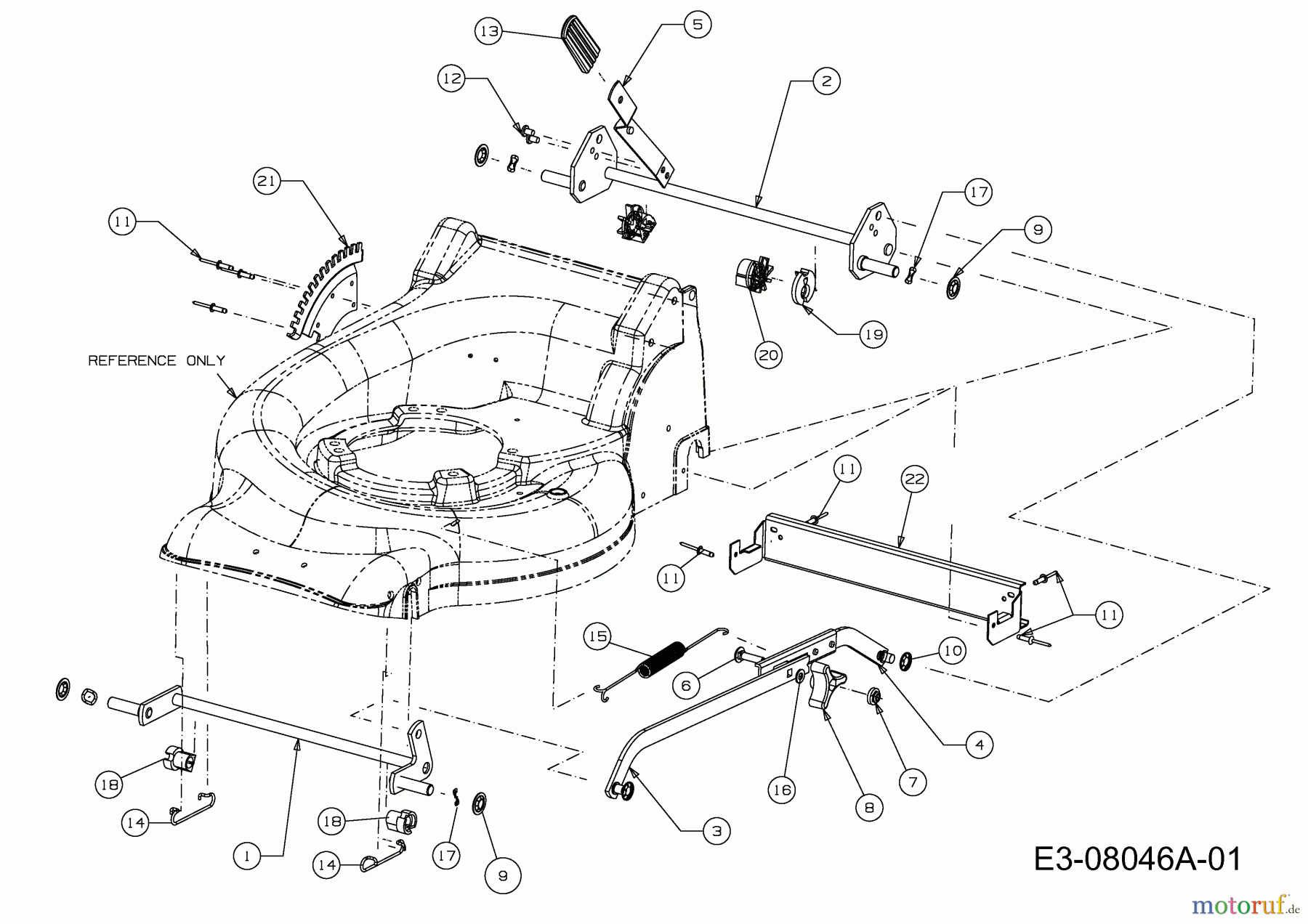

Petrol mower Regal AV 11AAE0LC633 (2013) Cutting hight adjustment
PosArticle NumberDescription
1 611-05007FRONT AXLE
2 611-05011REAR AXLE
3 647-05000CONNECTING ROD
4 687-05005BAR ASSY REAR
5 687-05031HEIGH ADJUSTMENT LEVER
6 710-05487BOLT (SV4/SV4M)
7 712-04349NUT 5/16-18
8 720-04187VANE ACTUATOR KNOB
9 726-0221NUT:SPD:.500
10 Petrol mower CLIP:PUSH:FE 100726-04052CLIP:PUSH:FE 100
11 728-05002RIVET
12 728-05008RIVET 1/4"X3/8"
13 731-08955GRASP
14 732-04971CLAMPING BRACKET
15 732-05000SPRING FOR ADJUSTEMENT HEIGH
16 736-04650REINFORCEMENT BAR BOLT
17 Petrol mower WASH:WAVE:.510x.750 x.017736-0504WASH:WAVE:.510x.750 x.017
18 741-04577AXLE BEARING FRONT
19 750-06005SPACER
20 750-06012BEARING BUSH REAR AXLE
21 787-03025HEIGHT ADJUSTMENT
22 787-03050SHIELD REAR AXLE
