MTD-Engines 4Q78HW 752Z4Q78HW (2020) Piston, Camshaft, Crankshaft, Connecting rod Spareparts

FILTER-OIL

MTD-Engines FILTER-OIL
Article Number:
751-12690
Pos:
23
Modell Year:
4Q78HW / 2021 8Q78XW / 2021
16.99 €
for EU Including VAT, plus shipping
Qty:
Article added to Cart!
in Stock in Stock

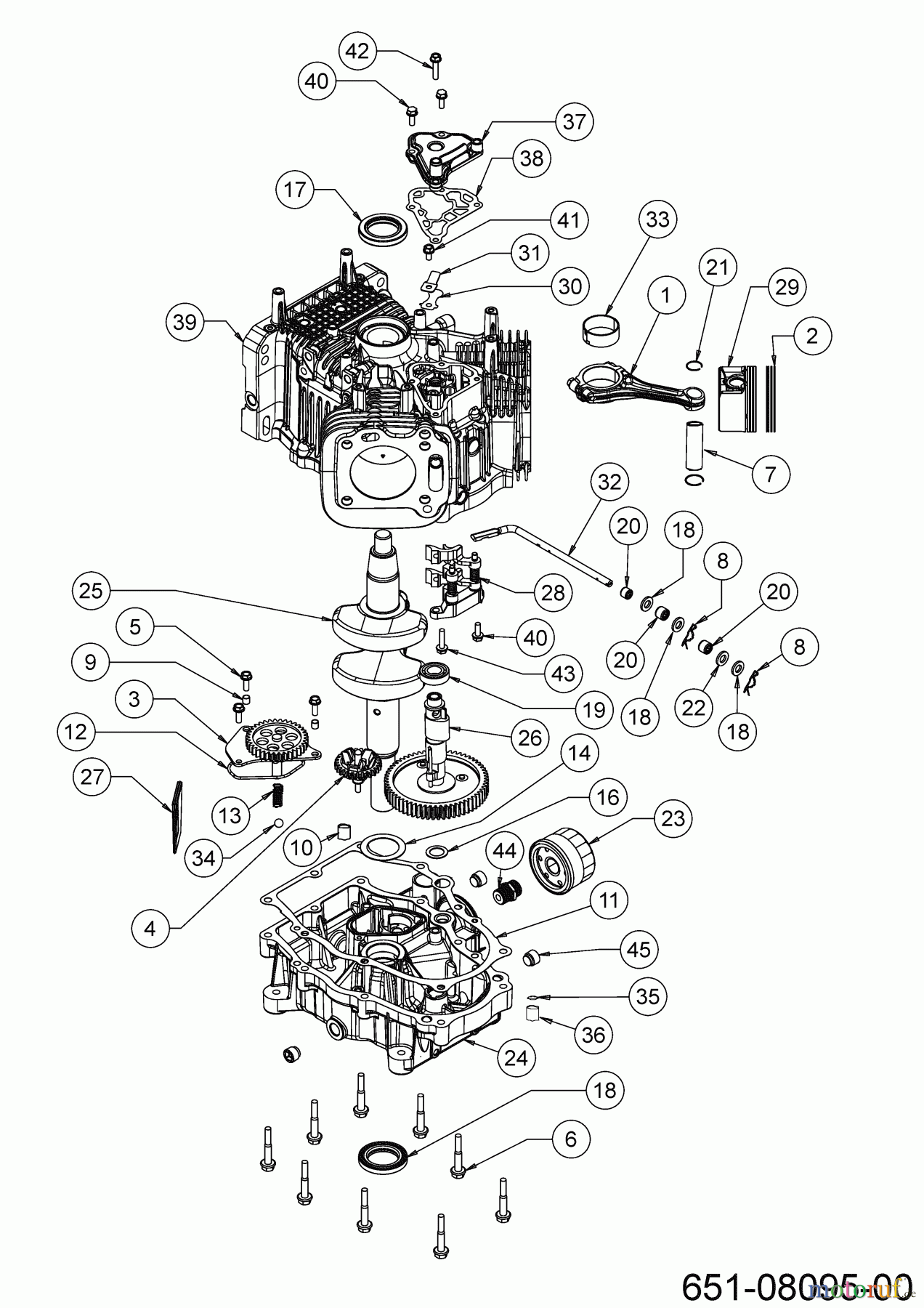

MTD-Engines Vertical 4Q78HW 752Z4Q78HW (2020) Piston, Camshaft, Crankshaft, Connecting rod
PosArticle NumberDescription
1 651-05376Connecting rod
2 651-05422RING SET
3 651-05449OIL PUMP
4 651-05589TIMING MASTER GEAR
5 710-05003BOLT M6-1X18
6 710-10715
7 711-06733Pin STD
8 714-04077COTTER PIN
9 715-04088A
10 715-05064SLEEVE
11 721-04887GASKET CRANKCASE
12 721-04916GASKET OIL PUMP
13 732-05534OIL PUMP SPRING
14 736-05187WASHER 38.5x1.0x0.54
15 736-05188FLAT WASHER 8.5X15.8X2
16 736-05199THRUST WASHER 17.4X25.9X1.0
17 737-05067OIL SEAL 38X58X8
18 737-05190CRANKSHAFT OIL SEAL
19 741-05213CAMSHAFT BEARING 6003-Z
20 741-05216NEEDLE BEARING 8X12X10
21 751-11632LOCK RING
22 751-12388SEAL-OIL 5000 SER
23 MTD-Engines FILTER-OIL751-12690FILTER-OIL
24 751-15360CRANKCASE
25 751-15366CRAUKSHAFT
26 751-15375Cam shaft
27 751-15383OIL SCREEN
28 751-15384BELLCRANK-DECK LIFT
29 751-15385Piston assy
30 751-15398REED BREATHER
31 751-15399BRACKET
32 751-15403GOVERNOR ARM ROD
33 751-15587BEARING SHELL
34 751-15588STEEL BALL OIL PUMP
35 751-15589O-RING 13.2X2.65
36 751-15590PIN
37 751-15810BREATHER COVER
38 751-15811Gasket
39 751-15865ACRANCASE ASSY
40 751-20029
41 751-20112BOLT M6X40
42 751-20113BOLT M6X28
43 751-20124
44 751-20788
45 751-20888OIL DRAIN PLUG
