DEVILBISS ELU IMPACT WRENCH DS24 Spareparts

BRUSH CAP

Note: This article is 2 times installed in the device, the price is per piece!
Article Number:
SB-448084-01
Pos:
6
no longer available

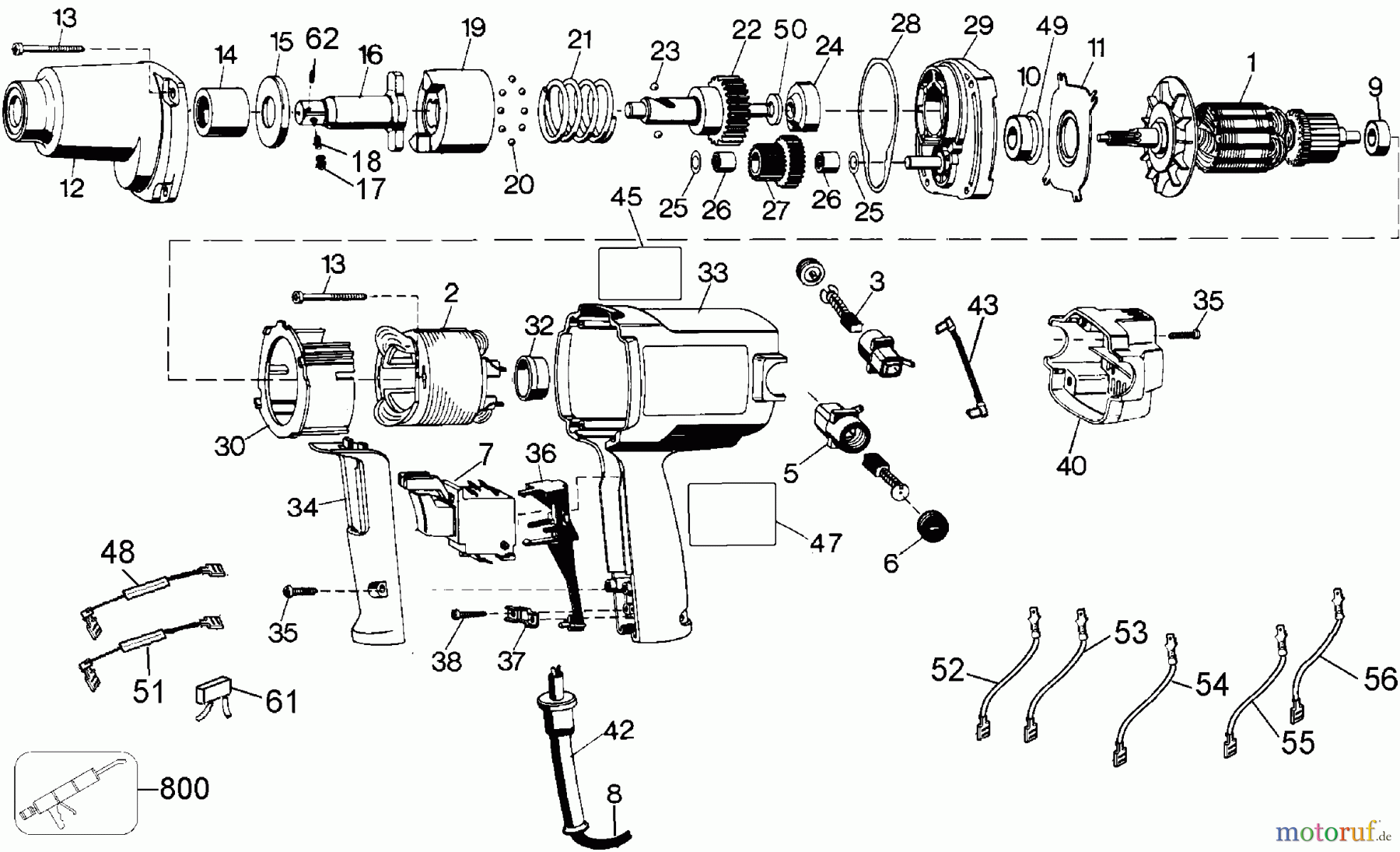

DEVILBISS Divers ELU IMPACT WRENCH DS24 Seite 1
PosArticle NumberDescription
1 SB-450807-05ARMATURE 230V
2 SB-450379-00FIELD
3 SB-450374-12BRUSH & SPRING
5 SB-448083-01BRUSHBOX SA
6 SB-448084-01BRUSH CAP
7 SB-88324-03SWITCH
8 SB-330048-71CORDSET
9 SB-605040-06BEARING,BALL
10 SB-605040-20BEARING
11 SB-448079-00PLATE
12 SB-449448-00GEARCASE
13 SB-330019-18SCREW
14 SB-450544-00BEARING & SEAL
15 SB-616859-00WASHER THRUST
16 SB-627238-00SVANVIL ASSEMBLY
17 SB-N020802DETENT
18 SB-038769-00SPRING
19 SB-448298-00IMPACTOR
20 SB-000475-00BALL STEEL
21 SB-135065-00SPRING
22 SB-449759-01GEAR SA
23 SB-005190-00BALL STEEL
24 SB-450736-00BEARING
25 SB-135089-00WASHER
26 SB-330004-02BEARING NEEDLE
27 SB-135093-01SVGEAR & PINION
28 SB-135082-00GASKET
29 SB-449452-00SVCOVER-GEAR CASE
30 SB-447786-00BAFFLE FAN
32 SB-445217-02SLEEVE
33 SB-429939-01FIELD CASE
34 SB-392273-02HANDLE COVER
35 SB-330019-13SCREW
36 SB-449915-00SWITCH SUPPORT
37 SB-86634-00CORD CLAMP
38 SB-330019-03SCREW
40 SB-449460-01END CAP
42 SB-N918736CORD PROTECTOR
43 SB-158491-00LEAD
45 SB-390975-00NAMEPLATE
47 SB-152534-00NAMEPLATE
48 SB-146975-00CHOKE LEAD RED
49 SB-99180-24SEAL
50 SB-450667-00WASHER
51 SB-146975-01CHOKE LEAD BLACK
52 SB-146976-00LEAD BLUE
53 SB-146956-00LEAD WHITE
54 SB-146957-00LEAD RED
55 SB-146957-01LEAD BLACK
56 SB-146958-00LEAD
61 SB-135107-05CAPACITOR
62 SB-99205-07ROLLPIN
800 SB-429698-00GREASE
