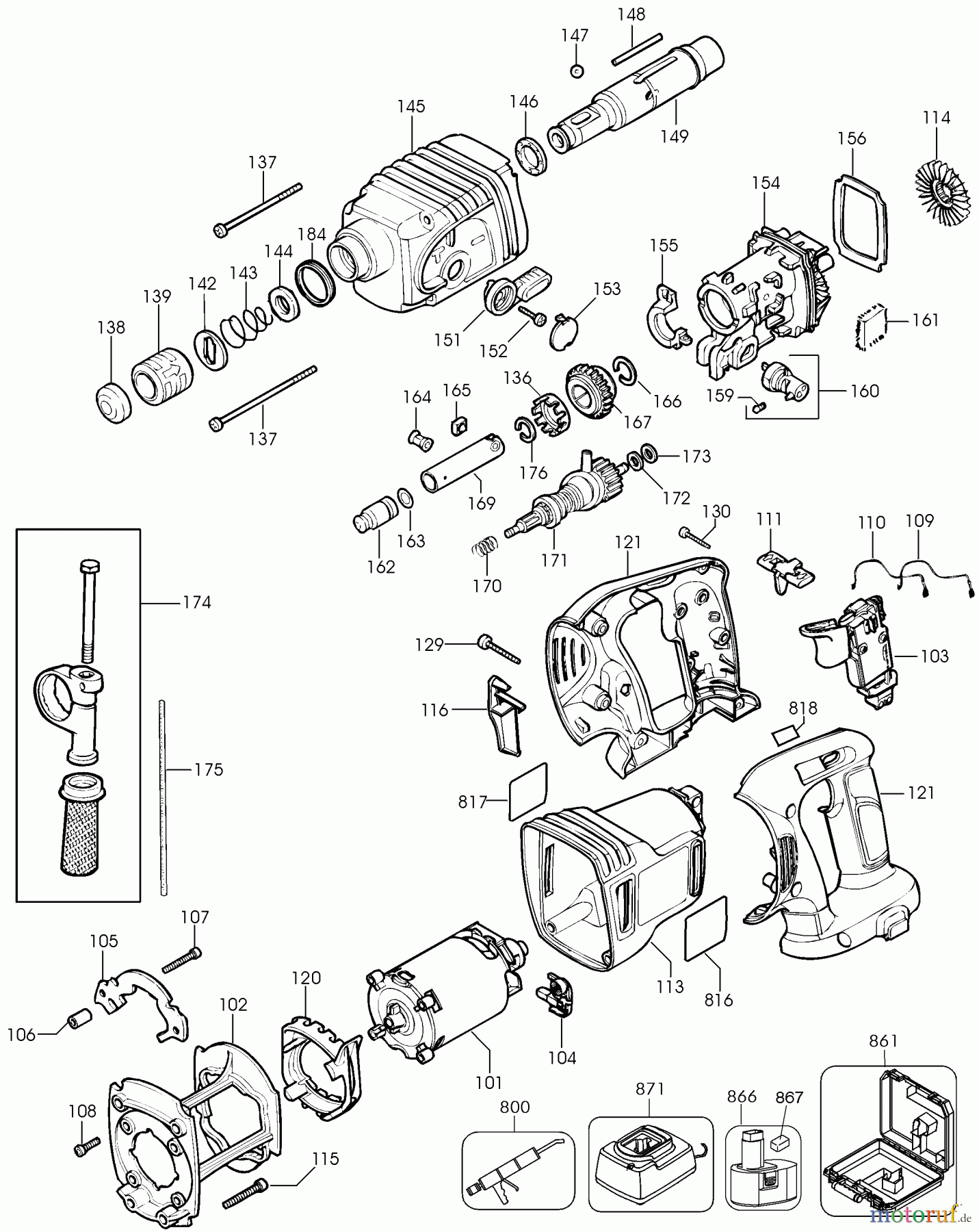

DEWALT 18V SDS ROTARY HAMMER DW999K-2 Spareparts

• Start
• DEWALT
• Divers
• 18V SDS ROTARY HAMMER
• DW999K-2
• Seite 1

COVER

Article Number:

SB-329955-00

Pos:

120

no longer available

Pos		Article Number	Description
101		SB-487132-00	ARMATURE SA
102		SB-487133-00	MAGNET SA
103		SB-152274-09	SWITCH
104		SB-383869-00	BRUSH & HOLDER
105		SB-578007-00	PLATE
106		SB-577101-00	SLEEVE
107		SB-330045-09	SCREW
108		SB-98091-10	SCREW
109		SB-388913-00	LEAD RED
110		SB-388914-00	LEAD BLACK
111		SB-329956-01	SLIDER
113		SB-574943-00	MOTOR HOUSING SA
114		SB-575520-00	FAN SA
115		SB-324006-11	SCREW
116		SB-330003-60	BEARING
120		SB-329955-00	COVER
121		SB-613840-00	CLAMSHELL
129		SB-330019-04	SCREW
130		SB-330019-00	SCREW
136		SB-327110-00	SPACER
137		SB-324044-02	SCREW
138		SB-323489-00	CAP
139		SB-576756-00	COLLAR
142		SB-871354-00	WASHER
143		SB-871690	SPRING
144		SB-324432-00	SEAL SA
145		SB-574938-01	GEARCASE SA
146		SB-329907-00	WASHER
147		SB-487033-00	BALL
148		SB-325880-03	PIN
149		SB-578473-01	SPINDLE SA
151		SB-327119-00	LEVER
152		SB-323924-08	SCREW
153		SB-328809-00	COVER
154		SB-329935-00	HOUSING BEARING
155		SB-328507-00	SHIELD
156		SB-323572-00	SEAL
159		SB-326467-00	DETENT
160		SB-327094-01SV	CAM ASSEMBLY
161		SB-327093-00	FILTER
162		SB-578951-00	RAM SA
163		SB-577168-00	O RING
164		SB-487143-00	AXLE
165		SB-327072-00	SHIM
166		SB-323762-02	CIRCLIP
167		SB-487401-00	CLUTCH SA
169		SB-487067-00	PISTON
170		SB-323395-33	SPRING
171		SB-586535-00	INTER SHAFT SA
172		SB-324430-03	BEARING AXIAL
173		SB-324431-03	WASHER 7
174		SB-NA292261	SIDE HANDLE
175		SB-875715-00	ROD,DEPTH
176		SB-323762-08	CIRCLIP
184		SB-581092-00	SEAL
800		SB-328771-03	BIT GREASE 50G
816		SB-576212-00	BRAND LABEL
817		SB-576208-02	RATING PLATE
818		SB-576583-00	LABEL
861		SB-577646-03	KITBOX
866		SB-DW0240	24V NICAD BATTERY
867		SB-608522-00	SAFETY CAP
871		SB-649164-00	CHARGER 120V
