MTD untill 2011 E/165 13DO768N678 (2001) Engine accessories Spareparts

CAP:DRAIN:3/8-18 NPT OIL

Article Number:
737-0143
Pos:
14
Modell Year:
E/165 / 2001 Eurotrac 18/102 / 2002 Eurotrac 21/102 / 2002 Eurotrac 21/102 / 2003 906 / 2002 Sprint 2000 / 2001 RH 180 / 2002 RH 180 / 2003
DINNORM:
737-0143
no longer available

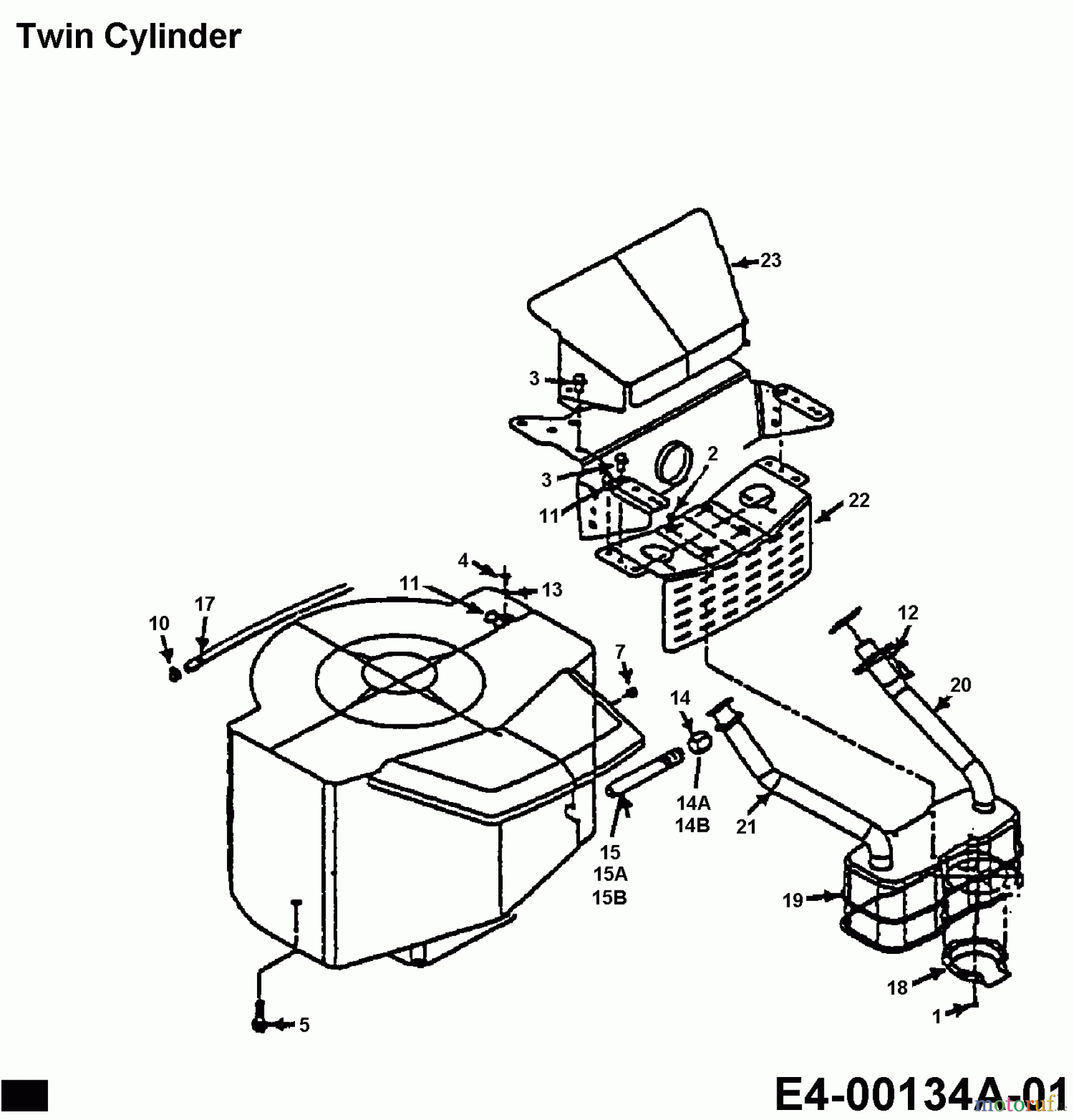

MTD untill 2011 Lawn tractors E/165 13DO768N678 (2001) Engine accessories
PosArticle NumberDescription
1 MTD untill 2011 SCR:F:#8-32:0.375 HXINDWSH710-0148SCR:F:#8-32:0.375 HXINDWSH
2 MTD untill 2011 SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
3 710-0604SCREW TT:5/16-18:0.625HXINDWSH
4 MTD untill 2011 SCR:AB:#10-16:0.500:TRUSPHI710-0779ASCR:AB:#10-16:0.500:TRUSPHI
5 MTD untill 2011 SCREW TT:3/8-16:1.25HXINDWSH:S710-1315SCREW TT:3/8-16:1.25HXINDWSH:S
6 MTD untill 2011 HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
7 MTD untill 2011 NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
9 721-0346EXHAUST GASKET B&S OPP TWN
10 MTD untill 2011 CLAMP HOSE: .490 DIA726-0205CLAMP HOSE: .490 DIA
11 726-0272CLAMP 9/16 DIA (FUEL HOSE)
12 MTD untill 2011 WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
13 736-3067WASH:FL:.188X.437X.042
14 737-0143CAP:DRAIN:3/8-18 NPT OIL
14A 751-0572SOC:PIPE:HEX 1/4-18 X 7/8 TPR
14B 751-3140DRAIN:OIL
15 737-0164PIPE:STRGT:3/8 NPT X 5.0 LG
15A 737-0286PIPE:STRGT:3/8 NPT X 3.8 LG
15B 751-3141HOSE:EXTN:OIL DRAIN
17 751-0535-26FUEL LINE
18 751-0564EXHAUST COVER
19 751-0616MUFFLER,TWIN INLET
20 751-0623EXHAUST PIPE L.H. TWN OPP B+S
21 751-0624EXHAUST PIPE R.H. TWN OPP B+S
22 783-0320ABRKT:MUFFLER
23 783-0357SHLD:HEAT:OPP TWN
