Echo PE-2000 - Edger (Type 2E) Driveshaft, Handles, Throttle Spareparts

• Start
• Echo
• Kantenschneider
• PE-2000 - Echo Edger (Type 2E)
• Driveshaft, Handles, Throttle

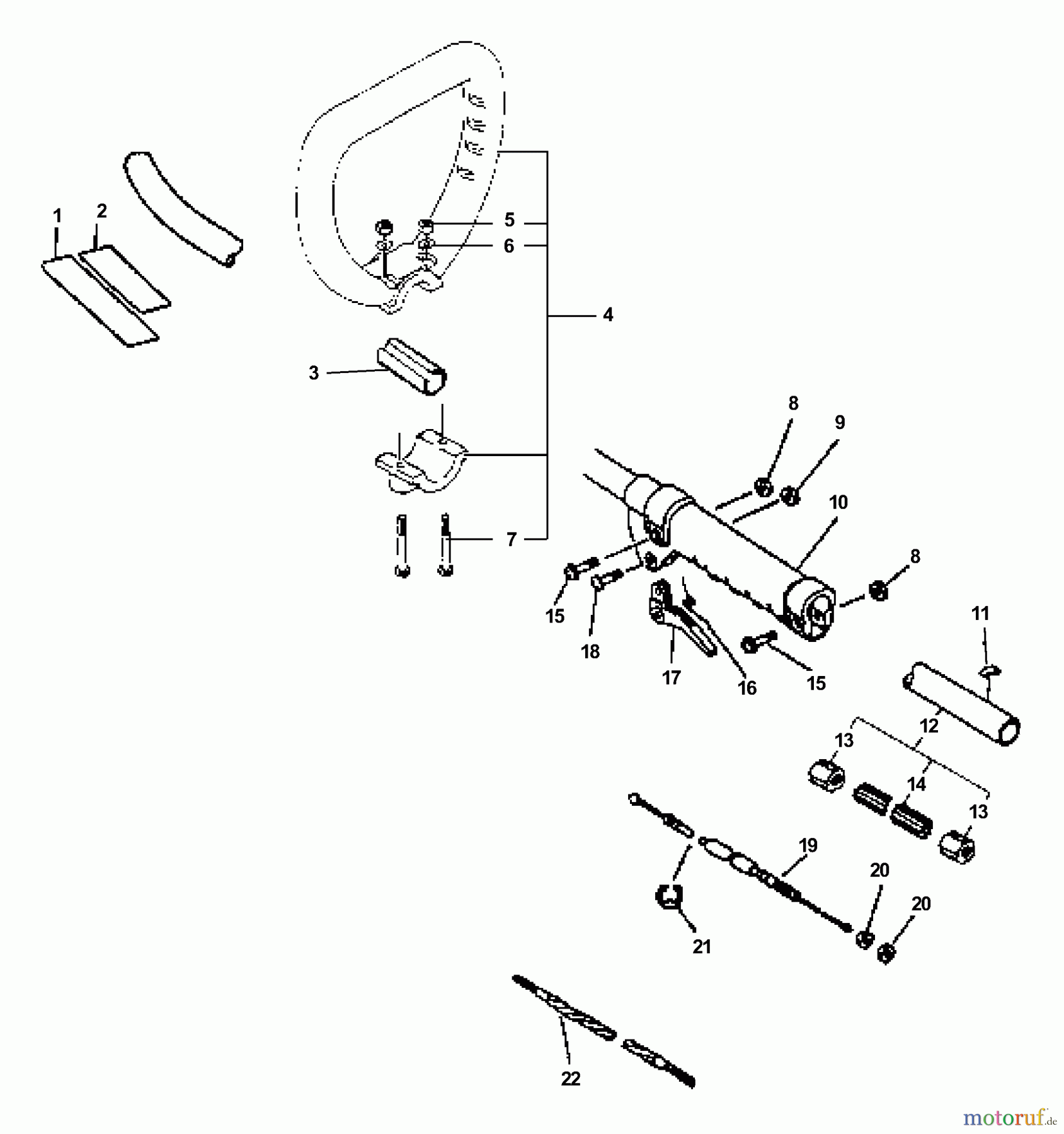

Driveshaft, Handles, Throttle PE-2000 - Echo Edger (Type 2E)

Pos		Article Number	Description
1		16-890160-25560	Aufkleber
2		1689017740630
3		1635133008930
4		16-351201-08930	Zsb. Griff
5		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
6		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
7		16-900220-05040	Schraube
8		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
9		16-900560-00005	Mutter M5, selbstsichernd (10)
10		1635121344330
11		16-890152-04930	Aufkleber
12		1661020655330
13		1661024655330
14		1661021755330
15		16-900242-05025	Schraube CS-3500, HCA-2500,
16		16-178043-06930	Feder RM-310, SRM-200AE, SRM-
17		16-C450-000070	Feder, Gasgriff CS-2600
18		16-178110-05330	Schraube
19		16-178001-56730	Gaszug GT-2400/HCA-2400/SRM-
20		16-900502-00006	Mutter SRMF-340 6 (3N)
21		1690070000005
22		16-C506-000390	Antreibswelle flexibel C-225S
