> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Air Cooled Engine Assy. (Cont.)

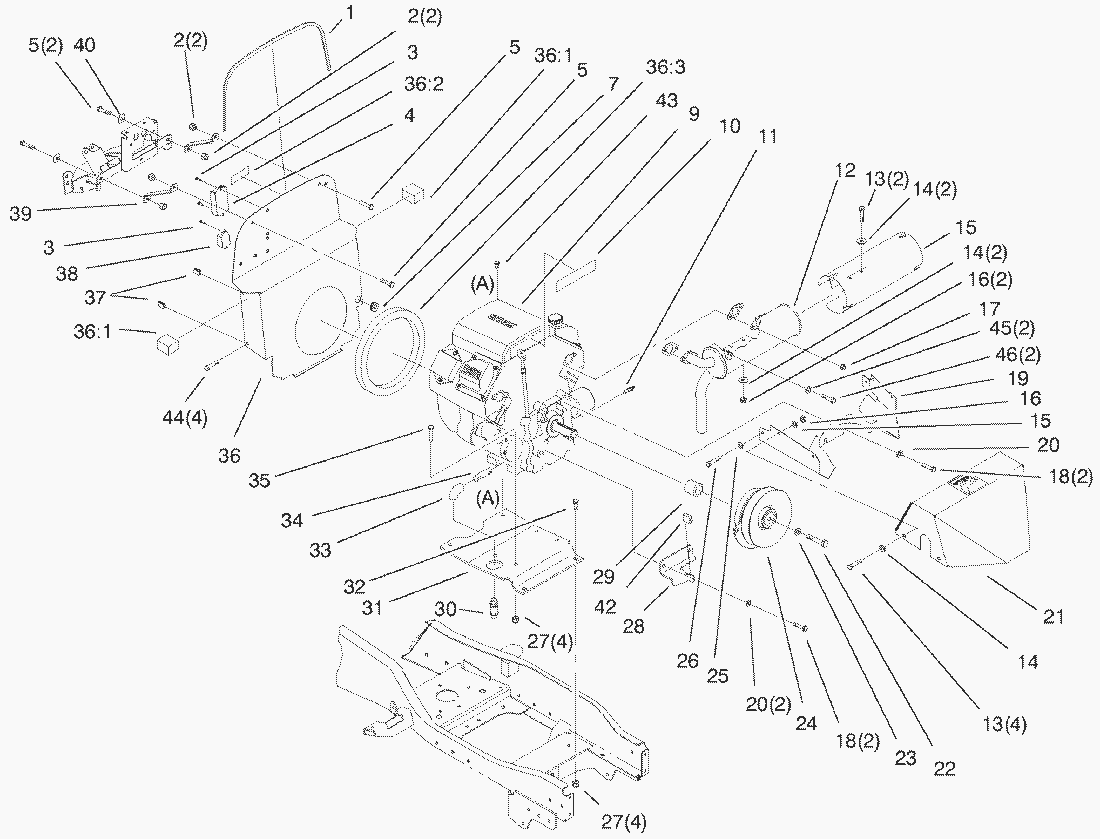

Spare Parts Lists for Toro Roth / TORO Air Cooled Engine Assy. (Cont.)




spare parts list


pos.decriptionspare part number
362Decal-Warning (Only On: 73541)98-5015
363Foam Seal95-4104
37Nut-Speed107069
38Cruise Module (Only On: 73540, 73541)95-3029
39Bracket-Bulkhead95-4117-03
40Flat Washer3256-24
42Bumper98-5023
43Screw-Taptite32144-109
44Capscrew322-7
45Lockwasher3253-4
46Screw-HHF33104-020
