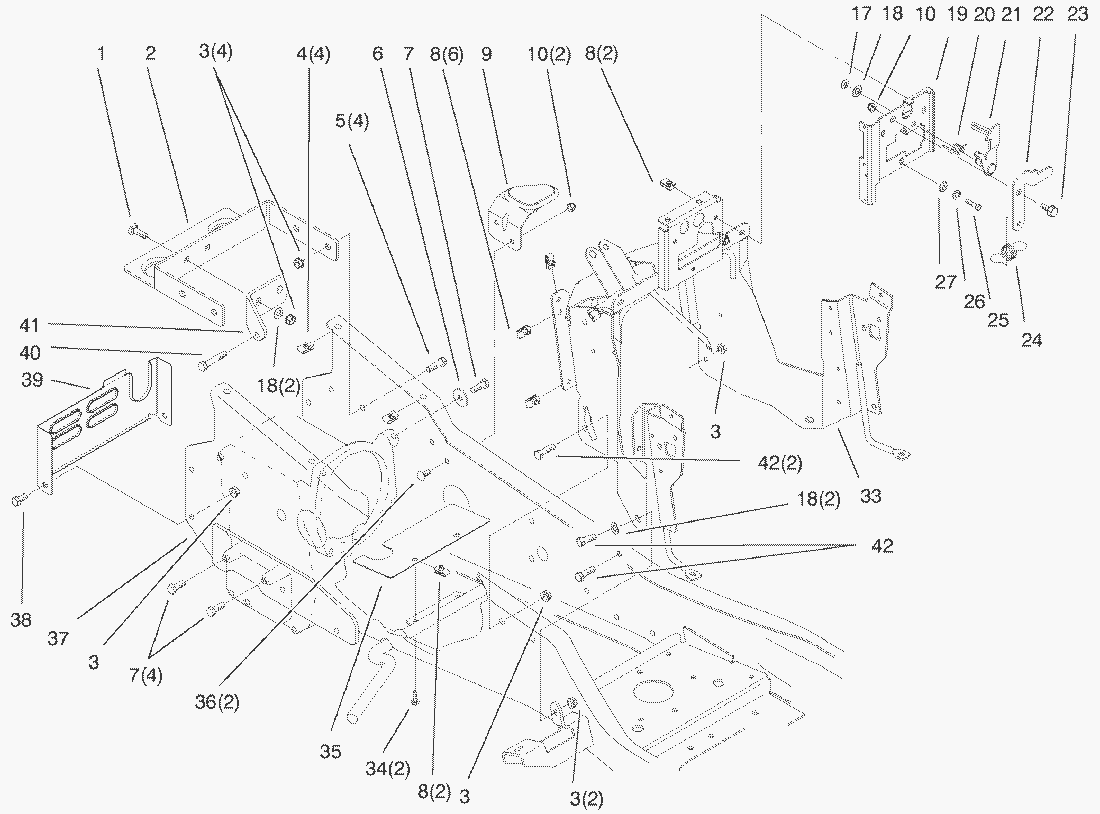

Spare Parts Lists for Toro Roth / TORO Steering Tower and Fuel Tank Assy.

pos.	decription	spare part number
1	Carriage Bolt	3231-25
2	Support-Gas Tank	94-7740-03
3	Locknut	3296-39
4	U-Nut	94-2413
5	Screw-Cap Hex Hd.	323-7
6	Washer-Special	2844
7	Screw-HH	3235-22
8	Nut-Speed	107069
9	Support-Fuel Tank	95-3961-03
10	MUTTER	3296-29
17	Ring-Retaining	105797
18	Flat Washer	3256-24
19	Bracket-Latch	95-3892-03
20	Spring-Torsion	95-4165
21	Latch Lever	95-3899
22	Tension Lever-Latch	95-3900
23	Bolt-Shoulder	37-8771
24	Spring-Extension	95-3895
25	Capscrew	321-4
26	Lockwasher	3253-3
27	Washer	3256-22
33	Tower ASM	94-7643-03
34	Capscrew	321-4
35	Baffle-Fan	95-4246
36	Carriage Bolt	3230-1
37	Frame	94-2083-03
38	Hex Screw	323-4
39	Cover-Rear	95-4005-03
40	Screw-HH	94-7972
41	Strap-Torque	94-7739-03
42	Capscrew	323-6
