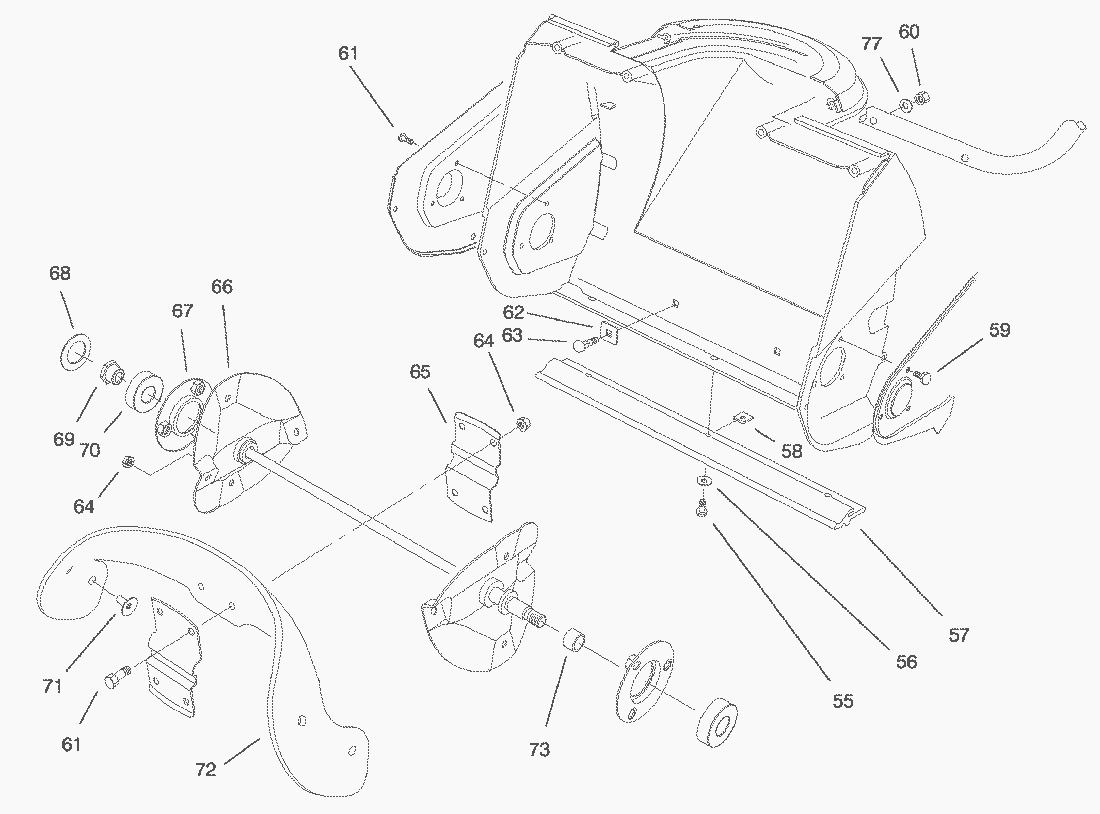

Spare Parts Lists for Toro Roth / TORO Auger Assy.

pos.	decription	spare part number
55	Self Tapping Screw	32144-34
56	Washer	3256-14
57	Scraper	75-8780
58	U-Nut	32115-19
59	SCHRAUBE	321-3
60	MUTTER	3296-42
61	Screw-Hex Hd. Cap	3234-33
62	Washer-Square	75-9040
63	Screw-Carriage	3229-5
64	STOPMUTTER	3296-56
65	Support-Rotor	75-8880
66	Rotor	75-8840
67	Flange-Bearing	75-9080
68	Washer-Rubber	75-9180
69	Nut-Rotor Shaft	75-8690
70	Ball Bearing	38-7820
71	Screw-Countersunk Oval	84-1970
72	Blade-Rotor	84-1980
73	Spacer-Auger Shaft	75-8710
77	Washer	3-7501
