> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 601/38171 > 7900001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

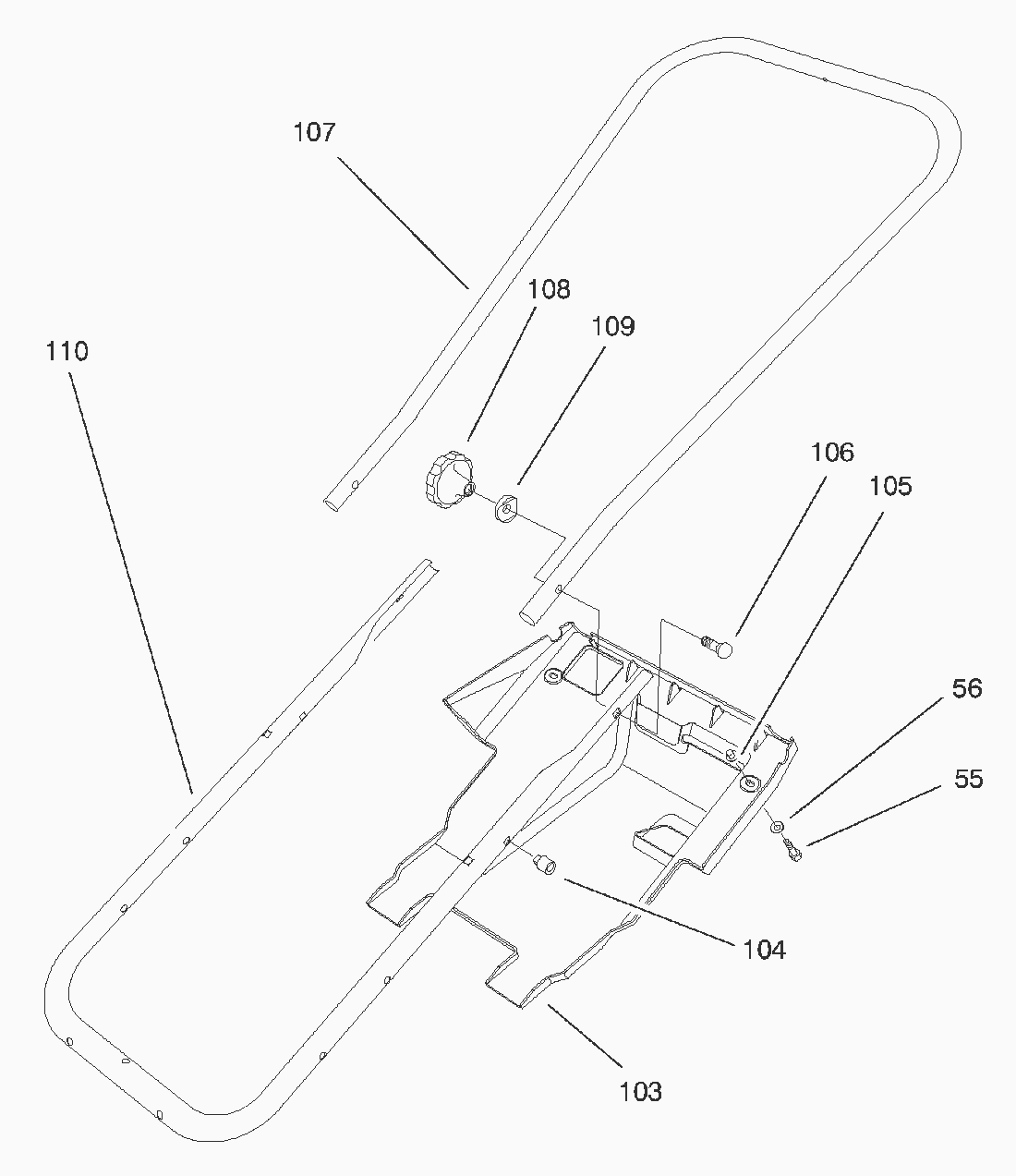

spare parts list


pos.decriptionspare part number
55Self Tapping Screw32144-34
56Washer3256-14
103Shroud-Lower75-8790
104Nut-Push32115-17
105Nut-Push In3290-453
106SCHRAUBE17-9426
107Handle-Upper75-9070
108DREHKNOPF19-4050
109Washer-PM75-9130
110Tube-Frame75-9060
