> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 1000001 > Auger Assy.

Spare Parts Lists for Toro Roth / TORO Auger Assy.

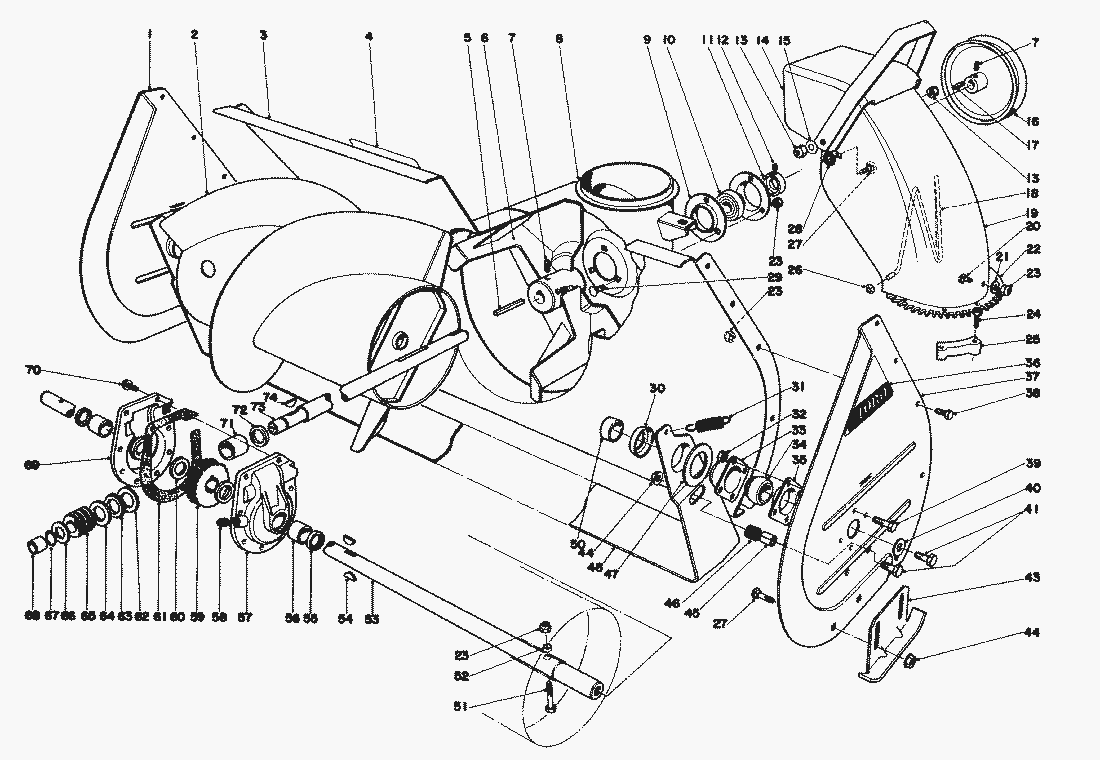

spare parts list


pos.decriptionspare part number
1Sideplate Auger R.H.8-8450
2Auger R.H. (Model 38160)126-6180
Auger R.H. (Model 38150)26-6160
Auger L.H.26-6190
Auger L.H. (Model 38150)26-6170
3Auger Housing25-5110
Auger Housing (Model 38150)25-5100
4Decal-Auger Warning29-6350
5Key-Impeller6-8590
6Impeller19-8890
7Set Screw3242-4
8Chute Ring25-5170
9Bearing Flange251-229
10Bearing-Impeller251-224
11Locking Collar251-231
12Set Screw3245-32
13Locknut32152-2
14Deflector11-7120
15Washer Belleville3290-340
16Pulley Impeller5-7400
17Key3-6857
18Chute Wire12-2040
19Upper Chute25-5440
20Carriage Bolt3230-18
21Washer3256-23
22Swivel Plate25-5290
23MUTTER3296-29
24Screw Special27-0220
25Swivel Block25-5450
26Pushnuts3290-326
27Carriage Bolt3231-27
28Washer Rubber20-4320
