> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 1000001 > Grader Blade Assy.

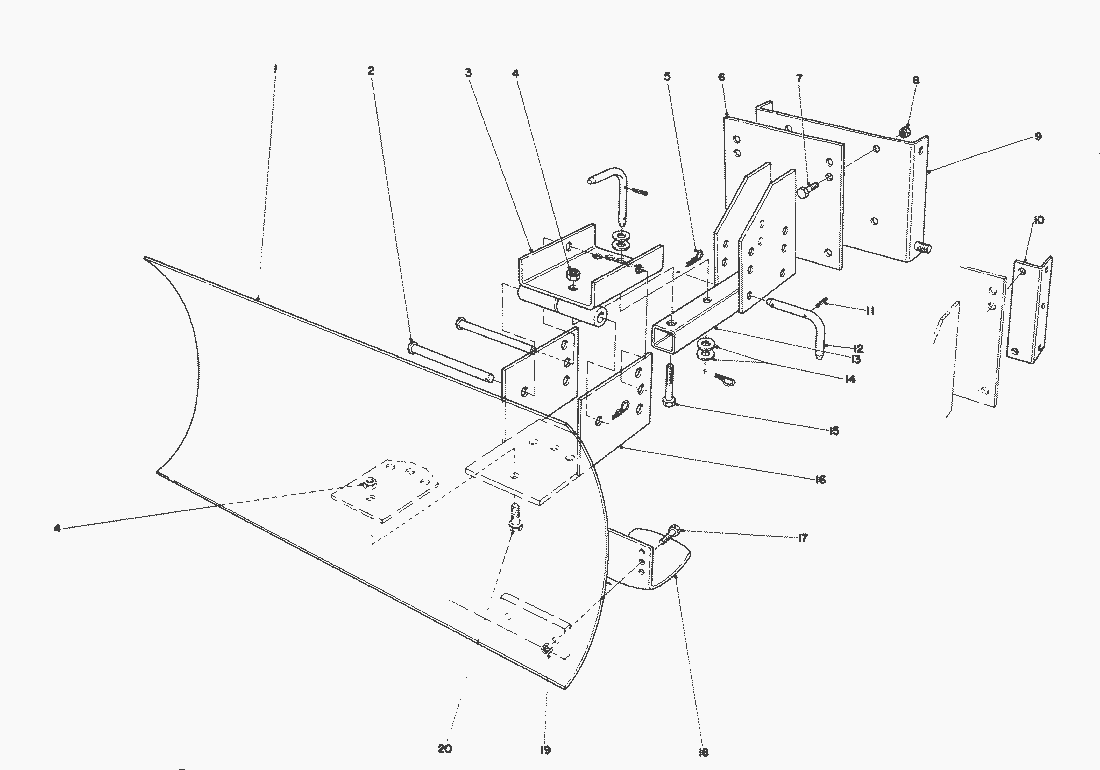

Spare Parts Lists for Toro Roth / TORO Grader Blade Assy.




pos.decriptionspare part number
20-5210
spare parts list


pos.decriptionspare part number
1Blade7-4374
2Pin283-38
3Swivel Bracket20-5090
4Locknut32152-3
5Hair Pin Cotter3290-322
6Mounting Plate Bracket (used with 826 and 1032 only)22-4920
7Capscrew323-6
8Locknut32152-2
9Mounting Plate20-5170
10Mounting Rail (Used with 421 Units only)39-7850
11Roll Pin32121-45
13Blade Tongue20-5140
14Flat Washer3256-5
15Capscrew325-11
16Blade Adjustment Plate20-5130
17Capscrew322-6
18Skid7-1023
19Locknut32152-1
20Capscrew325-5
Air Cleaner Kit (B & S)20-9960
