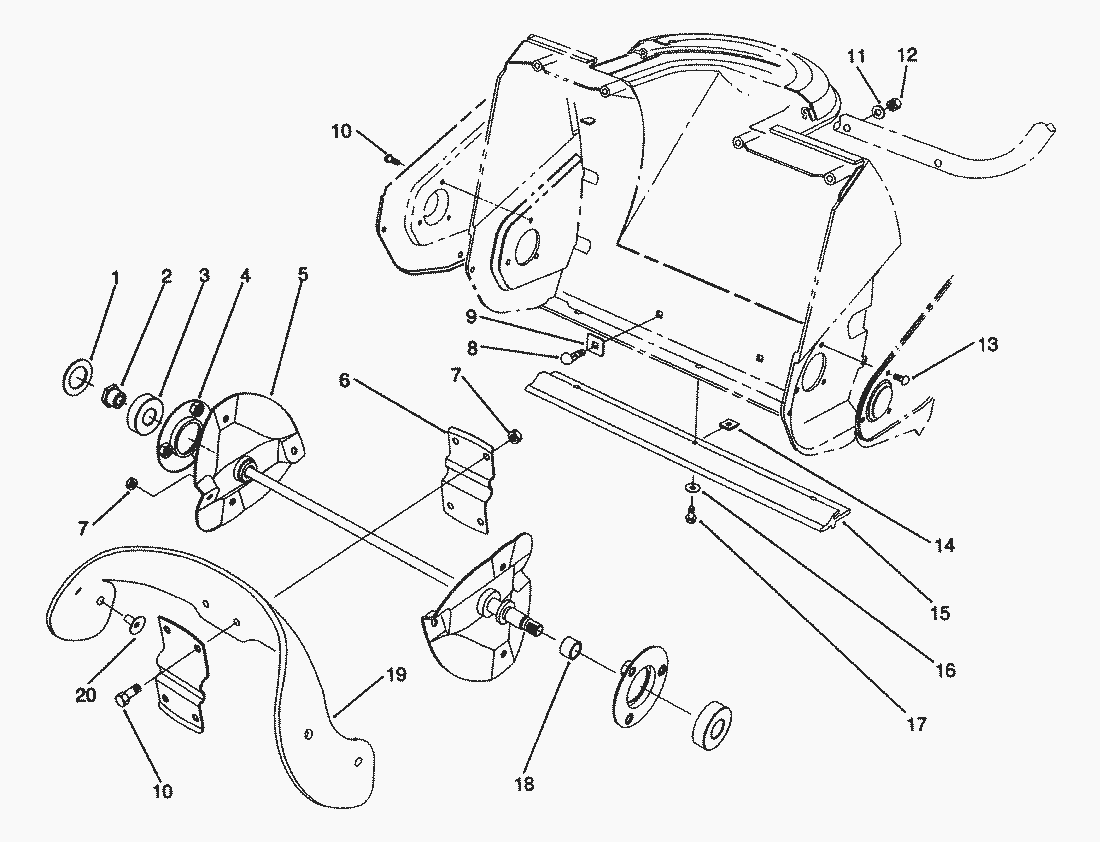

Spare Parts Lists for Toro Roth / TORO Auger Assy.

pos.	decription	spare part number
1	Washer-Rubber	75-9180
2	Nut-Rotor Shaft	75-8690
3	Ball Bearing	38-7820
4	Flange-Bearing	75-9080
5	Rotor	75-8840
6	Support-Rotor	75-8880
7	STOPMUTTER	3296-56
8	Screw-Carriage	3229-5
9	Washer-Square	75-9040
10	Screw-Hex Hd. Cap	3234-33
11	Washer	3-7501
12	MUTTER	3296-42
13	SCHRAUBE	321-3
14	J-Nut	32115-13
15	Scraper	75-8780
16	Washer	3256-14
17	Self Tapping Screw	32144-34
18	Spacer-Auger Shaft	75-8710
19	Blade-Rotor	84-1980
20	Screw-Countersunk Oval	84-1970
