back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR Powerlite
>
601/38171
>
2000001
>

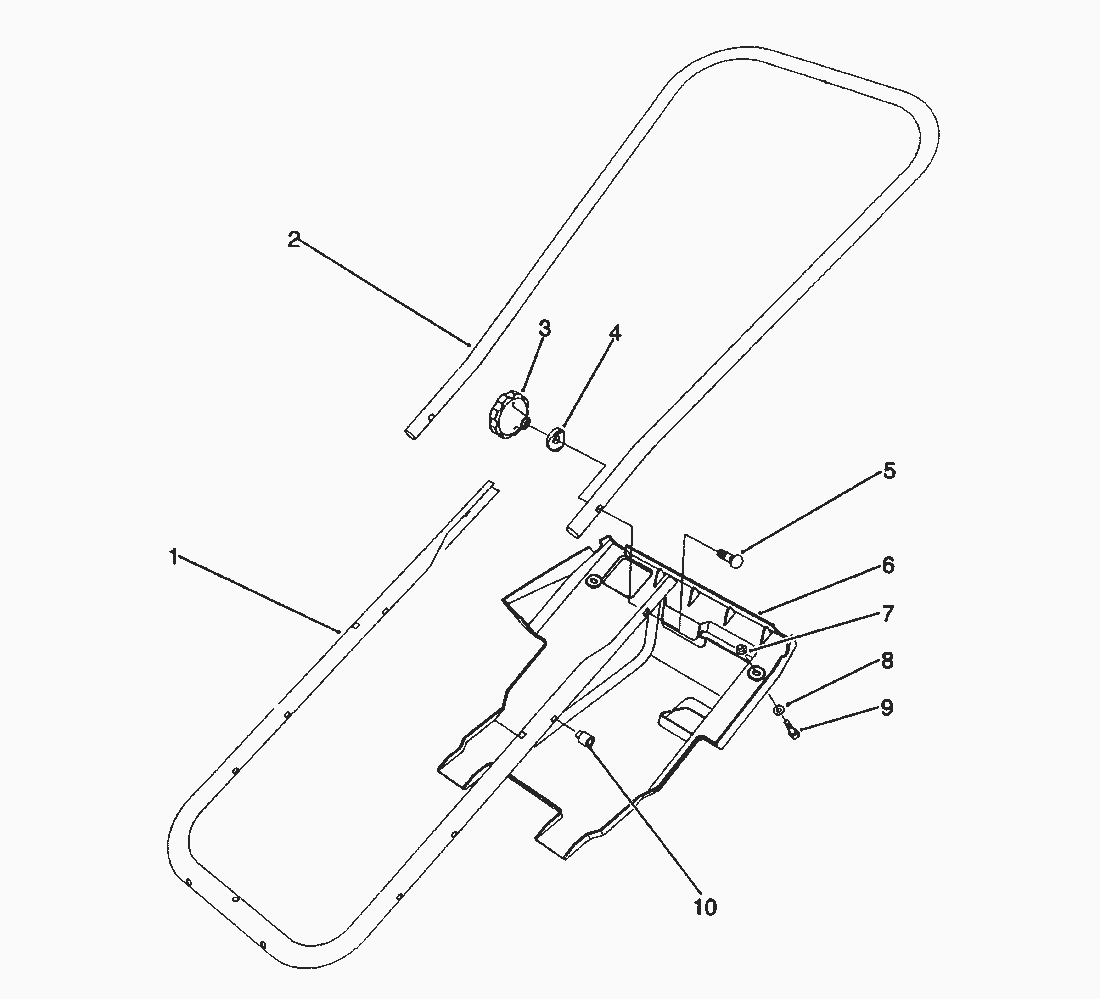

Handle Assy.
Spare Parts Lists for Toro Roth / TORO Handle Assy.
pos.
decription
spare part number
1
Tube-Frame
75-9060
2
Handle-Upper
75-9070
3
DREHKNOPF
19-4050
4
Washer-PM
75-9130
5
SCHRAUBE
17-9426
6
Shroud-Lower
75-8790
7
Nut-Push In
3290-453
8
Washer
3256-14
9
Self Tapping Screw
32144-34
10
Nut-Push
32115-17
11
Decal-Warning (Model No. 38176 Only)
84-5490
