Auger Assy.

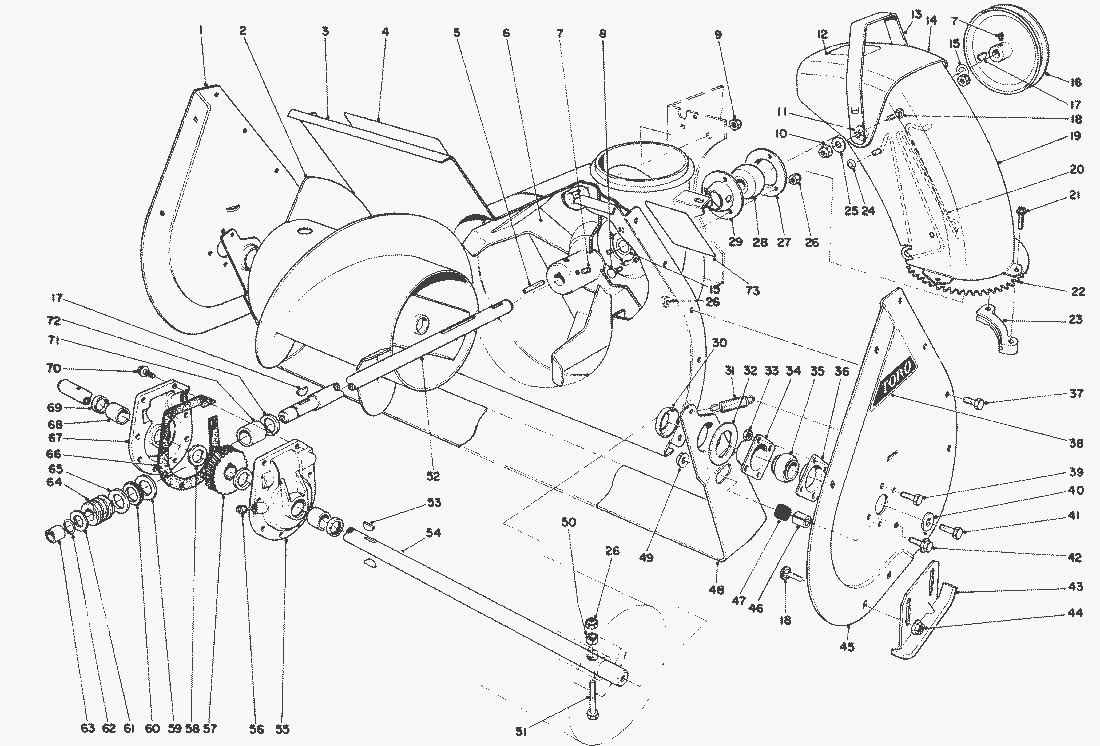

Spare Parts Lists for Toro Roth / TORO Auger Assy.
pos.
decription
spare part number
1
Sideplate Auger Right
43-7440
2
Auger Right
26-6140
Auger Left
26-6150
3
Auger Housing
40-8120
4
Decal-Auger Warning
54-9910
5
Key-Impeller
6-8590
6
Impeller
20-1260
7
Set Screw
3242-4
8
Carriage Bolt
3230-1
9
Locknut
3296-39
10
Locknut
32152-2
11
Washer Rubber
20-4320
12
Decal-Discharge
63-3760
13
Handle Deflector
20-1410
14
Deflector Chute (Incl. Ref.
11-9379
15
Thrust Washer
3-0737
16
Pulley Impeller
20-1310
17
Key Woodruff
3257-23
18
Carriage Bolt
3231-27
19
Chute
56-2450
20
Wire Chute
54-9770
21
Special Screw
27-0210
22
Swivel Gear Chute
43-7470
23
Retainer Chute
40-8150
24
Pushnuts
3290-326
25
Washer Belleville
3290-340
26
MUTTER
3296-29
