> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 > 612/38080 > 8000001 > Recoil Starter No. 590630

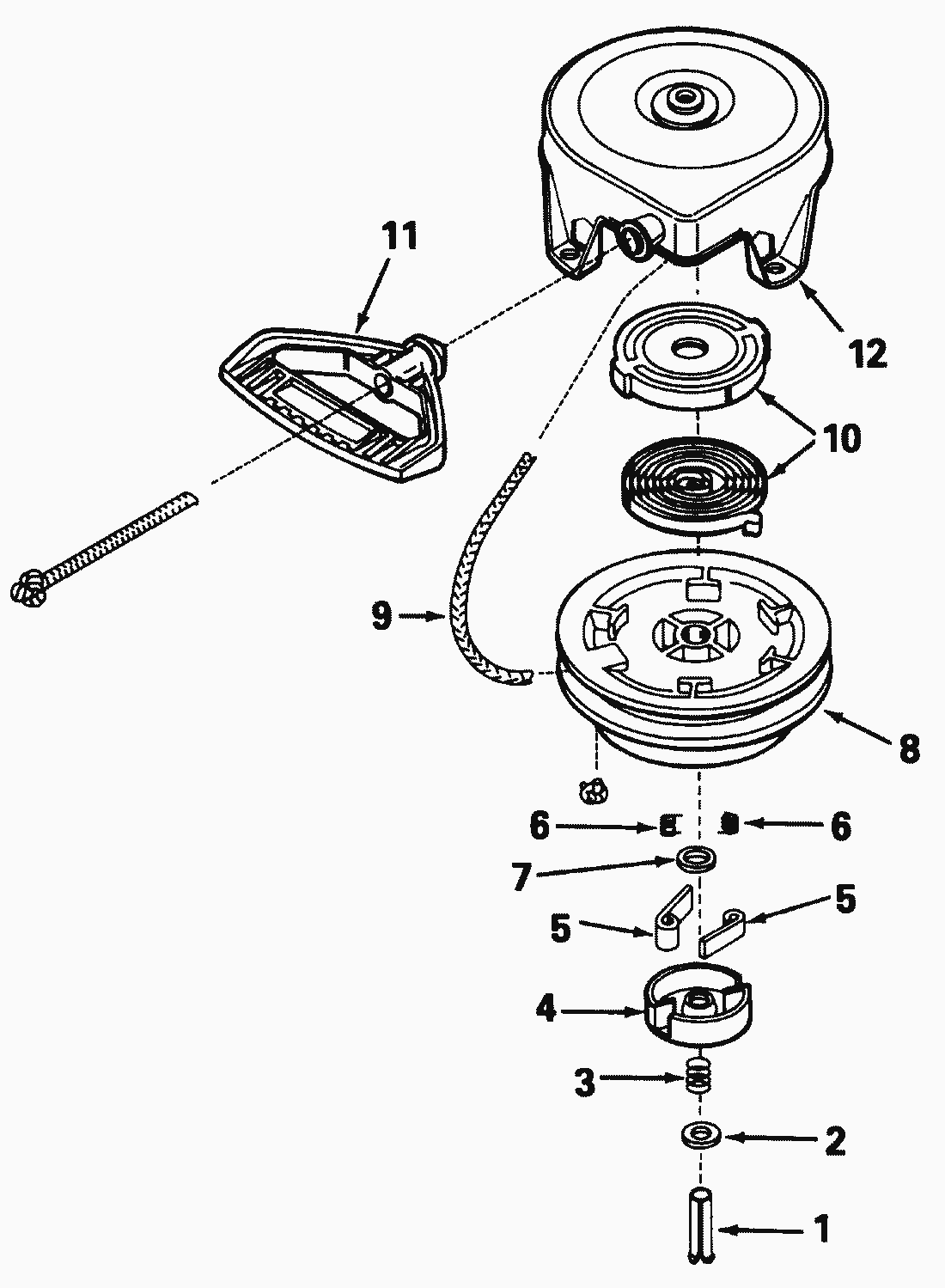

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590630




pos.decriptionspare part number
590599A
spare parts list


pos.decriptionspare part number
2Washer590600
3Spring-Brake590598
4Retainer590627
5Dog, Starter590641
6Spring, Dog590617
7Washer590601
8Pulley590628
9Rope, Starter590451A
10Spring & Keeper Assy.590629
11Handle-Mitten Grip Starter590574
12Housing Assy., Starter590631
