> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38181 > 5900001 > Control Panel & ShroudING Assy.

Spare Parts Lists for Toro Roth / TORO Control Panel & ShroudING Assy.




pos.decriptionspare part number
12-4659
94-2796

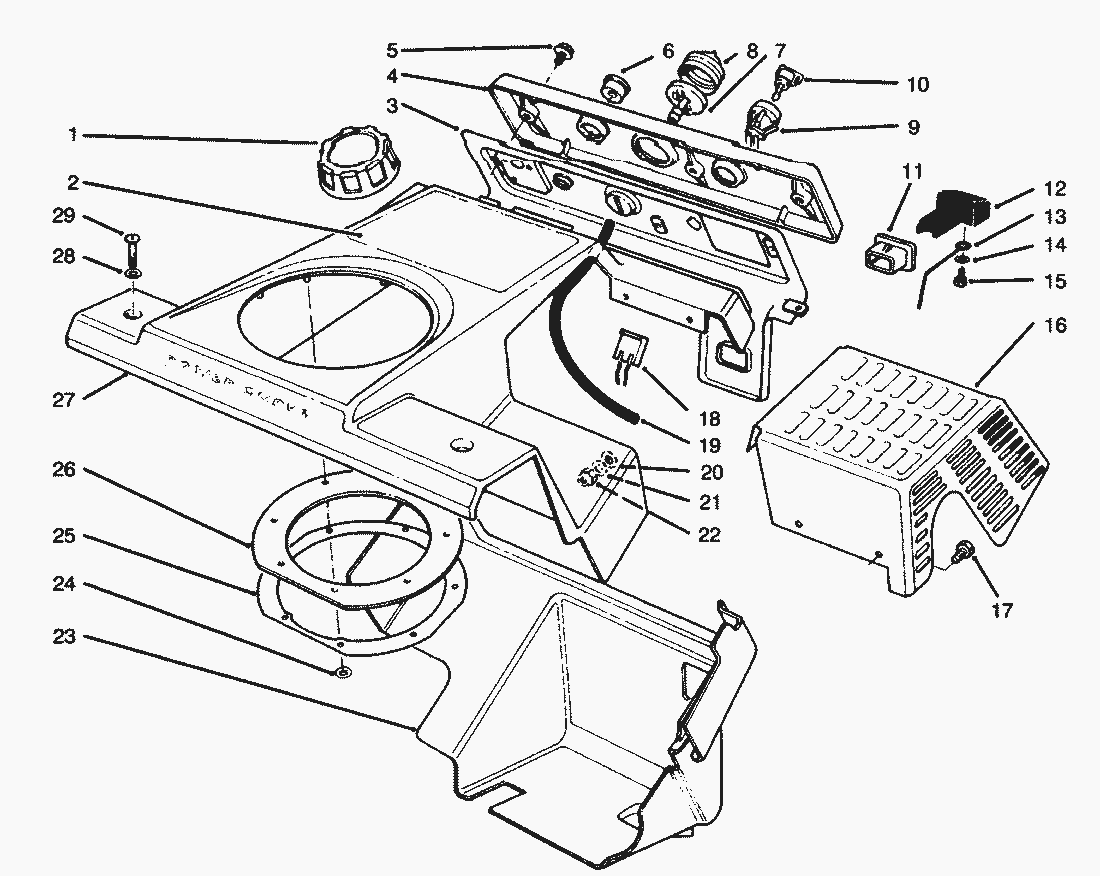

spare parts list


pos.decriptionspare part number
1Gas Cap Assembly55-3573
2Decal-CCR-200072-9970
4Nameplate-Control (Model No. 38180)55-9350
Nameplate-Control (Model No.38181)94-2570
5Screw-Self Tapping32144-112
6Guide-Starter Rope55-9410
7Body-Primer44-2750
8Bulb-Primer66-7460
9Switch40-5940
10Key-Ignition63-8360
11Fitting-Choke Control55-8820
12Control-Choke (Model No. 38180)55-8810
Control-Choke (Model No. 38180C)55-8811
13Linkage-Choke61-4651
14Washer3256-49
15Screw-Pan Hd.32144-111
16Shield-Heat55-9210
17Screw-Hex. Hd.32105-8
18Connector Body218-532
19Hose-Primer44-3171
20Washer-Rubber55-9660
21Washer3256-14
22Locknut3296-12
23Shroud-Lower55-8791
24Pushnut3290-474
25Retainer-Chute Seal55-9540
26Seal-Chute55-9260
28Washer3256-22
29Screw-Phillips3250-32
