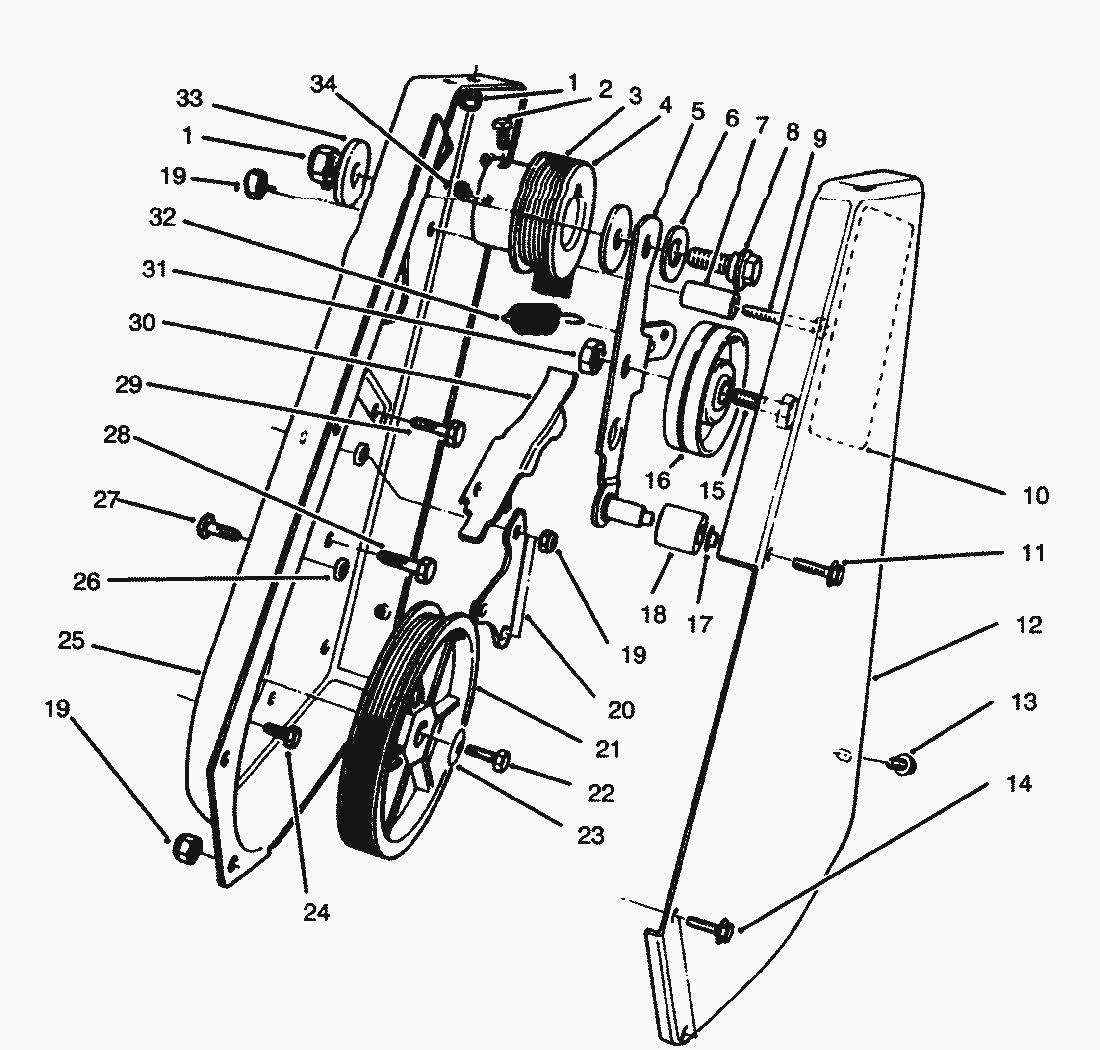

Spare Parts Lists for Toro Roth / TORO Drive Assy.

pos.	decription	spare part number
1	MUTTER	3296-29
2	Screw-Set, Sq. Hd.	3241-7
3	Belt-Drive	55-9300
4	Pulley-Engine	55-9180
5	Idler Arm Assembly (Incl. Ref.	12-8279
6	Washer	25-5640
7	Guide-Drive Belt	55-9530
8	Shoulder Screw	27-0410
9	Screw-Hex. Hd.	321-13
10	Decal-Belt Routing	60-9480
11	Screw-Special	36-3860
12	Cover-Drive	55-9010
13	Hex Washer Hd. Thread Forming Screw	12-3270
14	Screw-Hex. Hd.	32105-15
15	Capscrew	323-29
16	Pulley-Idler	55-9290
17	SICHERUNGSKAPPE	32112-11
18	Roller-Brake	55-9520
19	MUTTER	3296-42
20	Pivot Plate Assembly	55-9570
21	Pulley-Rotor	60-9320
22	Screw-Cap Hex Hd.	321-30
23	Washer-Belleville	3290-456
24	Screw-Hex. Hd.	32105-8
25	Sideplate-L.H.	55-8851
26	Spacer	55-9620
27	Screw-Button Hd.	3274-31
28	Capscrew	321-4
29	Capscrew	322-3
30	Arm-Brake	55-9550
31	Locknut	32152-2
32	Spring-Extension	55-9280
33	Washer	5-4460
34	Screw-Set	3245-41
