> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2400 > 640/38414 > 9900001 > Electric Starter Assy. (120 Volt)

Spare Parts Lists for Toro Roth / TORO Electric Starter Assy. (120 Volt)

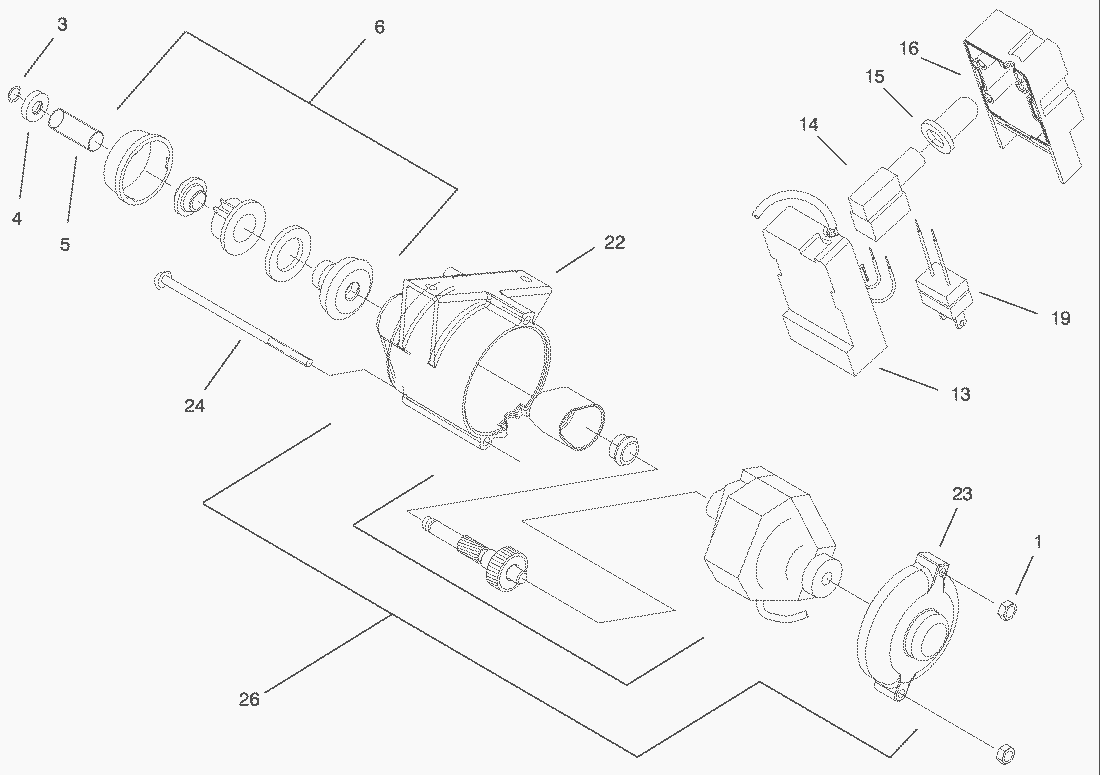

spare parts list


pos.decriptionspare part number
1Nut3296-2
3Retaining Ring61-4680
4Pinion Stop61-4670
5Spring61-4690
6Pinion Assembly61-4700
13Base-Switch Housing98-2253
14Starter Switch61-4820
15Boot-Switch61-4810
16Cap-Switch Housing98-2254
19Plug-Power94-9933
22Housing-Mtg95-1795
23Housing Motor95-1796
24Screw-PPH95-6354
25Starter Motor ASM95-7639
26Housing ASM95-7638
Cord-7 Ft.28-9170
