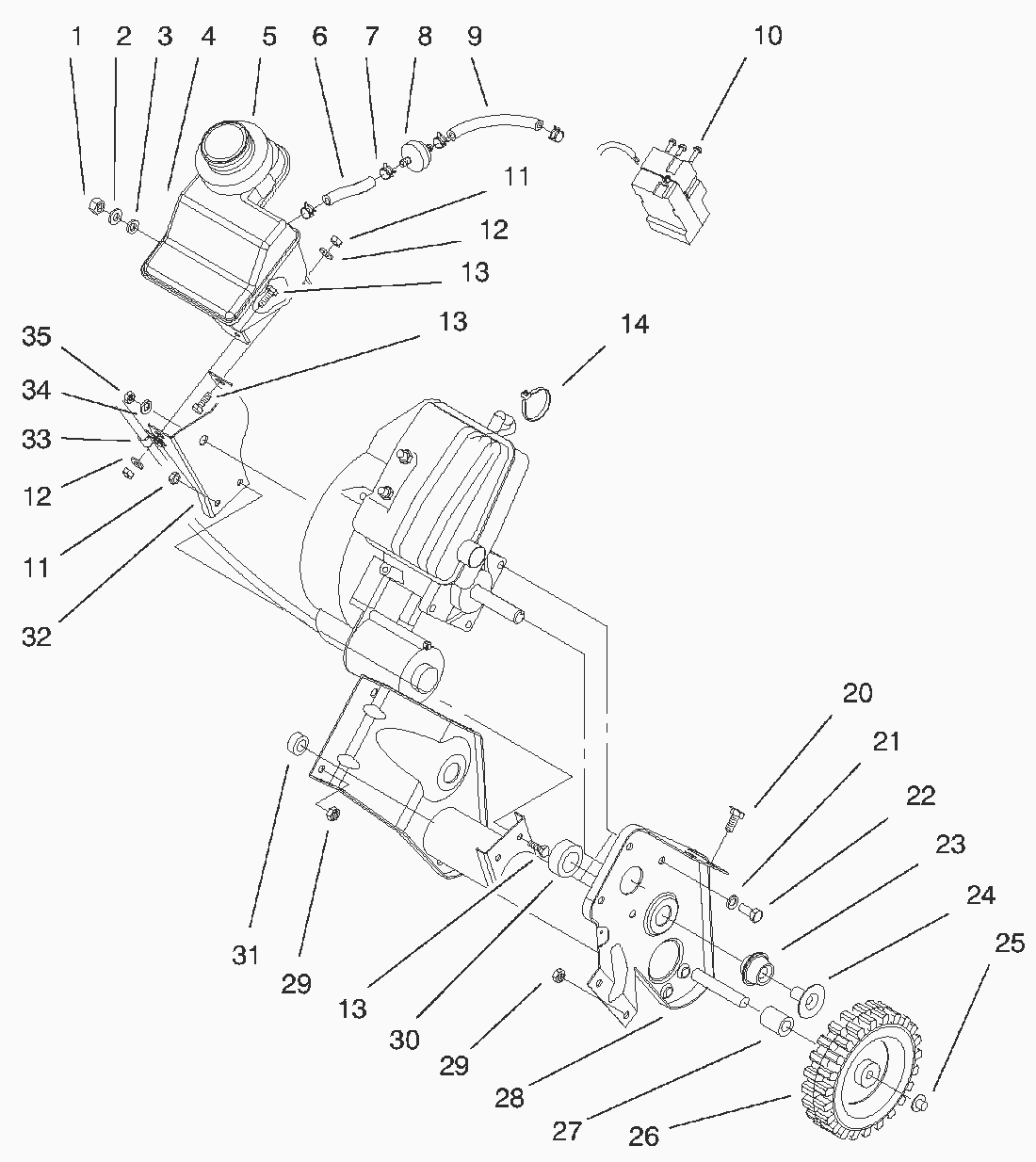

Spare Parts Lists for Toro Roth / TORO Engine & Fuel Tank Assy.

pos.	decription	spare part number
1	Nut-Lock	32152-8
2	Washer	3256-23
3	Rubber Grommet	237-89
4		94-9920
5	Seal-Tank	55-9310
6	Hose-Fuel	49-2482
7	Clamp-Hose	2412-98
8	BENZINVORFILTER	56-6360
9	Hose-Gas	94-9932
10	Thread Forming Screw	32144-27
11	MUTTER	3296-42
12	Washer	3256-22
13	Capscrew	321-4
14	Cable Tie	250-4
20	Capscrew	322-3
21	Washer-Belleville	3290-456
22	Capscrew	322-3
25	Pushnut	32112-14
26	Wheel	66-6510
27	Spacer-Wheel	66-6501
28	Frame	95-1892-03
29	MUTTER	3296-29
31	Spacer-Wheel	66-6500
32	Support-Recoil	94-9918-03
33	Clamp-Cable (Model No. 38175 Only)	2412-91
34	Washer-Engine Support	71-5320
35	Locknut	3296-16
