> Roth / TORO > Hand operated > Snowthrower > Two stage > 724 > 637/38073 > 7900001 > Electric Starter Kit No. 38-7590 (Optional)

Spare Parts Lists for Toro Roth / TORO Electric Starter Kit No. 38-7590 (Optional)




pos.decriptionspare part number
35449
35913
35453

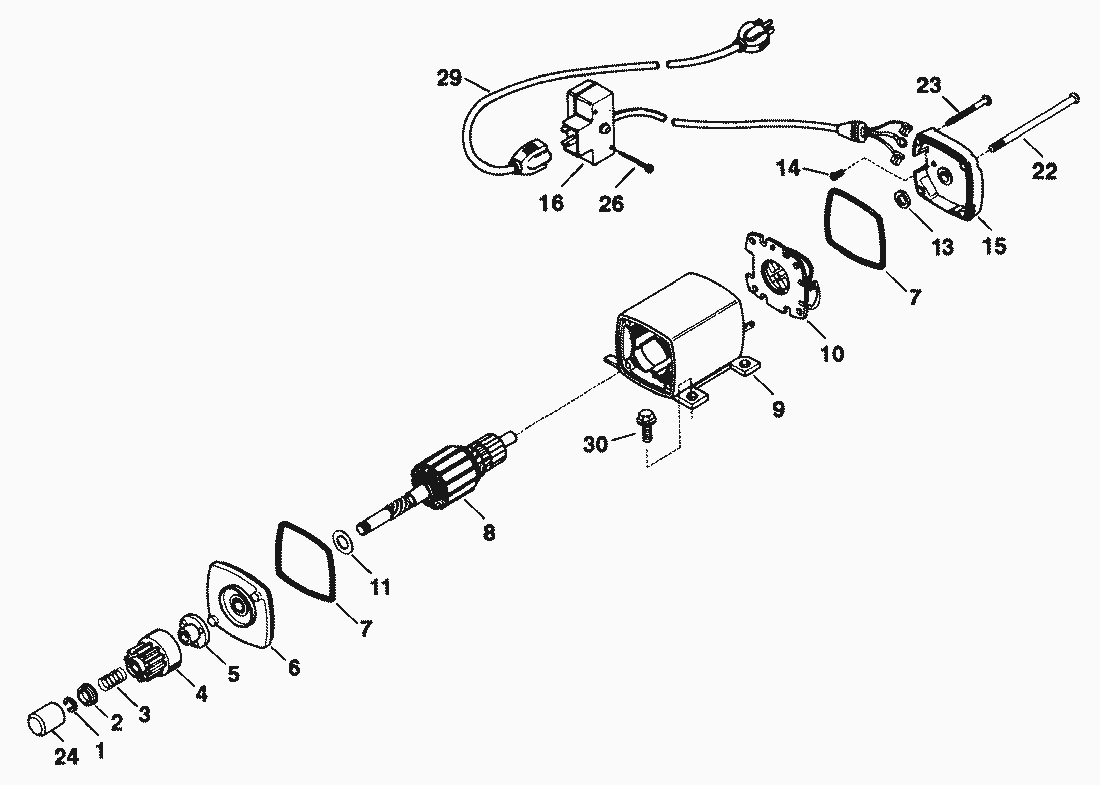

spare parts list


pos.decriptionspare part number
1Ring, Retaining33842
2Retainer, Spring33430
3Spring, Anti-drift33431
4Gear33432
7O Ring35450
8Armature35914
9Housing Assembly35457A
10Card Assembly-Brush35452A
11Washer-Thrust35911
13Washer, Thrust590500
14Screw-Ground33441
16Box Assy., Switch35454
22Bolt-Case35458
23Screw, Grounding35456
24Cover, Dust33451
26Screw, Hex Hd. Self-Tap650819
2932450B
30Screw, Fil. Hd. Sems30063
