> Roth / TORO > Hand operated > Snowthrower > Two stage > 724 > 637/38073 > 7900001 > Recoil Starter No. 590707

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590707




pos.decriptionspare part number
590599A

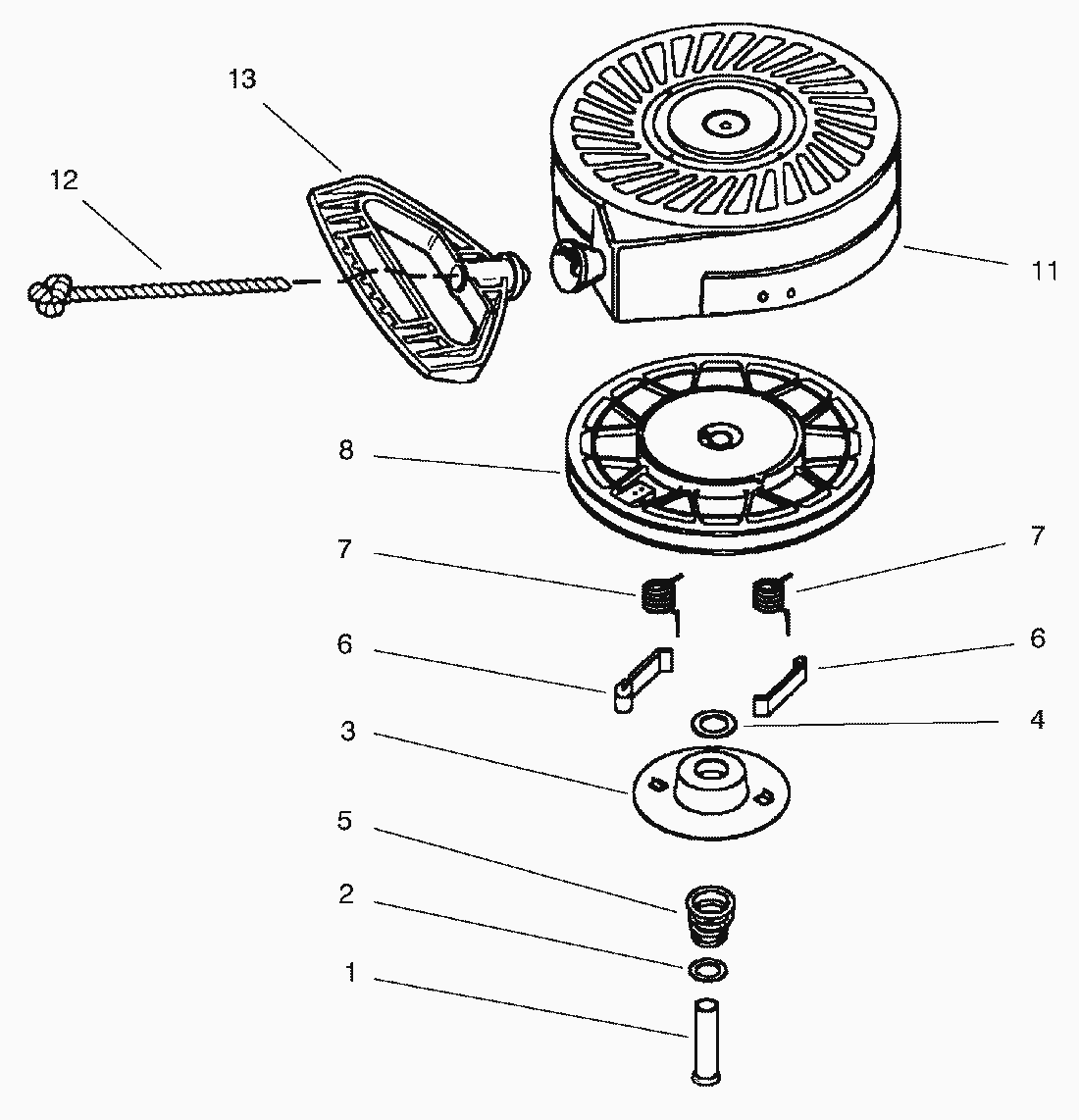

spare parts list


pos.decriptionspare part number
2Washer590600
3Retainer590696
4Washer590601
5Brake Spring590697
6Starter Dog590698
7Dog Spring590699
8Pulley & Rewind Spring Assembly590709
11Housing Assembly590708
12Rope, Starter590535
13Handle-Mitten Grip Starter590574
