> Roth / TORO > Hand operated > Snowthrower > Two stage > 624 PowerShift > 627/38505 > 9000001 > Engine Assy.

Spare Parts Lists for Toro Roth / TORO Engine Assy.

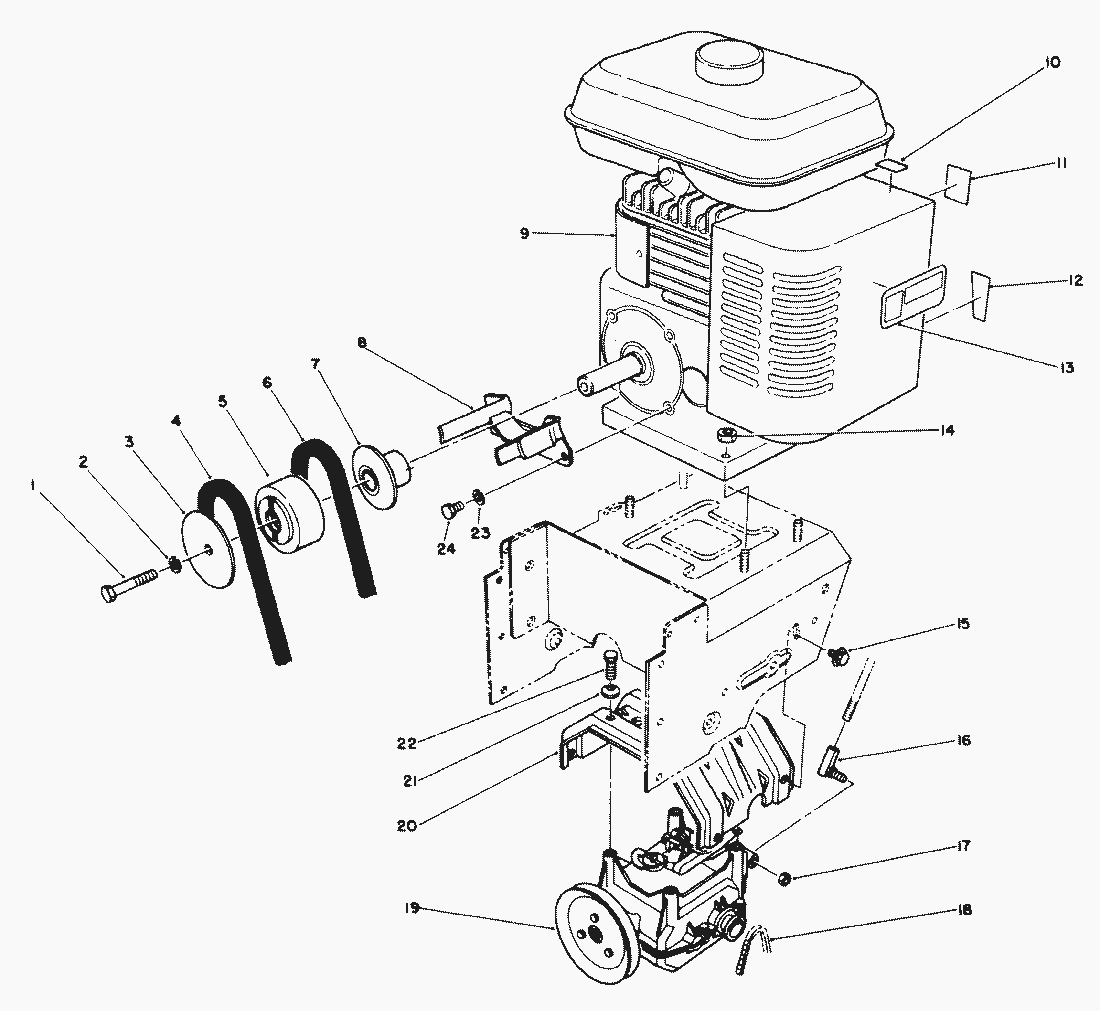

spare parts list


pos.decriptionspare part number
1Screw-Cap Hex. Hd.3211-9
2Washer-Lock3253-21
3Sheave Half-Impeller62-0910
4Belt-Impeller63-2960
5Hub-Sheave62-0900
6Belt-Traction63-2950
7Sheave Half-Traction62-0890
8Guide-Belt68-7490
9Engine-6 hp.68-8280
10Decal-Primer68-8540
11Decal-Choke (Model No. 38500)68-9030
Decal-Choke (Model No. 38505)63-3490
12Decal-Throttle63-3190
13Decal-Hot Surface (Model No. 38500)62-7290
Decal-Hot Surface (Model No. 38505)63-2310
14Flange Nut32128-20
15Screw-Hex. Washer Hd.3234-7
16Joint-Ball63-2640
17Locknut3296-39
18Chain-Drive63-2930
19Transmission Assembly66-8030
20Frame-Transmission63-2990
21Washer-Belleville3290-461
22Screw-Cap Hex Hd.11-0590
23Lockwasher3253-4
24Screw-Cap Hex Hd.3210-1
