Spare Parts Lists for Toro Roth / TORO Handle Assy.

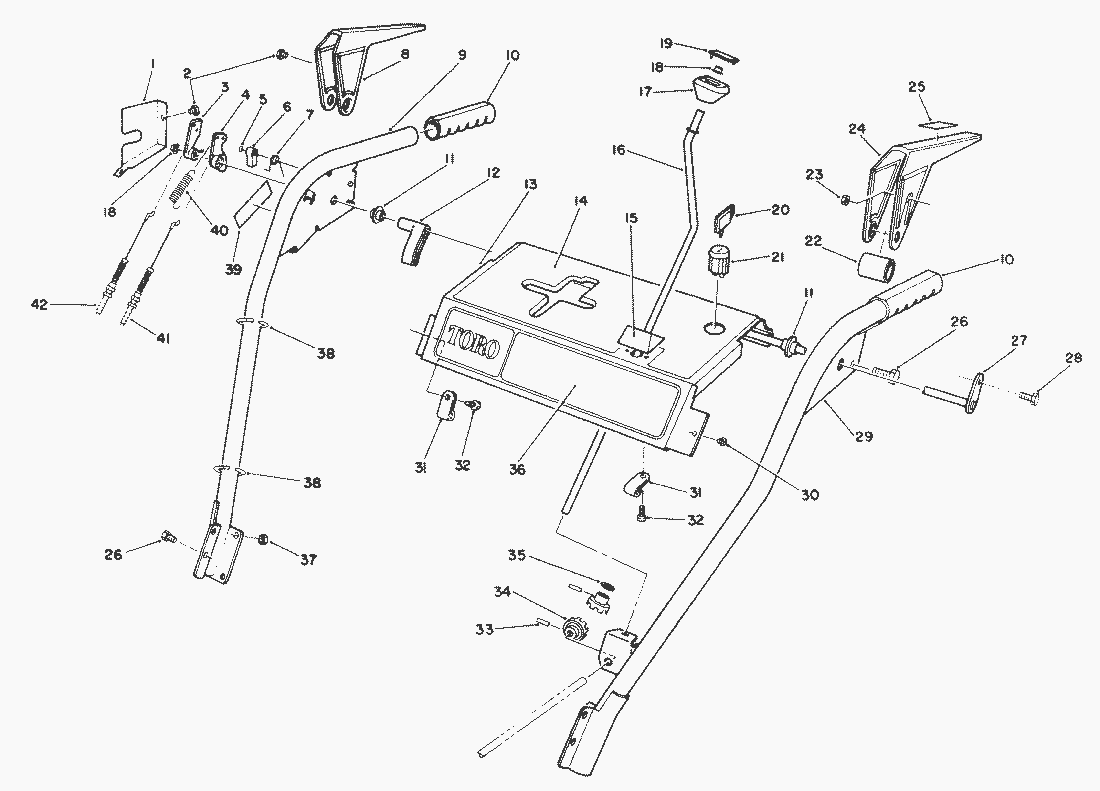

spare parts list

pos.	decription	spare part number
1	Cover-Lever Lock	63-2170
2	Screw	2210-250
3	Tang-Locking	62-0300
4	Cam-Release	62-0290
5	Ring-Retaining	32151-66
6	Latch-Lock	62-0280
7	Spring-Torsion	63-2910
8	Lever-Impeller	62-1050
9	Handle-R.H.	62-1380
10	Handlegrip	66-7850
11	Bushing-Lever	62-1070
12	Lever-Trip	62-1640
13	Panel-Control	66-8100
14	Decal-Panel Top (Model No. 38500)	63-2540
	Decal-Panel Top (Model No. 38505)	63-2550
15	Plate-Guide	62-1490
16	Rod-Chute Crank	63-2160
17	Knob-Chute Control	62-1320
18	Push-On Speed Nut	3290-320
19	Cover-Knob	62-1520
20	Key-Switch	62-7770
21	Switch	40-5940
22	Spacer-Traction Lever	63-3380
23	Nut	3296-2
24	Lever-Traction	62-1060
25	Decal-Lever (Model No. 38510)	63-3050
26	Screw-Hex. Washer Hd.	3234-7
27	Rod-Cross	63-2030
28	Screw	3290-359
29	Handle-L.H.	66-8090
30	Self Tapping Screw	32104-76
31	Clip-Wire	2412-101
32	Screw-Hex Flange Hd.	32104-118
33	Roll Pin	32121-50
34	Gear-Universal	62-1460
35	Washer-Rubber	62-1230
36	Decal-Panel Front	63-2500
37	Nut-Lock	3296-47
38	Tie Wrap	3290-378
39	Decal-Adjustment (Model No. 38500)	63-3460
	Decal-Adjustment (Model No. 38505)	63-3470
40	Spring-Extension	63-2720
41	Cable-Traction	63-2710
42	Cable-Impeller	63-2700
	Harness-Wire	63-3430
