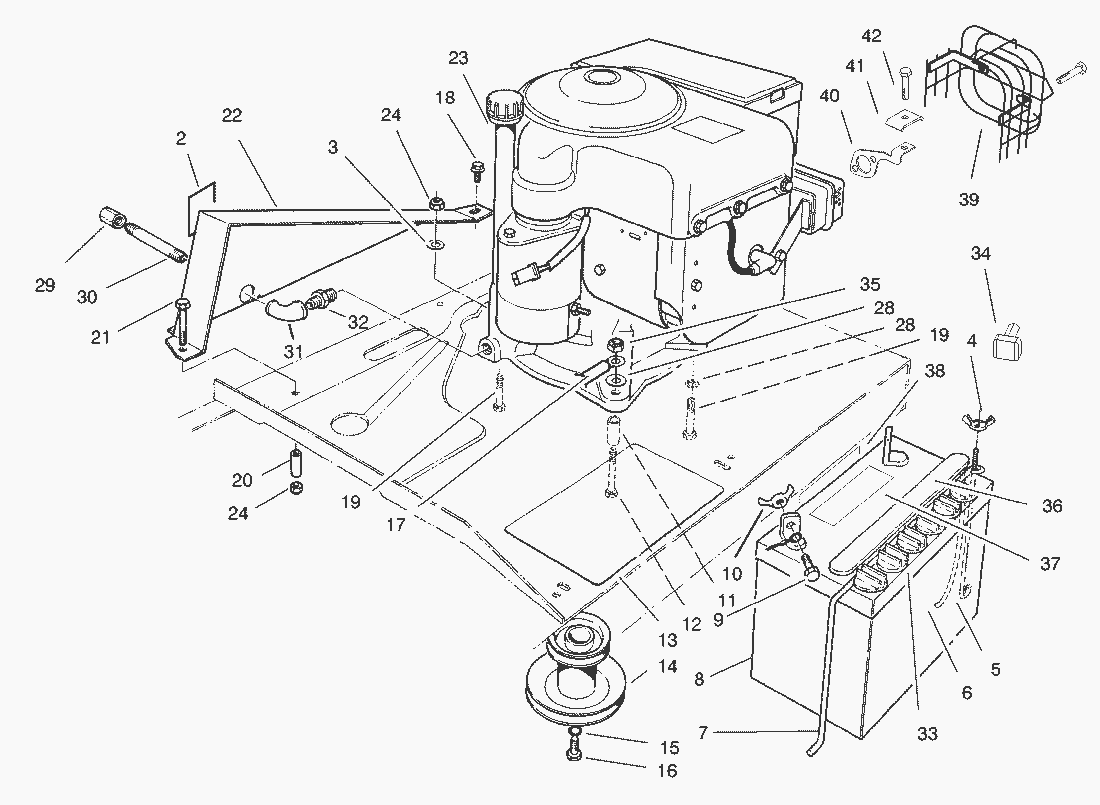

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
		94-6427

pos.	decription	spare part number
2	Decal-Europe Noise	114621
3	Washer	3256-23
4	Nut-Wing	32103-12
5	Post-Battery	56-7720
6	Vent-Tube	56-2540
7	Hold Down-Battery	56-7710
8	Battery-7 Plate	80-2600
9	Capscrew	321-4
10	Nut-Wing	32103-22
11	Spacer	80-4560
12	Screw-Cap Hex. Hd.	322-12
13	Pad-Antiskid	62-4300
14	Pulley-Engine	98-0712
15	Washer-Flat	3256-25
16	Screw-Cap Hex. Hd.	62-3760
17	Assembly-Wire Battery to Ground	54-3091
18	Screw-Wash. Hd., Tap.	32144-14
19	Capscrew	322-7
20	Guide-Belt	67-0920
21	Capscrew	322-10
22	Guard-Chain	67-0962-01
23
24	MUTTER	3296-29
28	Lockwasher	3255-8
29	Pipe Cap	288-2
30	Pipe Nipple	289-34
31	Elbow-Street	2811-17
32	Reducer	2812-1
33	Cap-Battery	218-560
34	Boot-Battery Terminal	28-8080
35	Nut	32153-3
36	Decal-Battery	93-9354
37	Decal Danger (Only On: 72064)	93-7276
38	Decal-Battery	93-6668
39	Guard-Muffler	94-6426
40	Bracket-Muffler Guard	94-6425
41	Tab-Muffler Guard	94-6424
42	Self Tapping Screw	32104-76
	Reducer-Throttle	88-4490
