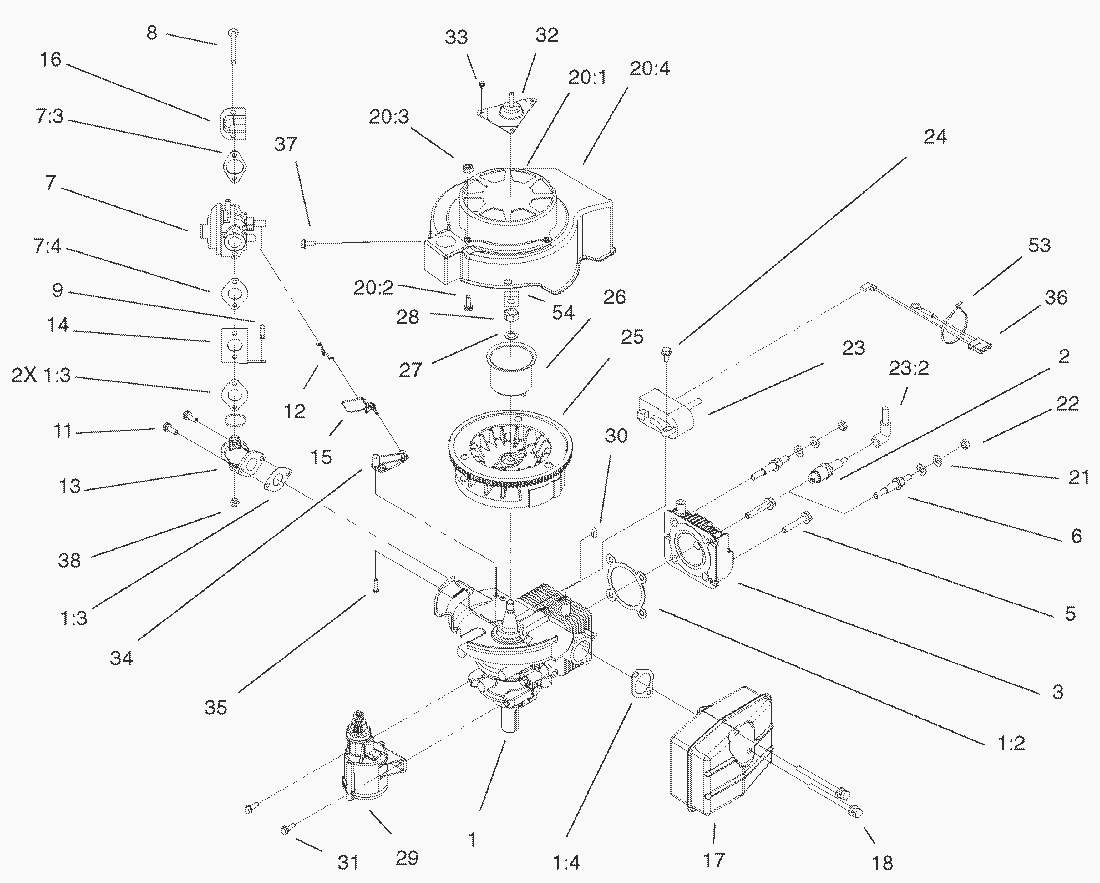

Engine Assy. (Model 38601, 38602)
Spare Parts Lists for Toro Roth / TORO Engine Assy. (Model 38601, 38602)
pos.
decription
spare part number
1
Short Block ASM Elec S4
100-9530
12
Gasket-Head
94-5778
13
Intake Gasket
94-5795
14
Gasket-Exhaust
95-1778
2
ZUENDKERZE
50-1170
3
Head
94-5776
5
Bolt
94-5780
6
Stud
94-5779
7
Carburetor Assembly
100-9577
73
DICHTUNG
81-0090
74
Intake Gasket
94-5795
8
Screw
612507
9
Spring Governor
94-5794
11
Screw
609482
12
Link-Governor
94-5797
13
Manifold
94-5798
14
Bracket-Spring
94-5799
15
Vane-Air
95-1750
16
Spit-Cup
95-1751
17
Muffler ASM
95-1767
18
Screw
613282
20
201
Recoil
95-1781
2011
Rope
613773
2012
Retainer And Clip
100-9540
202
Machine Screw
3290-321
203
Nut
3296-2
204
Shroud (Model 38437, 38438)
95-1793-03
21
Washer
146368
22
Nut-Lock
146501
23
Module-Ignition
99-2911
232
Lead-High Tension
99-6719
24
Screw-HWH
613208
25
Flywheel And Ring Gear ASM
100-9549
26
Cup-Starter
95-1786
27
Washer-Lock
3253-6
28
Nut
130743
29
Electric Starter
99-6707
30
Key
607199
31
Screw
95-1850
32
Bracket & Stud ASM
95-1895
33
Screw-Thread Forming
94-2789
33
Screw
92-6031
33
Lockwasher
3255-10
34
Mount-Vane
95-1765
35
Screw-HWH
98-1375
36
Harness Wire
100-9586
37
Screw
700094
38
Nut-Hex
700755
53
Tie Strap
317893
