> Roth / TORO > Hand operated > Snowthrower > Single stage > Snow Commander > 646/38602 > 220000001 > Lower Handle Assy.

Spare Parts Lists for Toro Roth / TORO Lower Handle Assy.




pos.decriptionspare part number
100-9864

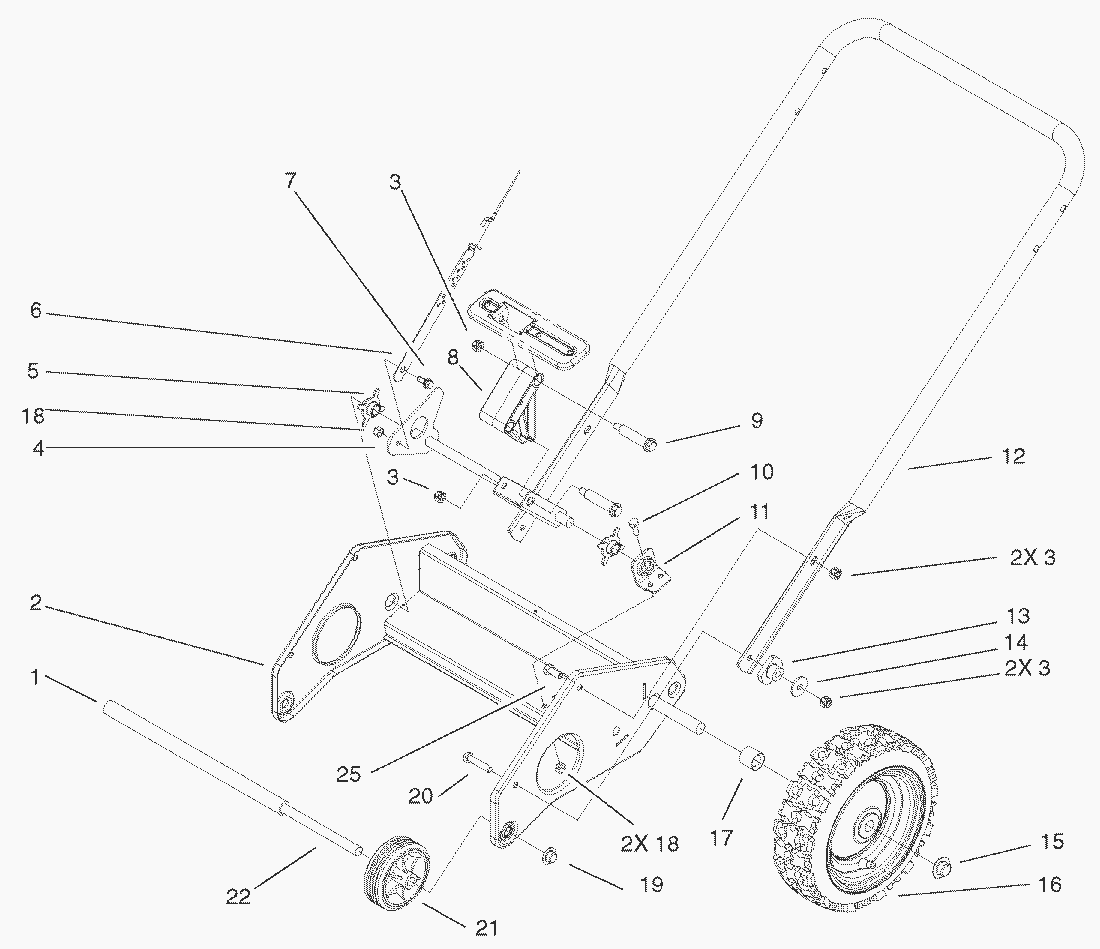

spare parts list


pos.decriptionspare part number
1Spacer-Axle, Front100-9878
2Frame Assy-Wheel100-9887-03
3MUTTER3296-29
4Pivot ASM Wa104-0853
5Bushing-Pivot Rod104-0855
6Adjuster-Pivot Cable104-0899
7Screw-Shoulder104-4102
8Block-Pivot100-9896
9Bolt-Shoulder100-9880
10Capscrew321-4
11Support-Pivot Rod100-9879
12Lower Handle100-9890-03
13Bushing-Pivot100-9883
14Washer3256-82
15Pushnut104-4111
16Tire & Wheel Assy-10100-9869
17Spacer-Axle, Rear104-0892
18MUTTER3296-42
19Pushnut32112-14
20Capscrew322-7
22Axle-Front100-9875
25Capscrew322-3
