> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 602/38183 > 210000001 > Engine, Side Plate & Wheel Assy.

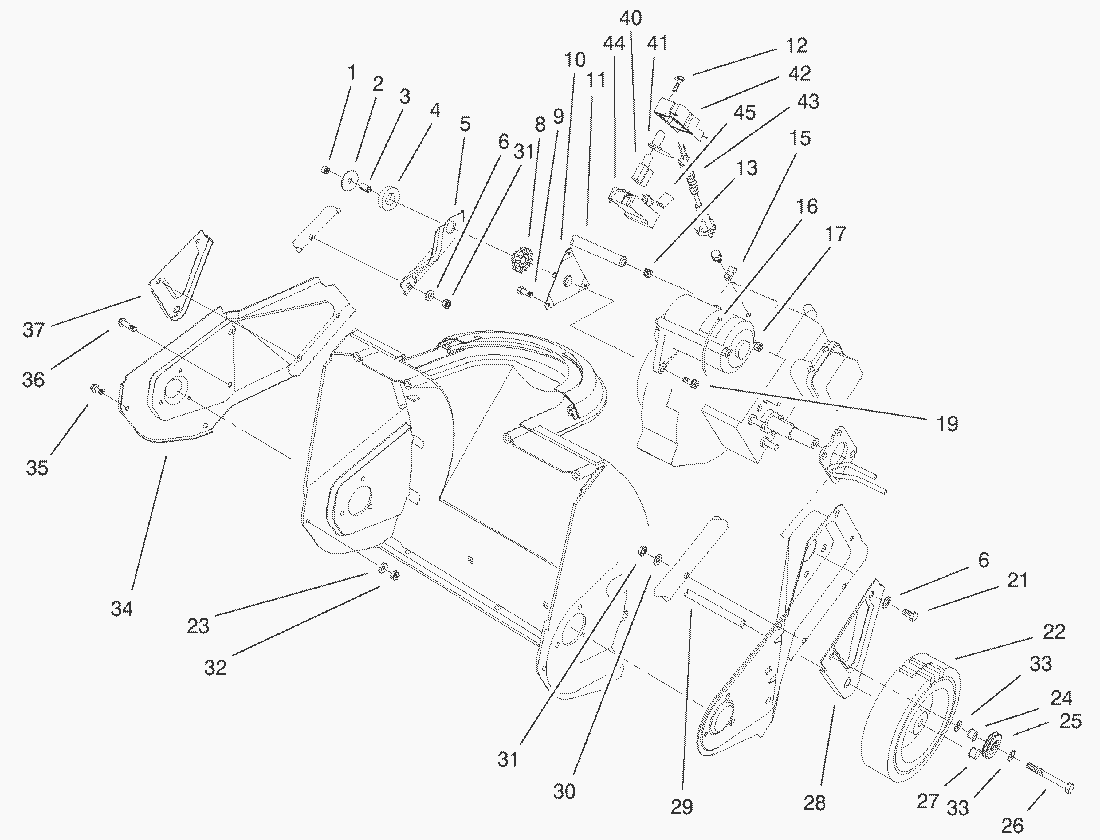

Spare Parts Lists for Toro Roth / TORO Engine, Side Plate & Wheel Assy.

spare parts list

pos.	decription	spare part number
1	Locknut	3296-16
2	Washer-Fender	3256-58
3	Spacer	80-0650
4	Ring-Isolator	95-1903
5	Support-Engine	75-8980-03
6	Washer-Plain	3256-1
8	Bushing-Isolation	75-9100
9	Screw-Thread Forming	94-2789
10	Bracket-& Stud Assembly	92-6012
11	Hose-Fuel	49-2483
12	Thread Forming Screw	32144-27
13	Clamp-Hose	2412-98
15	Clamp-Cable (Model No. 38175 Only)	2412-91
16	Strap-Motor (Model No. 38175 Only)	250-7
17	Starter Motor ASM(Serv)(Model 38178)	98-2276
19	Screw-Hex Sternantrieb	80-0700
21	Capscrew	321-10
22	Wheel	23-3250
23	Washer	3256-14
24	Spacer	55-9370
25	Cable-Pulley (Model 38177, 38178)	95-7949
26	Capscrew	321-11
27	Push-On Speed Nut	3290-320
28	Bracket-Wheel L.H.	75-8910
29	Axle	27-0062
30	Washer	3-7501
31	MUTTER	3296-42
32	Nut	3296-2
33	Washer-Plain	3256-1
34	Sideplate-RH	75-8820-03
35	Screw-Hex Washer Hd.	32105-23
36	Screw-Hex Washer Hd.	46-8094
37	Bracket-Wheel	75-8900-03
40	Switch	36-8340
41	Boot-Switch	36-8350
42	Switch-Cap Housing (only on: 38183)	100-3442
43	Plug-Power (only on: 38183)	100-3556
44	Switch-Base Housing (only on: 38183)	100-3441
45	Spacer-Plug (only on: 38183)	99-6088
	Cord-7 Ft.	28-9170
