Spare Parts Lists for Toro Roth / TORO Handle & Lower Shroud Assy.

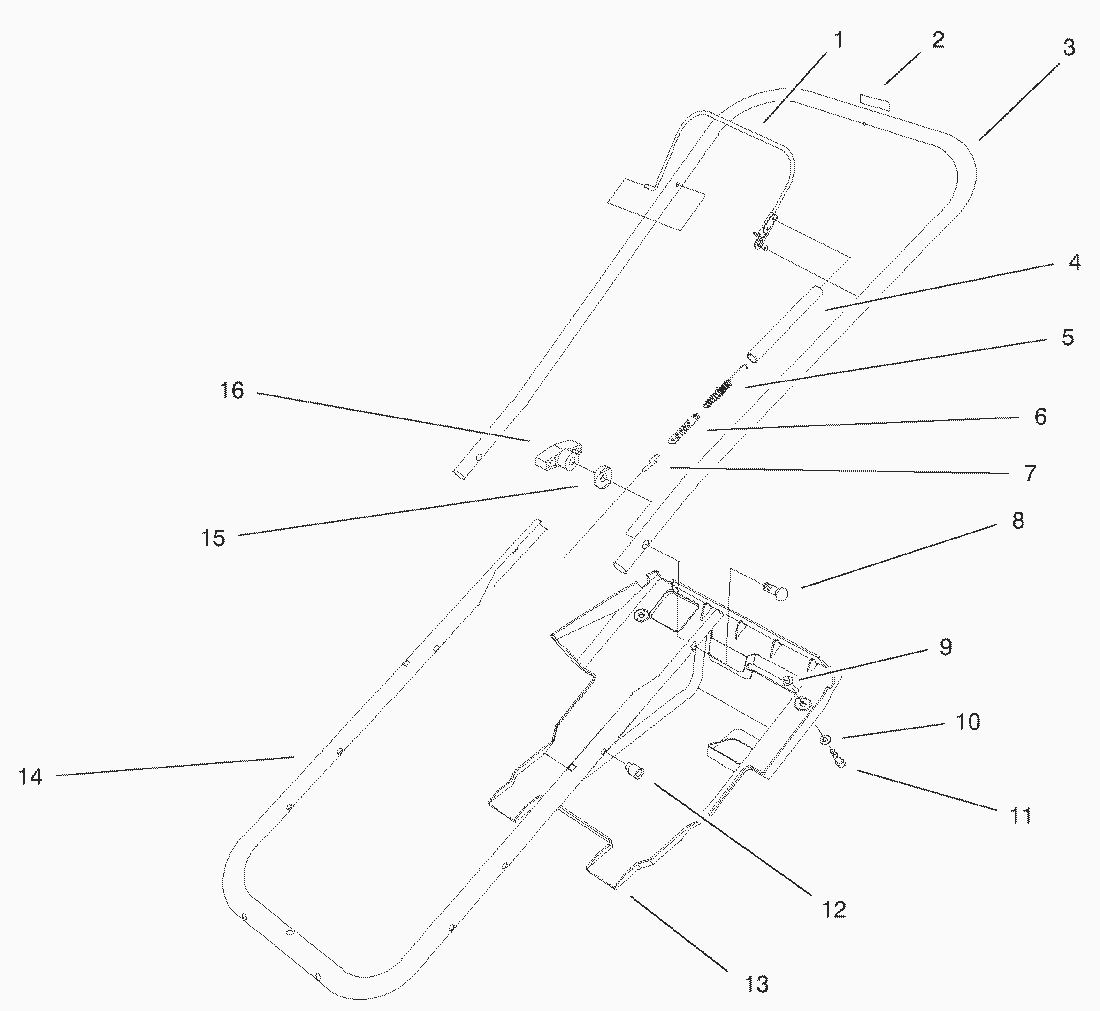

spare parts list


pos.decriptionspare part number
1Bail (Model 38177, 38178)95-7943-03
2Decal-Rotor Drive94-2577
3Handle-Upper100-5453
4Cover-Spring71-5530
5Spring-Extension71-5480
6Adjuster-Cable71-5330
7Cable-Clutch (Model 38177, 38178)94-9949
8SCHRAUBE17-9426
9Grommet605120
10Washer3256-14
11Self Tapping Screw32144-34
12Nut-Push32115-17
13Shroud-Lower75-8790
14Tube-Frame75-9060-03
15Washer-PM75-9130
16Knob98-7134
