> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 XL > 612/38084 > 7900001 > Engine Tecumseh Model No. HMSK80-155386U

Spare Parts Lists for Toro Roth / TORO Engine Tecumseh Model No. HMSK80-155386U




pos.decriptionspare part number
34553
35385
27878A
34330A
35373A
27880A
34331A
Ring Set, Piston (.010 Oversize)34333
34329A
34554
30699C
34036
34035
35378
Ring Set, Piston (.020 Oversize)34334

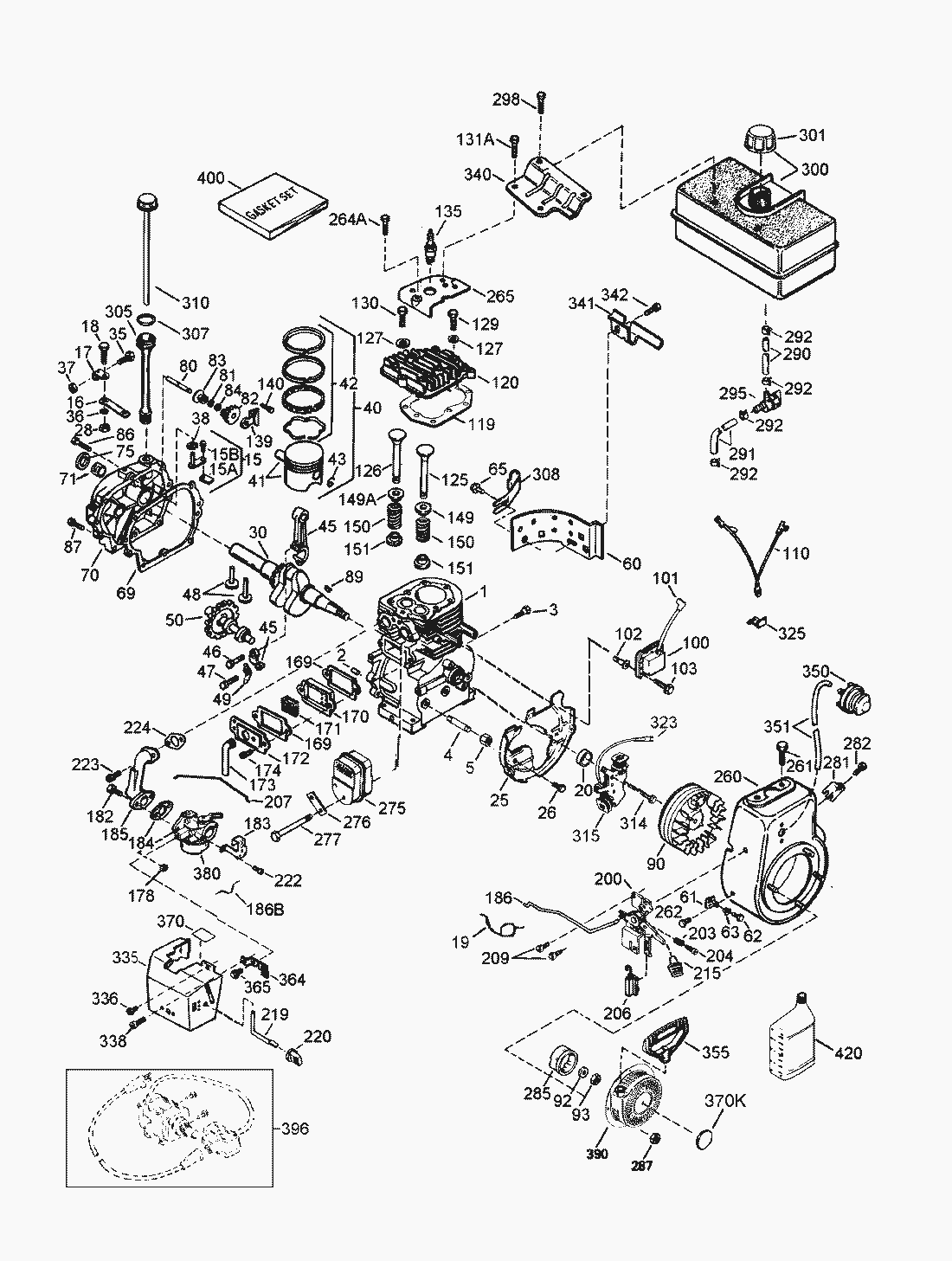

spare parts list


pos.decriptionspare part number
2Pin, Dowel27652
3Screw, Hex Hd. Shoulder650820
4Oil Drain ExtensionXXXXX
5Cap-Oil Drain30969
15Yoke, Governor30700
15Screw, Fil. Hd.650494
16Lever, Governor33454
17Clamp, Governor Lever29916
18Screw, Hex Washer Hd.650548
19Spring, Speed Control34663
20Seal, Oil35319
25Blower Housing Baffle36460
26Screw, Hex Washer Hd.650561
28Locknut, Hex30322
30Crankshaft35571A
35Screw, Hex Washer Hd.29826
36Lockwasher, E.T.29918
37Locknut, Hex29216
38Ring, Retaining29642
40Piston, Pin & Ring Assy. (Incl. Ref.34552
42Ring Set, Piston (Std.)34332
43Ring, Piston Pin Retaining27888
46Bolt-Connecting Rod650908
47Screw, Connecting Rod650882
48Lifter, Valve34034
49Dipper, Oil35374
50Camshaft (Mechanical Compression Release)35375
60Extension, Blower Housing33273A
61Bracket, Grommet Mounting34126
62Screw, Pan Hd. Taptite650760
63Grommet, Plastic28545
65Screw, Fil. Hd.650128
69Cylinder Cover Gasket35262A
70Cover, Cylinder (Incl. Ref.35376
71Bushing, Crankshaft35377
75Seal, Oil35319
80Shaft, Mechanical Governor31845
81Washer, Flat30590A
83Spool, Governor30588A
84Ring, Retaining29193
86Screw, Hex Washer Hd.650833
87Screw, Hex Washer Hd.650832
89Key, Flywheel32589
90Flywheel/Gear611093
92Washer, Lock650880
93Nut, Flywheel650881
100Solid State Assy.35135
101Cover, Spark Plug610118
102Stud, Lamination Mounting650872
103Screw, Sternantrieb T-15651007
110Wire, Ground35253
119Cylinder Head Gasket36448
120Cylinder Head36449
127Washer, Flat650691
129Screw, Special Hex Hd. Tapped650727
130Screw, Hex Flange Hd.6021A
131Screw, Hex Hd.650713
135Spark Plug, Resistor (Champion RJ-19LM)35395
139Bracket, Governor Gear33369
140Screw, Hex Washer Hd. Thread Forming650836
149Cap, Upper Valve Spring (Exhaust)27882
149Seal Ass y-Intake Valve35862
150Spring, Valve27881
151Cap, Lower Valve Spring32581
169Gasket-Breather27896A
170Body, Breather28423
171Element, Breather28424
172Cover, Valve Spring28425
173Tube-Breather35350
174Screw, Fil. Hd.650128
178Nut & Lockwasher29752
182Screw, Fil. Hd.30088A
183Bracket, Choke34587
184Gasket-Carburetor33263
185Pipe, Intake33877
186Link, Governor34667
186Spring-Choke36652
