> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 XL > 612/38084 > 7900001 > Upper Traction Assy.

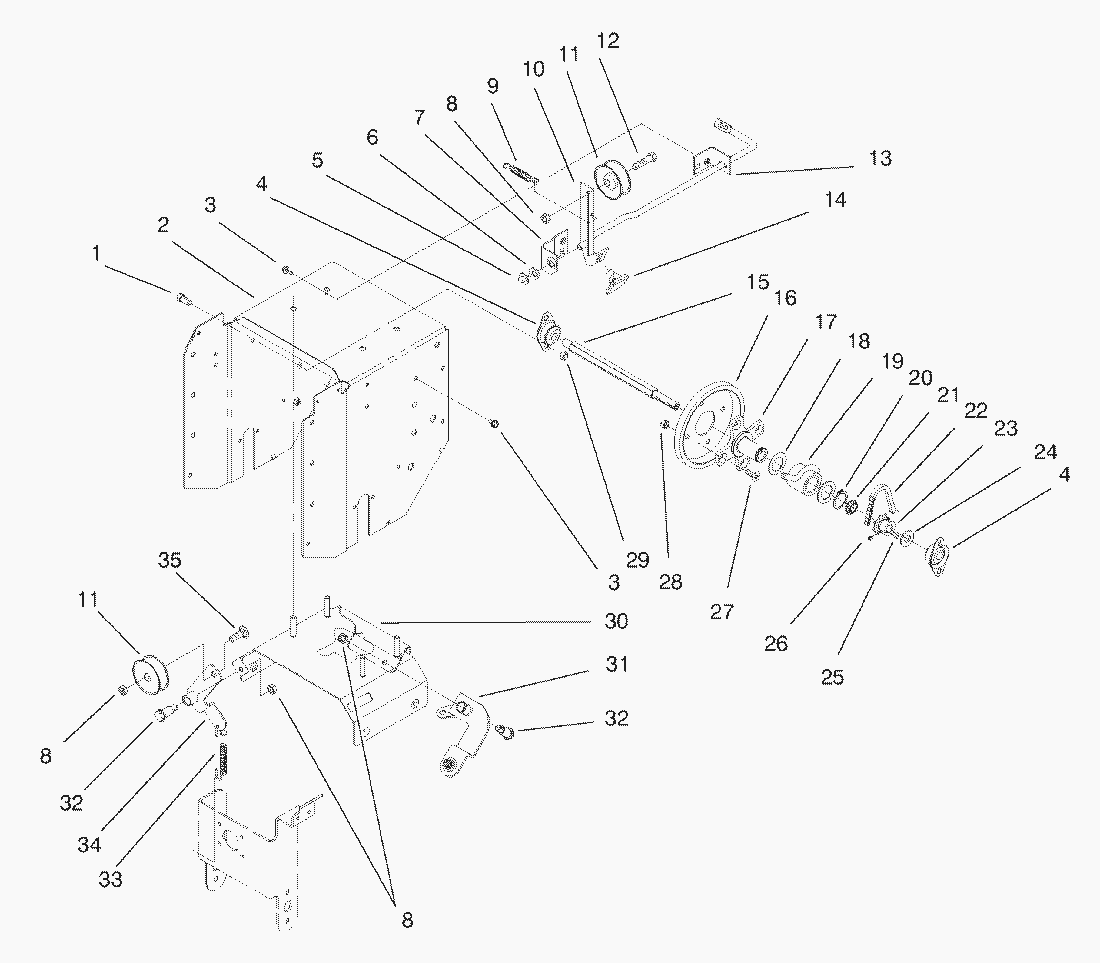

Spare Parts Lists for Toro Roth / TORO Upper Traction Assy.




spare parts list


pos.decriptionspare part number
1Hex Screw323-4
2Frame94-8852
3Screw Thread Forming32144-4
4Bearing-Triangle 1/294-8824
5Push-On Speed Nut3290-320
6Flat Washer3256-24
7Mounting-Bracket94-8829
8Nut-Lock3296-59
9Spring-Auger Disengage53-7570
10Auger Clutch Rod94-8828
11Pulley Idler3-4244
12Capscrew323-29
13Mtg-Clutch94-8841
14Pad-Brake66-8060
15Shaft-Hex94-8816
16Disc Assembly40-8170
17Hub-Traction94-8885
18Washer256-260
19ASM-Slider Ring94-8883
20Snap Ring32151-36
21Spacer Stop94-8862
22Chain20-1810
23Sprocket5-9820
24Washer-Hardened87-7270
25Key-Square94-8850
26Set Screw3245-32
27Screw Flat Hd32108-94
28Nut-Lock3296-47
29Locknut3296-39
30ASM-Brace/Stud94-8851
31ASM-Shift Arm94-8821
32Shoulder Bolt94-8859
33Spring-Extension Idler94-8870
34Idler-Bracket/Hub94-8864
35Bolt3231-28
