> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 601/38175 > 8900001 > Engine & Wheel Assy.

Spare Parts Lists for Toro Roth / TORO Engine & Wheel Assy.

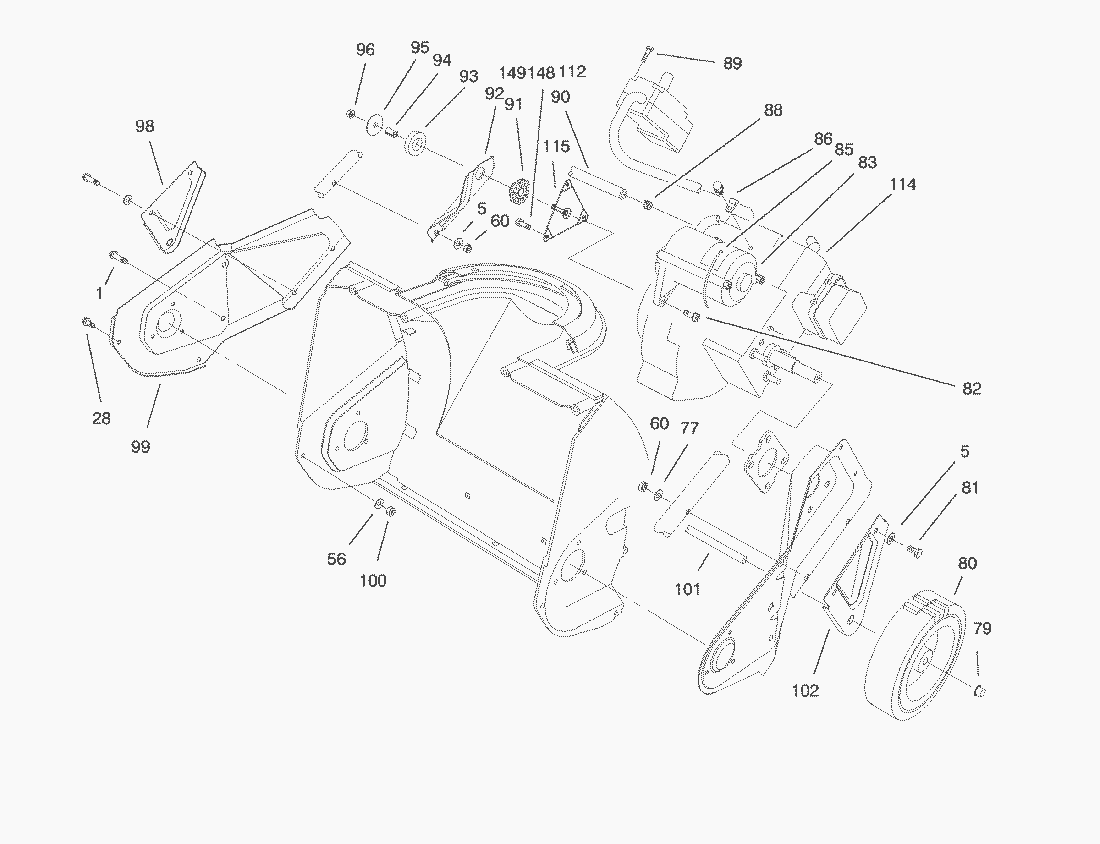

spare parts list


pos.decriptionspare part number
1Screw-Hex Washer Hd.46-8094
5Washer-Plain3256-1
28Screw-Hex Washer Hd.32105-23
56Washer3256-14
60MUTTER3296-42
77Washer3-7501
79Push-On Speed Nut3290-320
80Wheel23-3250
81Capscrew321-10
82Screw-Hex Sternantrieb80-0700
83Starter Motor Assembly77-0402
85Strap-Motor (Model No. 38175 Only)250-7
86Clamp-Cable (Model No. 38175 Only)2412-91
88Clamp-Hose2412-98
89Thread Forming Screw32144-27
90Hose-Fuel49-2483
91Bushing-Isolation75-9100
92Support-Engine75-8980
93Ring-Isolator95-1903
94Spacer80-0650
95Washer-Fender3256-58
96Locknut3296-16
98Bracket-Wheel R.H.75-8900
99Sideplate-R.H.75-8820
100Nut3296-2
101Axle27-0062
102Bracket-Wheel L.H.75-8910
112Screw-Thread Forming94-2789
114
115Bracket-& Stud Assembly92-6012
148Screw92-6031
149Lockwasher3255-10
