Spare Parts Lists for Toro Roth / TORO Starter Engine & Switch Housing

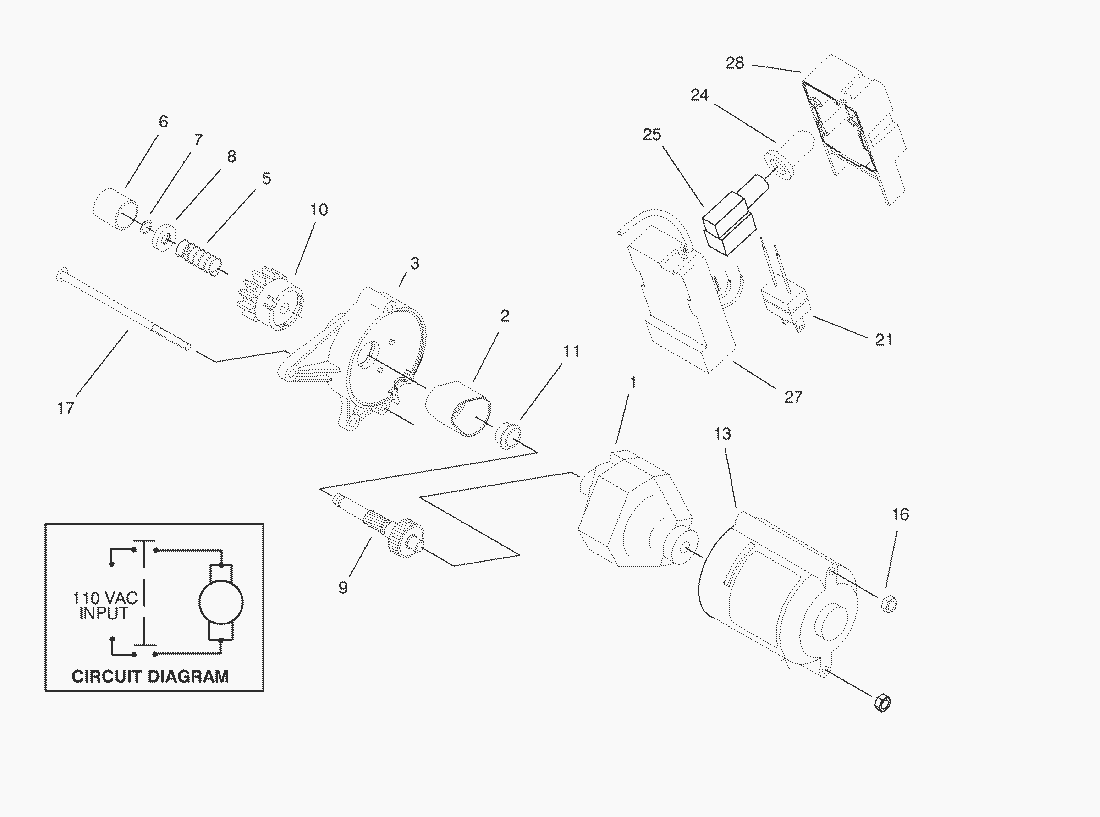

spare parts list


pos.decriptionspare part number
1Motor70-7802
2Cover-Gear70-7850
3Housing-Upper Starter70-7810
5Spring61-4690
6Cap-Pinion70-7890
7Retaining Ring61-4680
8Pinion Stop61-4670
9Shaft & Gear Assembly92-6003
10Pinion Assembly84-5240
11Bushing-upper70-7900
13Housing-Lower Starter70-7820
16Nut3296-2
17Screw-Phillips Pan Hd32144-101
21Plug-Power94-9933
24Boot-Switch36-8350
25Switch36-8340
27Base-Switch Housing80-3730
28Cap-Switch Housing80-3740
