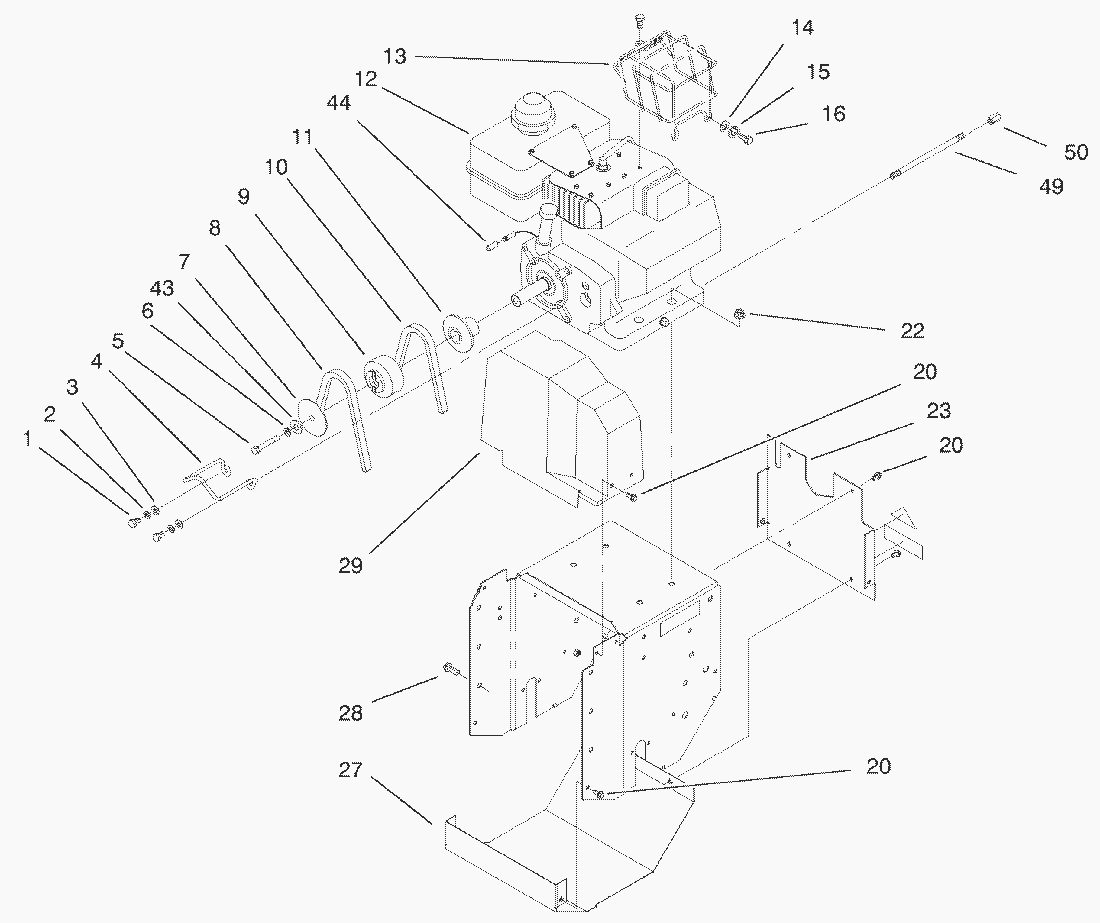

Spare Parts Lists for Toro Roth / TORO Engine and Frame Assy.

pos.	decription	spare part number
1	Capscrew	3210-3
2	Lockwasher	3253-4
3	Washer	3256-23
4	Guide-Belt	95-7917
5	Screw-Cap Hex Hd.	3212-8
6	Washer-Lock	3253-6
7	Sheave Half-Impeller	62-0940
8	Belt-Impeller	94-8803
9	Pulley-Engine	94-8849
10	Belt-Traction	94-8812
11	Sheave Half-Traction	62-0920
12
13	Guard-Muffler (Only On: 38084)	94-2763
14	Washer	3256-49
15	Washer-Lock	3253-17
16	Screw-Self Tapping	93-8048
20	Screw Thread Forming	32144-4
22	Flange Nut	32128-20
23	Plate-Back	94-8842-01
27	Cover-Lower Traction	94-8844-01
28	Screw-Wash. Hd., Tap.	32144-14
29	Cover-Belt	94-8802
43	Washer	3256-41
44	Cap-Wire	94-2782
49	Pipe Nipple	289-34
50	Pipe Cap	288-2
