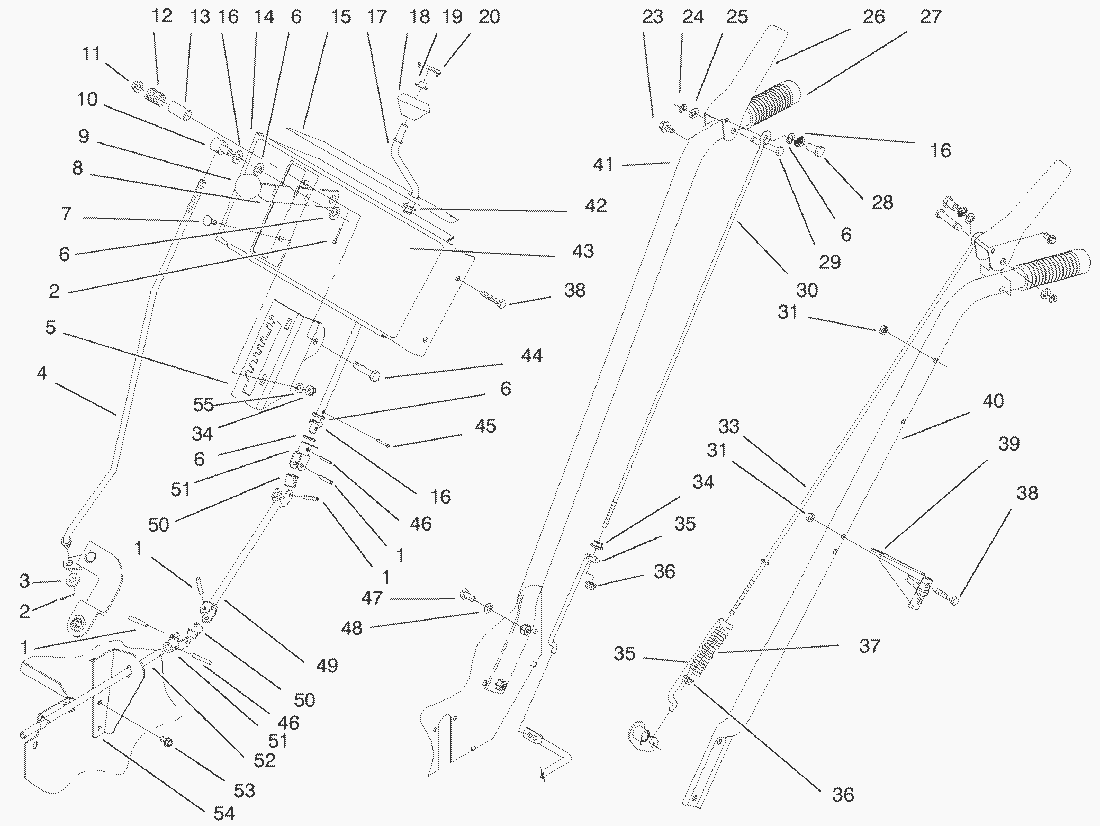

Spare Parts Lists for Toro Roth / TORO Handle and Controls Assy.

pos.	decription	spare part number
1	Pin-Roll	32121-16
2	Pin-Cotter	3272-4
3	Bushing-Idler	3256-38
4	Rod-Shift	94-9875
5	Mount-Speed Selector	99-1799-03
6	Flat Washer	3256-24
7	Screw-Carriage	3229-11
8	Speed Selector	94-8806-03
9	Knob	233-21
10	Trunnion	110656
11	Flange Nut	32128-13
12	Spring	37-9150-01
13	Spacer-Speed Selector	40-8130
14	Panel-Control Asm (Only On: 38083)	99-5966
14	Panel-Control Asm (Only On: 38084	99-5967
15	Decal-Control Panel Back (Only On: 38084)	99-5953
15	Decal-Control Panel Back (Only On: 38083)	99-5952
16	Washer-Spring	612586
17	Rod-Upper Crank	94-8810
18	Knob-Chute Control	62-1320
19	Push-On Speed Nut	3290-320
20	Cover-Knob	62-1520
23	Hex Flange Capscrew	3234-13
24	Ring-Clip	32151-73
25	Washer	3256-23
26	Handle-Control	63-3640
27	Grip-Handle	74-1360
28	Post-Linkage Mounting	47-4990
29	Pin-Control Lever	52-5600
30	Rod-Auger Engage (Upper)	94-8838
31	MUTTER	3296-42
33	Rod-Traction (Upper)	94-8837
34	Flange Locknut	32128-33
35	Rod-Lower Traction	94-8836
36	Flange Locknut	32128-32
37	Spring-Compression	38-4520
38	Hex. Hd. Capscrew	321-9
39	Bracket-Chute Crank Upper	94-8839-03
40	Handle-Left	95-2695-03
41	Handle-Right	94-8804-03
