back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR 2000
>
618/38186
>
5900001
>

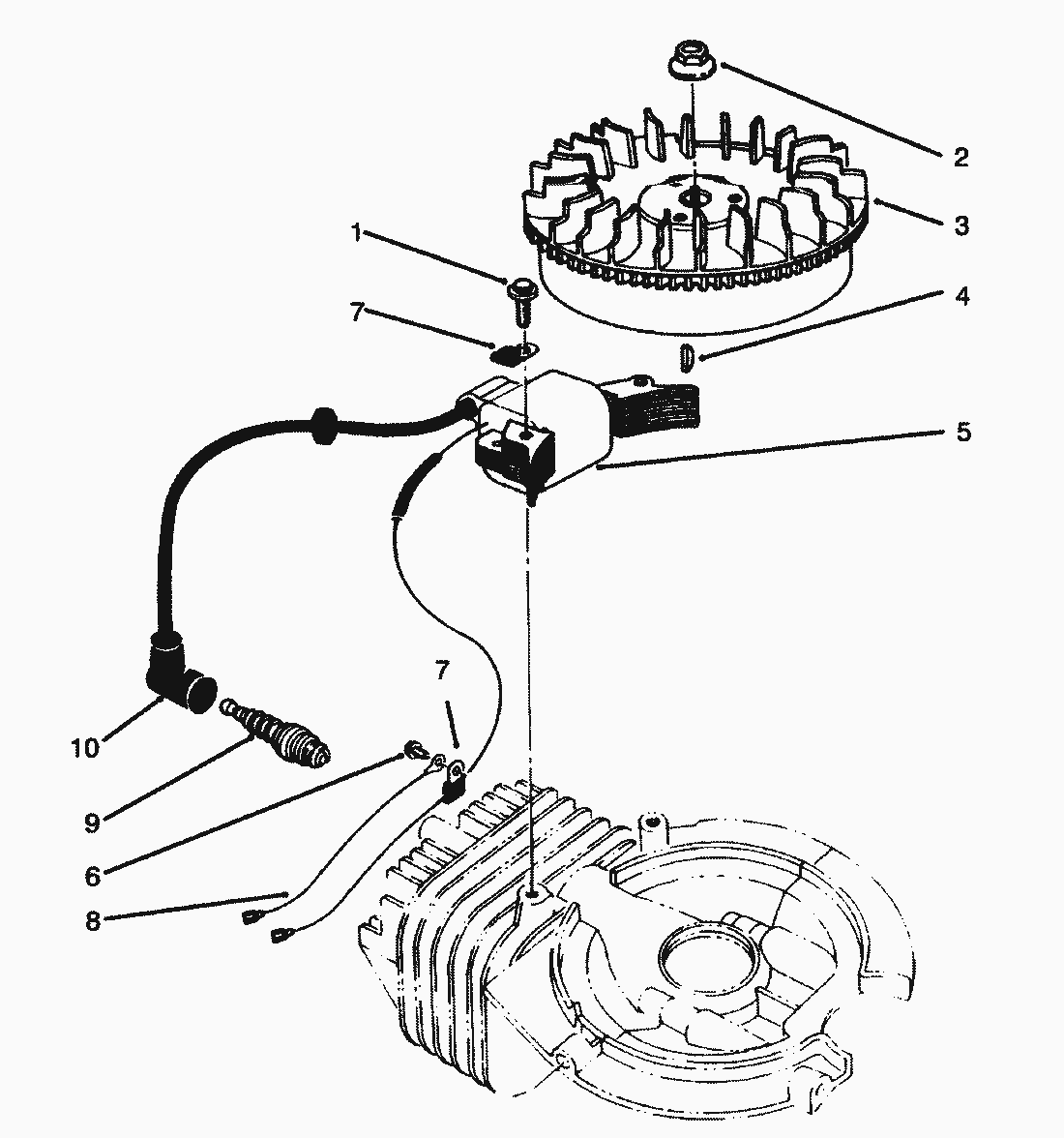

Flywheel & Ignition Assy. (Engine Model 47PS5-5)
Spare Parts Lists for Toro Roth / TORO Flywheel & Ignition Assy. (Engine Model 47PS5-5)
pos.
decription
spare part number
1
Socket Hd. Capscrew
81-5710
2
MUTTER
81-1330
3
Flywheel
81-4620
4
KEIL
81-2370
5
Coil-Magneto
94-8891
6
SCHRAUBE
53-1340
7
KLEMME
81-1480
8
Wire-Ground
81-2860
9
ZUENDKERZE
50-1170
10
ZUENDKERZENSTECKER
81-1500
SCHWUNGRADABZIEHER TORO
41-7650
