> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38186 > 5900001 > Recoil Starter Assy. (Engine Model 47PS5-5)

Spare Parts Lists for Toro Roth / TORO Recoil Starter Assy. (Engine Model 47PS5-5)

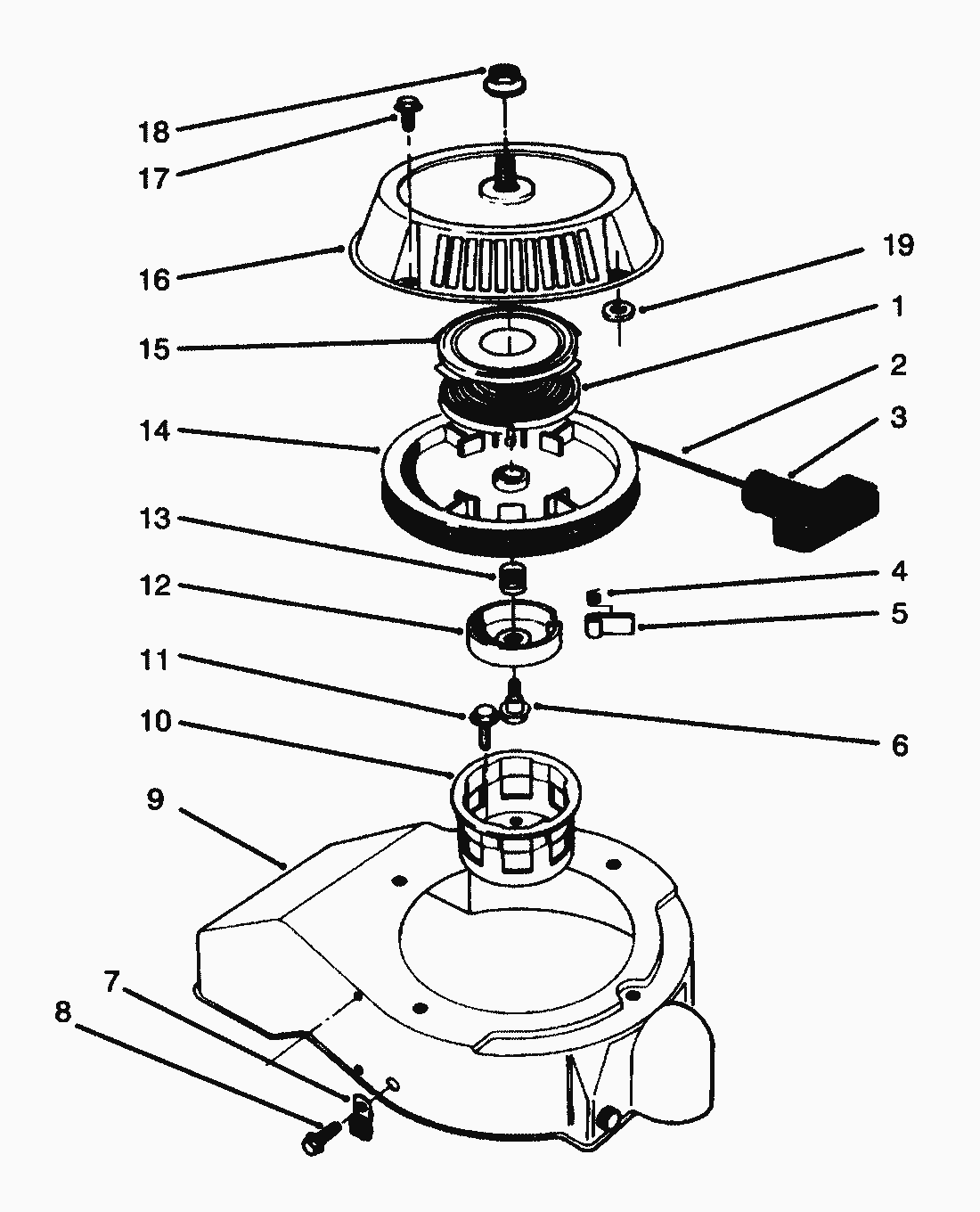

spare parts list


pos.decriptionspare part number
1STARTERFEDER INCL.HALTER81-2300
2STARTERSEIL81-1270
3STARTERGRIFF M.SEILKLEMME81-1630
4FEDER81-1220
5MITNEHMER81-1230
6SCHRAUBE81-1260
7Clamp-Magneto Wire55-3070
8SCHRAUBE53-1340
9Shroud-Blower81-4610
10STARTERGLOCKE81-1290
11SCHRAUBE81-1300
12MITNEHMERGEHAEUSE81-1250
13FEDER81-1240
14SEILSCHEIBE81-1210
15
16Case-Recoil81-0290
17Bolt81-0390
18Nut-Hex81-0300
RUECKLAUFSTARTER KPL.81-0280
19Spacer55-9620
STARTERFEDER INCL.HALTER81-2300
