> Roth / TORO > Hand operated > Snowthrower > Two stage > 624 PowerShift > 627/38505 > 8000001 > Fuel System & Muffler Assy.

Spare Parts Lists for Toro Roth / TORO Fuel System & Muffler Assy.




pos.decriptionspare part number
65-1500
65-1100
65-1160

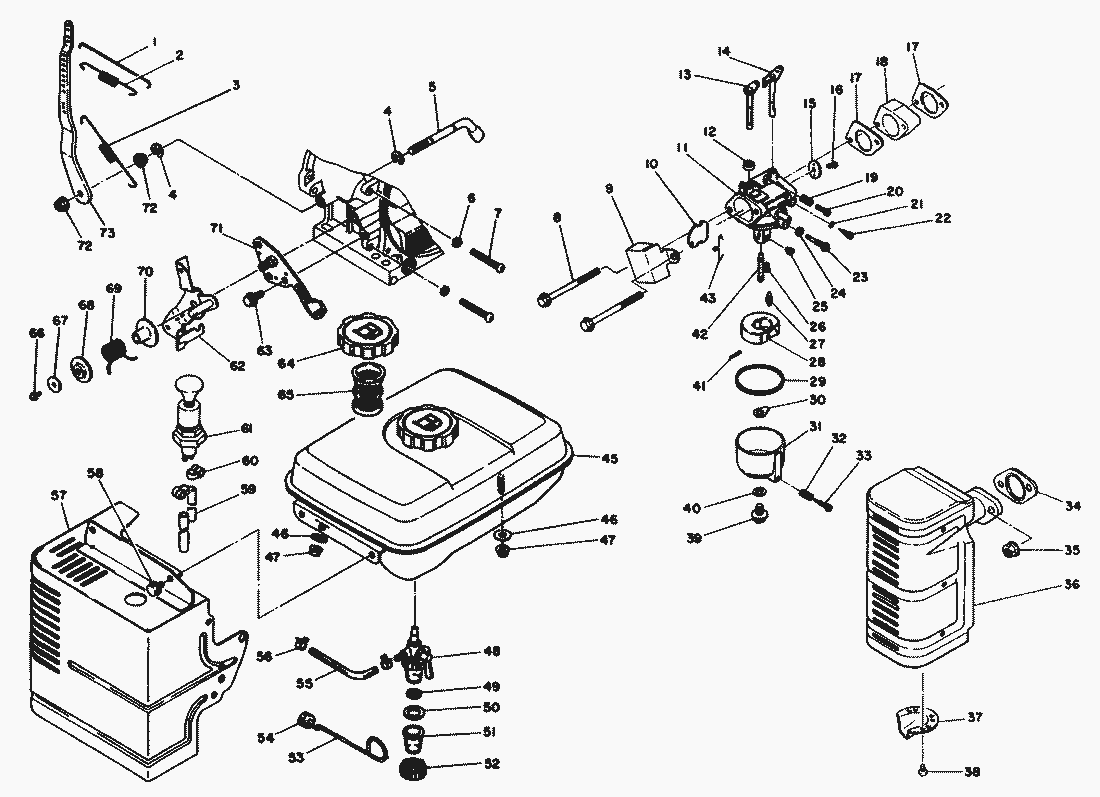

spare parts list


pos.decriptionspare part number
1Rod-Governor65-0870
2Spring-Rod65-0880
3Spring-Governor65-0900
4Ring-Snap65-0860
5Shaft-Governor65-0850
6Nut65-1001
7Screw-Machine Pan Hd.65-1020
8Bolt-Flange65-1370
9Cover65-1380
10Valve-Choke65-1270
12Cap65-1250
13Shaft-Choke65-1240
14Shaft-Throttle65-1110
15Valve-Throttle65-1120
16Screw-Throttle Valve65-1130
17Gasket-Carburetor65-1080
18Insulator-Carburetor65-1090
19Spring-Idle Stop65-1140
20Screw-Idle Stop65-1150
21Seal-O-Ring65-1170
23Jet-Slow65-1180
24Gasket65-1190
25Jet-Main65-1200
26Screw65-1210
27Valve65-1290
28Float65-1300
29Gasket-Float Bowl65-1320
30Gasket65-1330
31Bowl-Float (Incl. Ref.65-1340
32Spring65-1220
33Screw65-1230
34Gasket-Exhaust65-1480
35Nut-Flange Lock54-4670
37Pipe-Tail65-1510
38Screw65-1520
39Plug-Float Bowl65-1360
40Gasket-Plug65-1350
41Pin-Float65-1310
