> Roth / TORO > Hand operated > Snowthrower > Two stage > 624 PowerShift > 627/38505 > 8000001 > Housing & Chute Assy.

Spare Parts Lists for Toro Roth / TORO Housing & Chute Assy.

pos.	decription	spare part number
		62-0720

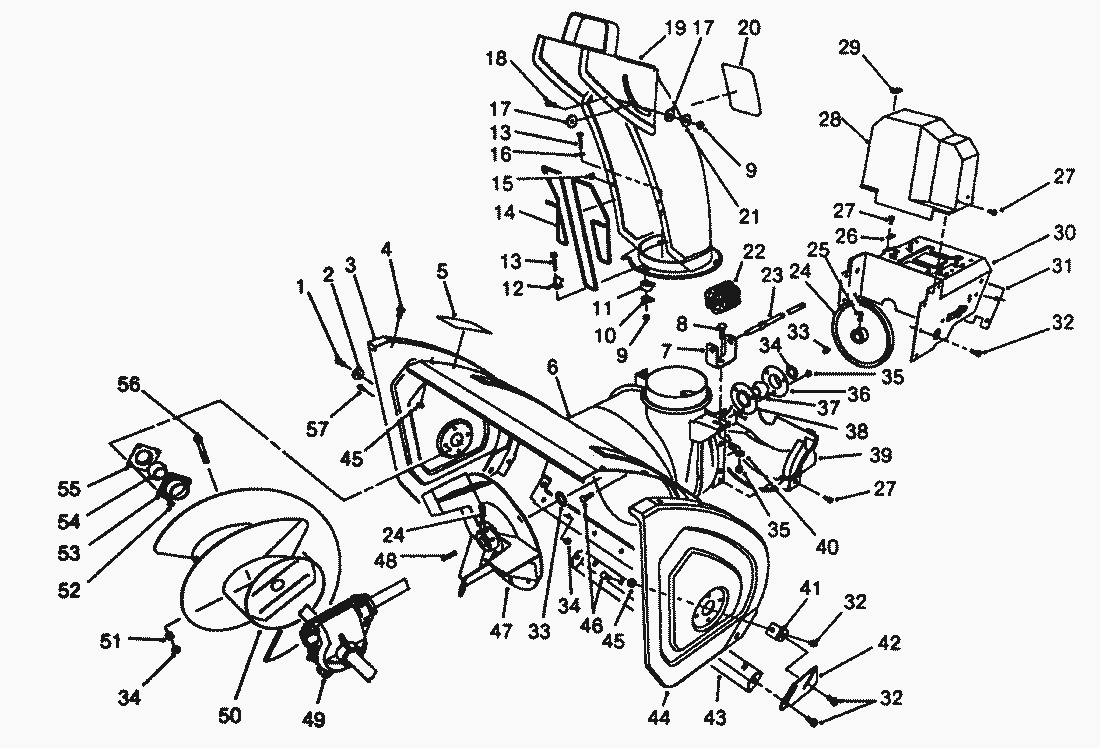

spare parts list

pos.	decription	spare part number
1	Capscrew	323-8
2	Flat Washer	3-0750
3	Plate-Side R.H.	62-0600
4	Screw-Hex Flange Hd.	3234-28
5	Decal-Auger Warning	53-7670
7	Bracket-Gear	63-2180
8	Carriage Bolt	3230-2
9	Nut	3296-2
10	Plate-Chute Retainer	63-2670
11	Retainer-Chute	62-1430
12	Bracket-Chute Guard	63-3130
13	Screw-Machine	3274-13
14	Guard-Chute	63-3020
15	Pushnuts	3290-326
16	Washer	3256-14
17	Washer-Plastic	63-2900
18	Screw	32122-32
19	Chute Assembly	62-0840
20	Decal-Danger Chute (Model No. 38500)	63-3740
	Decal-Discharge	53-7660
21	Washer	3256-61
22	Gear-Worm	62-0820
23	Rod-Chute Gear	62-1720
24	Pulley-Impeller	62-1300
25	Set Screw	3242-4
26	Retainer-Cable	63-2300
27	Screw Thread Forming	32144-4
28	Cover-Belt (Upper)	63-2080
29	Cover-Cable	63-3290
30	Frame-Engine	62-0740
31	Cover-Engine Frame	62-1440
32	Screw-Hex. Washer Hd.	3234-7
33	Key Woodruff	3257-23
34	Thrust Washer	252-80
35	MUTTER	3296-29
36	Bearing Flange Rear	26-6120
37	Bearing-Impeller	63-3450
38	Bearing Flange Front	26-6110
39	Cover-Belt (Lower)	62-1400
40	Washer	3256-23
41	Bracket-Skid	62-1240
42	Plate-Skid L.H.	62-0980
	Plate-Skid R.H.	62-0990
43	Blade-Scraper	62-0670
44	Plate-Side L.H.	62-0590
45	Nut-Lock	3296-47
46	Screw-Carriage	3230-23
47	Impeller	63-2580
48	Key-Impeller	6-8590
49	Auger Gearbox Assembly	62-0440
50	Auger-R.H.	63-2750
	Auger-L.H.	63-2760
51	Spacer Auger Hub	25-5090
52	Lock Nut	32152-4
53	Flange Bearing Front	20-0990
54	Bearing	20-0980
55	Flange Bearing Rear	20-1000
56	Bolt Auger	17-7030
57	SCHRAUBE	321-3
