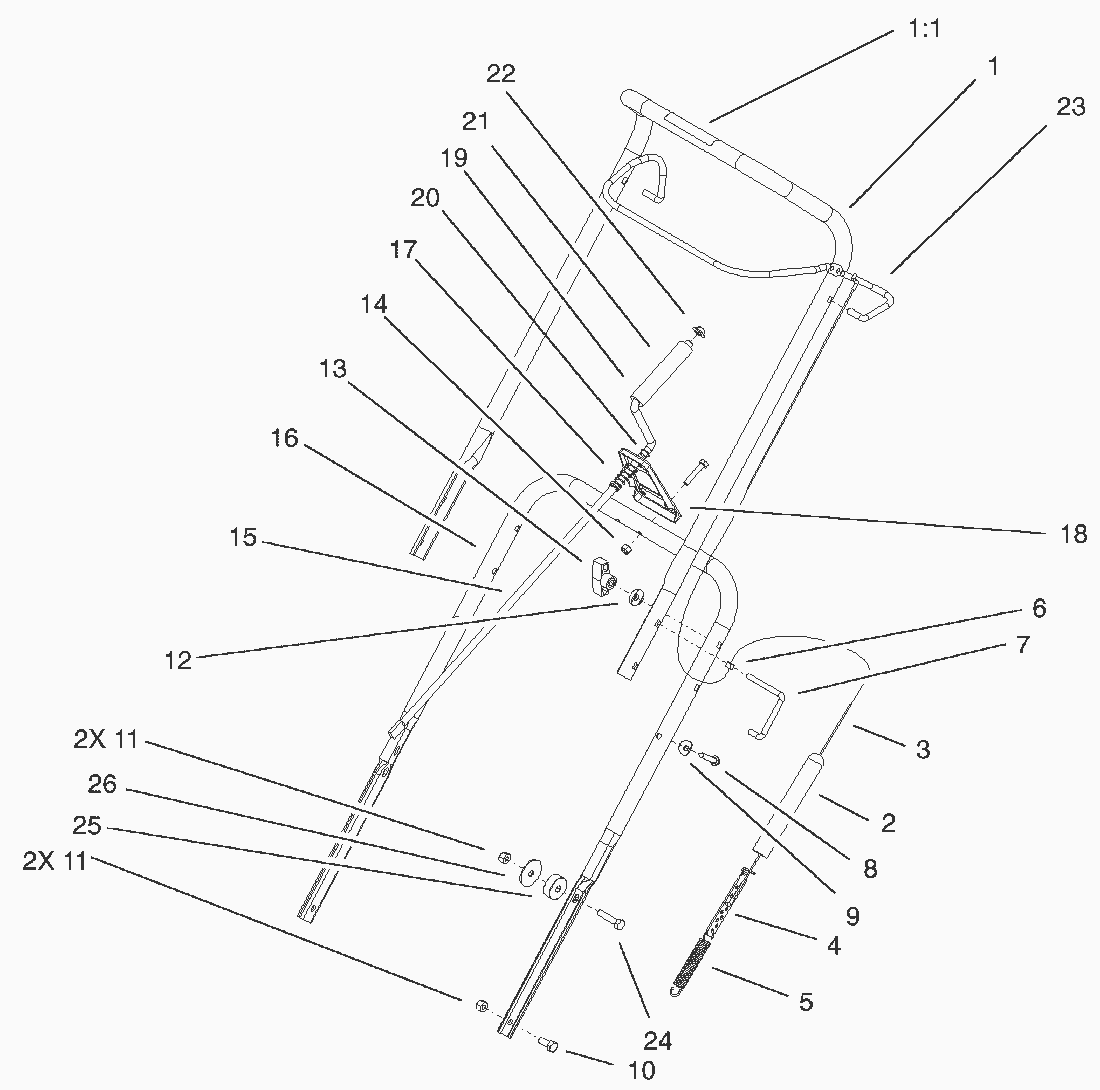

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Upper Handle Assembly (Incl. ref.	95-2669
1	ASM-Handle (Model 38438, 38433)	98-2272
11	Decal-Rotor Drive	94-2577
2	Cover-Spring	55-9390
3	Cable-Clutch	55-9322
4	Adjuster-Clutch Cable	55-9380
5	Spring-Extension	55-9270
6	Clamp-R	2412-112
7	Lock-Handle	98-2266
8	Machine Screw-Hex Hd.	61-8640
9	Washer	3-7501
10	Capscrew	322-3
11	MUTTER	3296-29
12	Washer-PM	75-9130
13	Knob	98-7134
14	MUTTER	3296-42
15	Rod-Chute Crank	55-9140
16	Handle-Lower	55-9121-03
17	Spring-Compression	104-8664
18	Support-Crank	55-9090-03
19	Screw-Hex. Hd.	321-13
20	Nyliner	256-249
21	Chute Control Grip	40-8230
22	Push-On Speed Nut	3290-320
23	Bail-control	100-5473-03
24	Screw-HH	322-17
25	Spacer-Lower Handle	105-1961
26	Washer	3256-68
