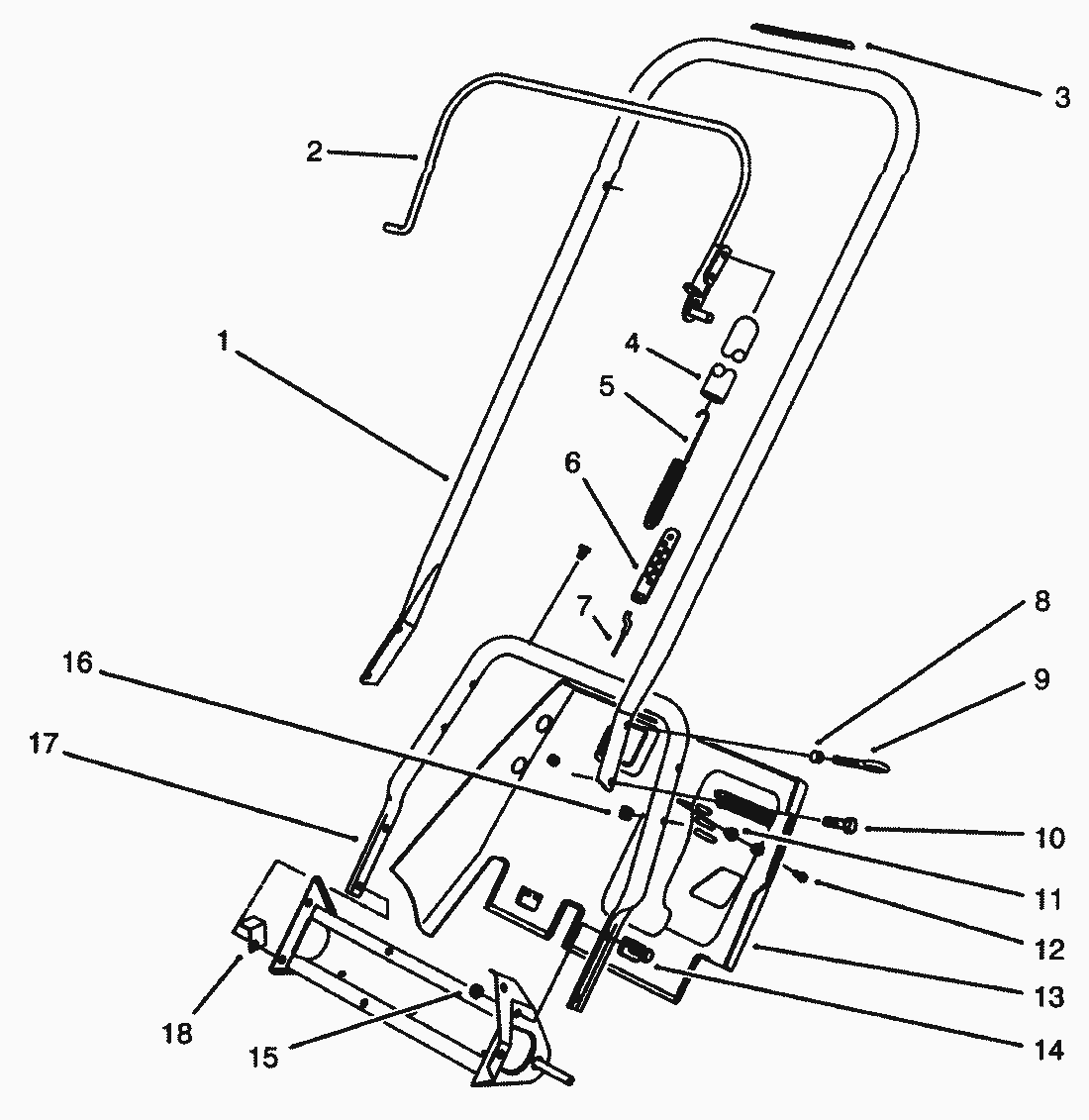

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Handle-Upper	71-5090
2	Bail Assembly	71-5120
3	Decal-Rotor Drive	66-6870
4	Cover-Spring	71-5530
5	Spring-Extension	71-5480
6	Adjuster-Cable	71-5330
7	Cable-Clutch	55-9322
8	Spacer	55-9370
9	Bolt-Eye	3299-1
10	Screw-Slotted Hex Hd.	32105-11
11	Nut-Push	3290-486
12	Screw-Slotted Flange Hd.	32144-53
13	Shroud-Lower (Model 38190 Only)	71-5040
14	Capscrew	322-3
15	MUTTER	3296-29
16	Nut-Retained	3290-225
17	Handle-Lower	71-5370
18	Bracket-Shroud	71-5600
